32. Case 28: The Corridor Lights#

32.1. Introduction#

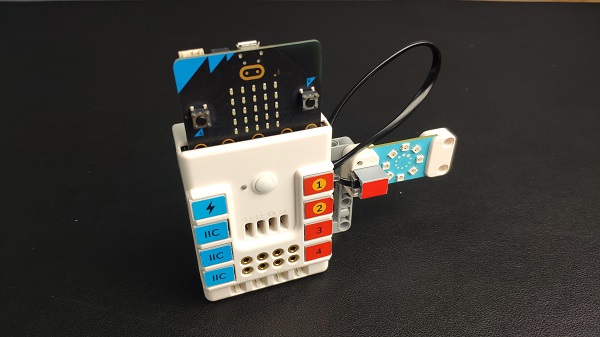

This is a smart corridor light, which judges whether it needs to be turned on by the sound level and light level. Only when the light is dim and the sound of people walking is detected, the light will be automatically turned on, which saves more energy.

../../_images/case_28_01.png

32.2. Quick Start#

Materials Required#

Nezha expansion board × 1

micro:bit V2 × 1

Rainbow LED ring × 1

Bricks × n

Tips: You may need to purchase Nezha Inventor’s Kit and Purchase Interactive coding accessories pack here. if you want all the above components.

Connection Diagram#

Inset the micro:bit, and connect the rainbow led ring to J1 port on Nezha expansion board.

../../_images/case_28_03.png

Assembly Video#

Video link: https://youtu.be/9LZHzZaXf8Y

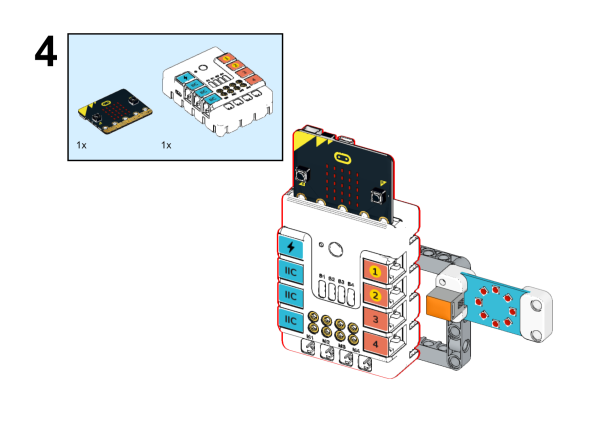

Assembly Steps#

../../_images/case_step_28_01.png

../../_images/case_step_28_02.png

../../_images/case_step_28_03.png

../../_images/case_step_28_04.png

../../_images/case_step_28_05.png

32.3. MakeCode Programming#

Step 1#

Click “Advanced” in the MakeCode drawer to see more choices.

../../_images/case_01_10.png

We need to add a package for programming. Click “Extensions” in the bottom of the drawer and search with “nezha” to download it.

../../_images/case_03_09.png

Note: If you met a tip indicating the codebase might be deleted due to incompatibility, you may continue as the tips say or create a new project in the menu.

Step 2#

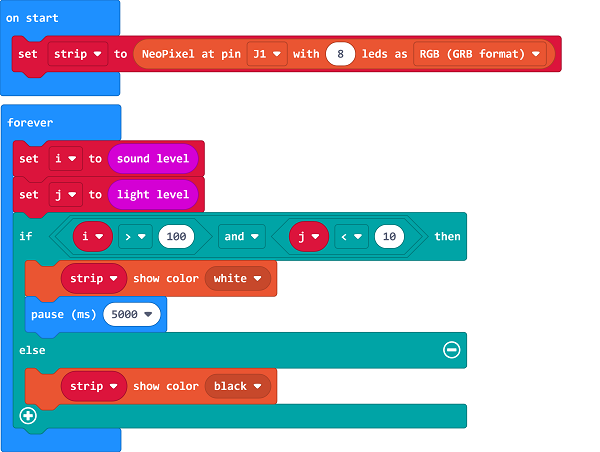

Programme as the pictures indicate#

../../_images/case_26_10.png

Reference#

Link: https://makecode.microbit.org/_7xqU5vTRwdvb

You may download it directly below:

Result#

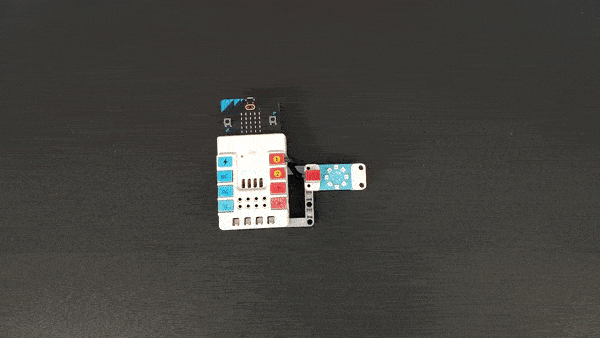

After powering on, the rainbow led ring lights on/off by its ambient light and sound level.

../../_images/case-gif-28.gif
