The idea of projecting a virtual keyboard using a laser is very cool. But currently the existing product is a little bit expensive.Here, the design we introduce is  open source and low-cost , and if you are interested,  you can DIY your own laser projection keyboard :) The design supports multiple key inputs (up to 10 keys) and works just like a normal keyboard on Windows and MacOS.



lazer keyboard



Mechanism

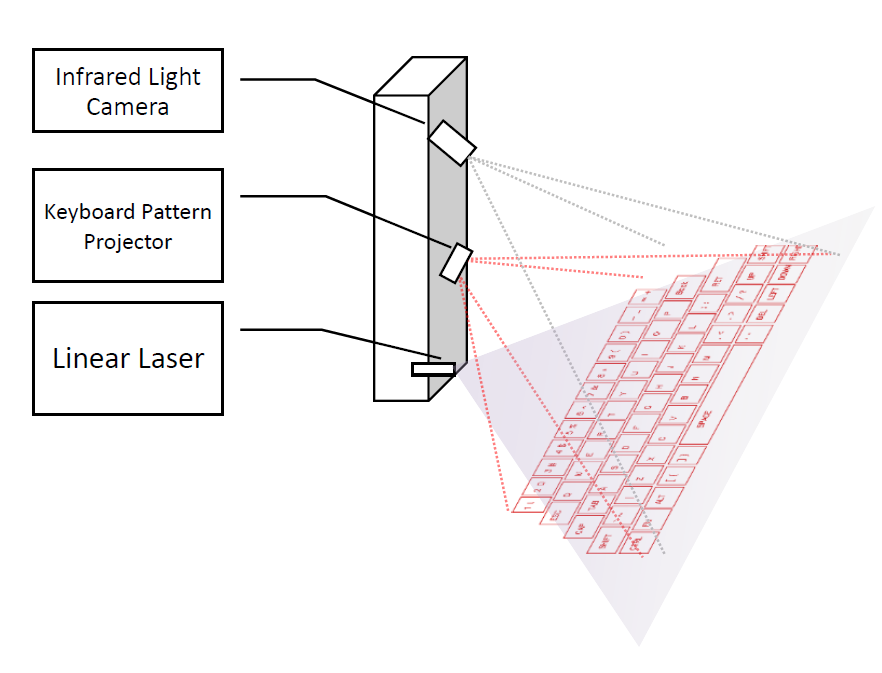

The  laser projection keyboard relies on Computer Vision processing algoritm to work. A  camera-laser system is used to perform distance measuring tasks. The keyboard hardware is very simple, only three parts are required: one camera, one laser to project the keyboard pattern and a line laser for key input detection. That’s the secret of low cost. :)

lazer keyboard

When a user presses a “virtual key”, the reflected laser light will be captured by the camera. And a signal processing software installed on the PC/Mac performs all the critical jobs: recognizing the user’s finger top , performing distance measurement and mapping the position of the user finger top to the related key value

http://vimeo.com/65279983

How to build one?

The easiest way is to order a DIY kit. The kit includes all the stuffs you will need to build a laser projection keyboard.  Also it will provide you a detailed guide to help you during the assembly process.
