3. Ring:bit Car Assembly Step#

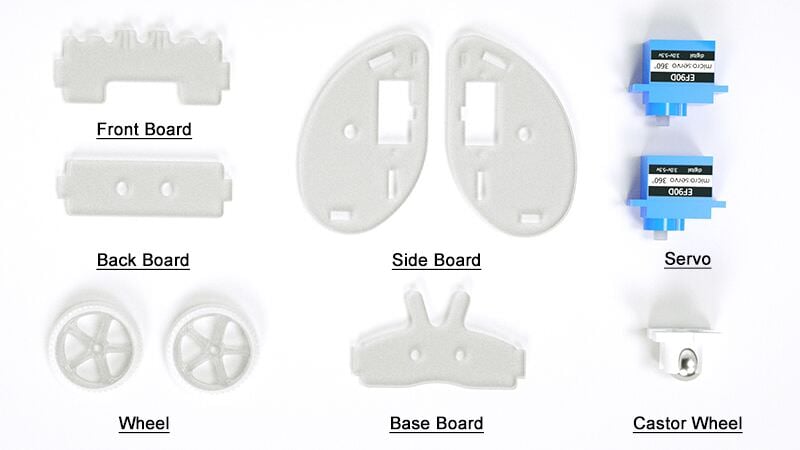

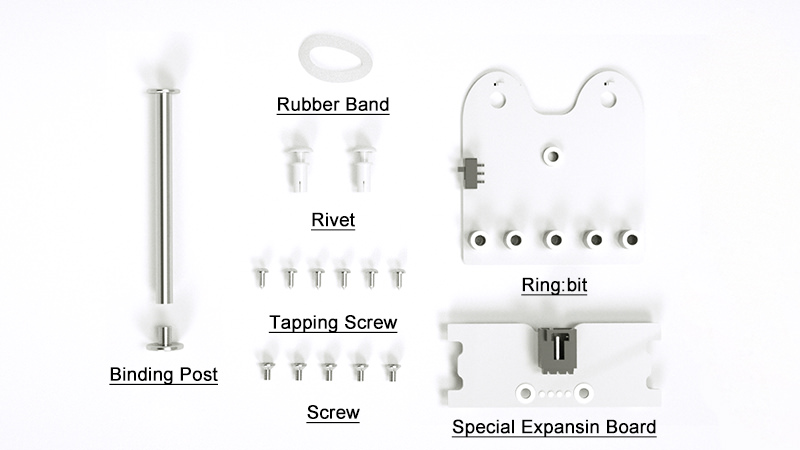

3.1. Ring:bit car 2 Components Lists#

../../_images/1fAiTvC.jpg

../../_images/jTaUtaM.jpg

3.2. Assembly Step#

Step-1#

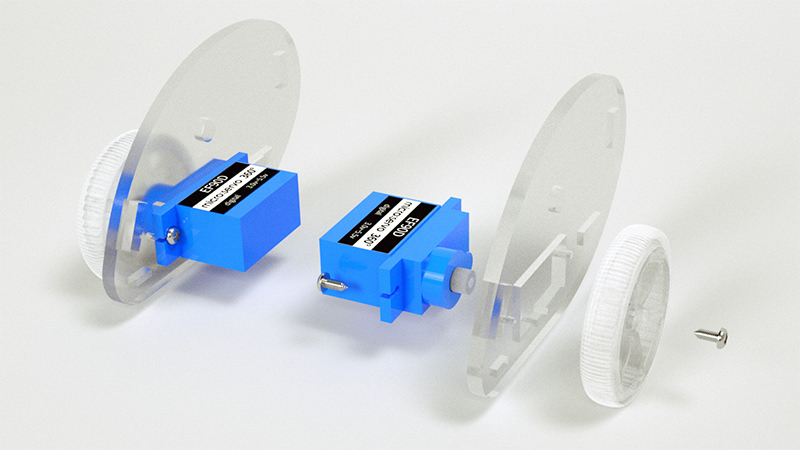

  • Fisrt, use the tapping screw to fix the servo to the side board.(as below pictures)

  • Then, use the screw to fix the wheel to the servo.(as below pictures)

../../_images/W3VGpPG.jpg

Step-2#

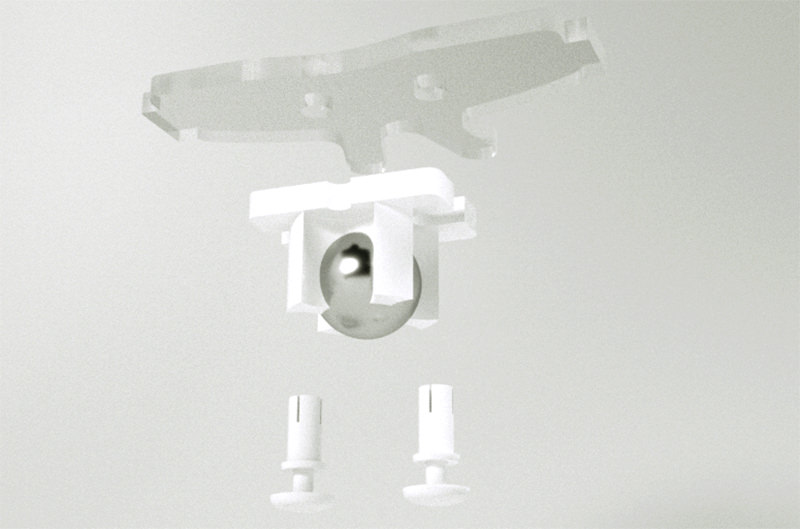

  • Use the rivet to install the castor wheel on the chassis.

../../_images/RCHMJNv.jpg

Step-3#

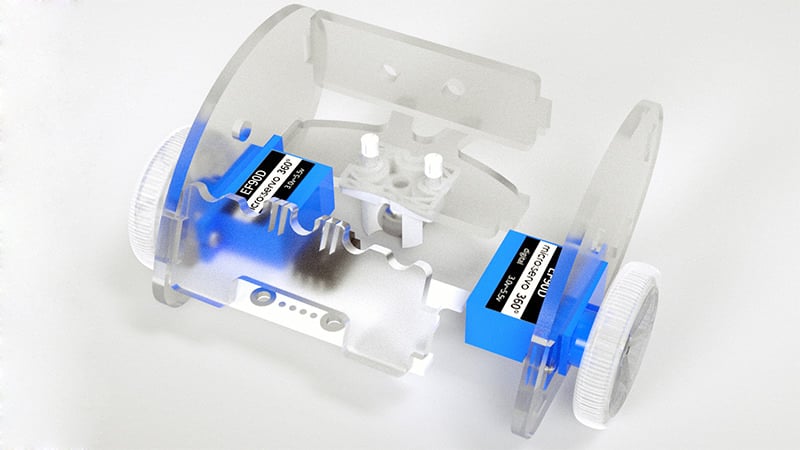

  • Assemble the front board, the back board and the base board to the side board as below picture.

../../_images/Kkk1Bcd.jpg

Step-4#

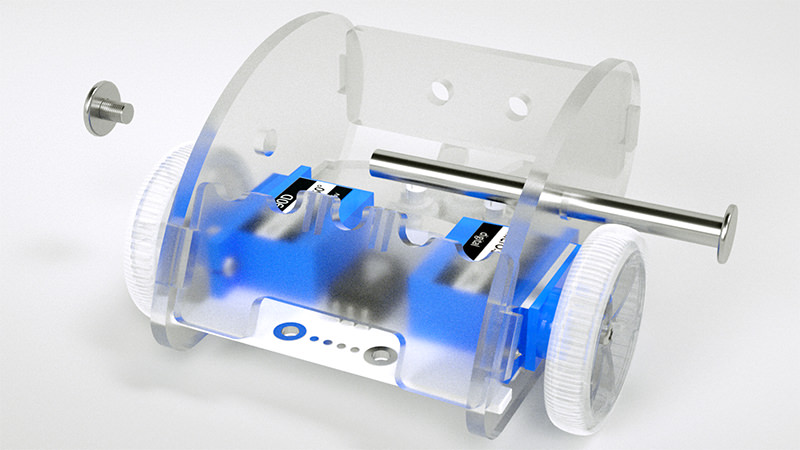

  • Use the binding post to fix all installed components.

../../_images/xEpdqfP.jpg

Step-5#

  • Use the screw to fix the ring:bit to the micro:bit board.

../../_images/RAxSlWq.jpg

Step-6#

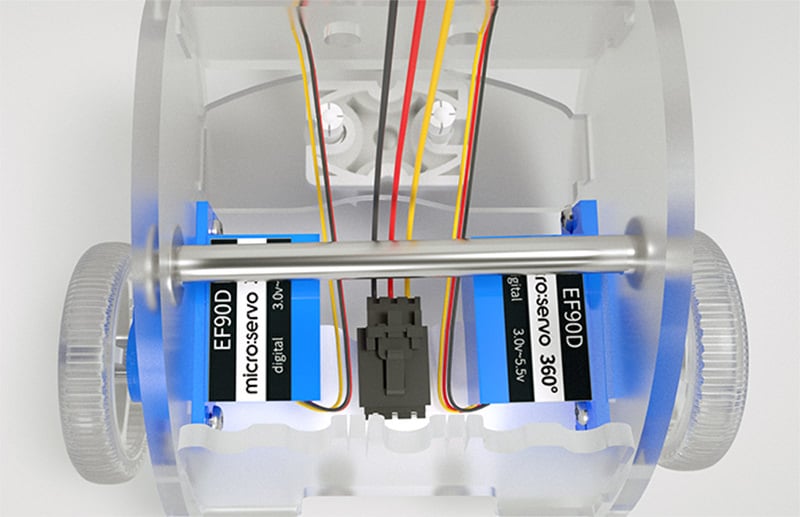

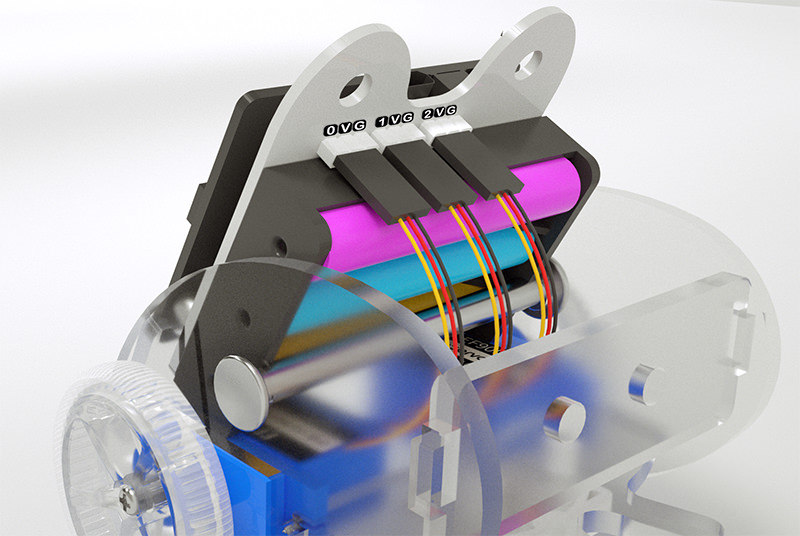

  • Connecting wire as below pictures.

../../_images/UwEHU4l.jpg ../../_images/Jepmq6y.jpg

Completed#

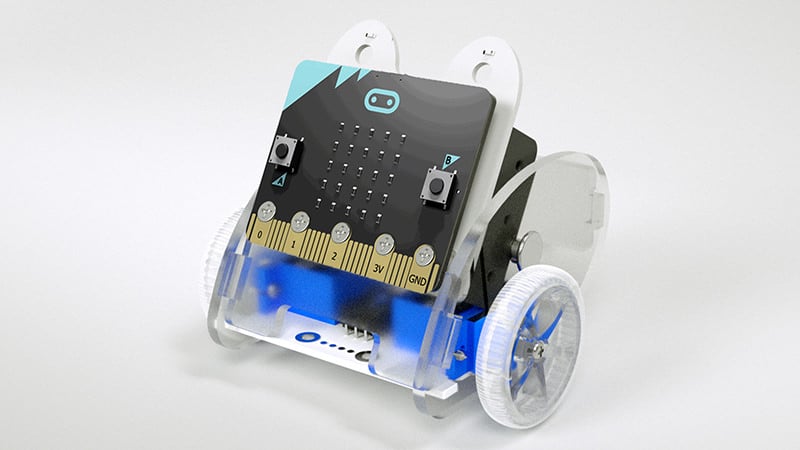

  • Fix the assembled ring:bit to the front board.

../../_images/FCt8S8c.jpg
