1. How to Make A micro:bit Manipulator with Straws#

../../_images/straw-manipulator-01.gif

1.2. Introduction#

Hands are one of our most important and mostly used parts in daliy life, there are many artworks coming from the idea of simulating hands because of its skillful characteristic and good appearance, this blog also simulates the hands.

The materials we used in this blog are micro:bit and Wukong Breakout board, the fingers are able to stretch with 180 degrees servos.

1.3. Wukong Breakout board#

../../_images/straw-manipulator-03.png

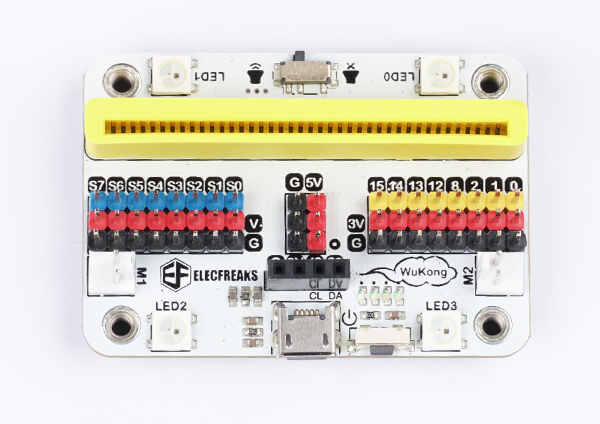

Wukong is a high integrated breakout board with multiple functions based on micro:bit, which has a similar size with the micro:bit with buzzer, servo and motor drivers on board.With a built-in 400mAh Li-ion battery pack and the on-board power controlling system, it supports fast charge with only 20 minutes for full filling that can operate for more than 40 minutes a time.The base board designs with standard 7x5 square bricks that can adapt perfectly to Lego.

For more info, please visit: Wukong Breakout board

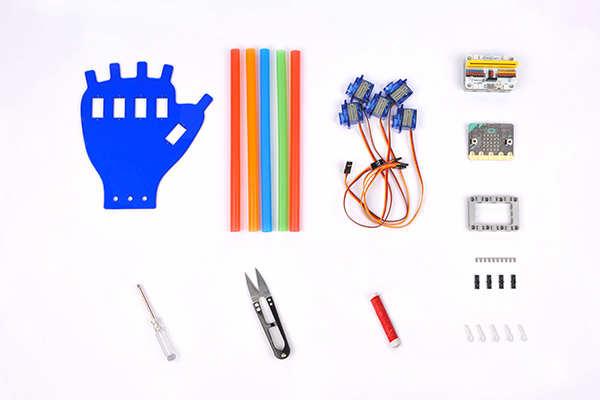

1.4. Materials Required#

../../_images/straw-manipulator-08.png

Materials List

../../_images/straw-manipulator-04.png

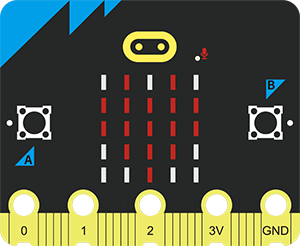

BBC micro:bit × 1

../../_images/straw-manipulator-02.png

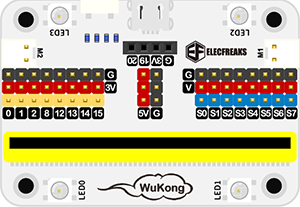

Wukong Breakout board × 1

../../_images/straw-manipulator-05.png

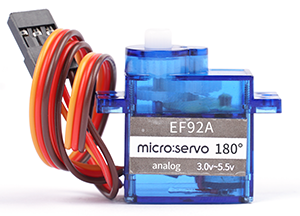

180 degrees servos × 5

../../_images/straw-manipulator-06.png

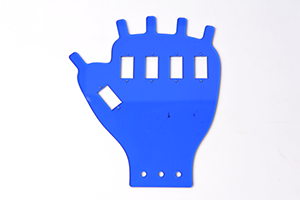

The acrylic board × 1

../../_images/straw-manipulator-07.png

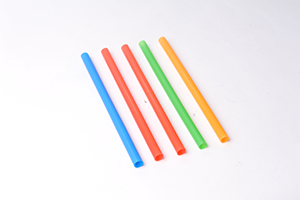

Straws × 5

1.5. Assembly#

Step 1#

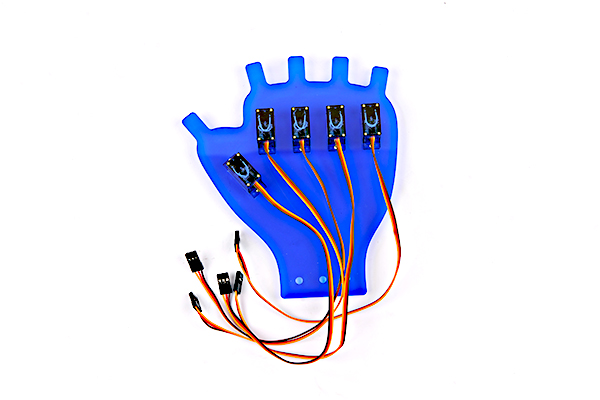

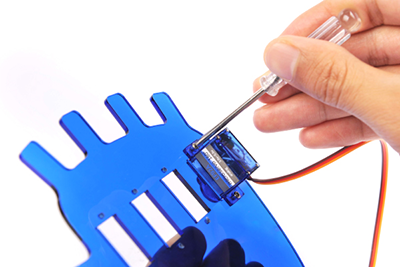

Fix the servos(note the direction of the cable end should be put downward) with the acrylic board with the screws as the picture indicates:

../../_images/straw-manipulator-09-1.png

../../_images/straw-manipulator-09.png

Step 2#

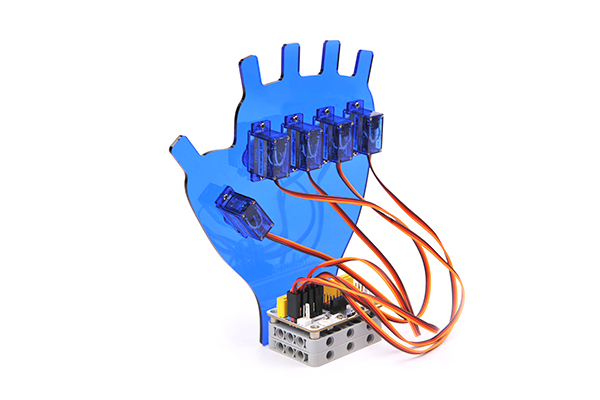

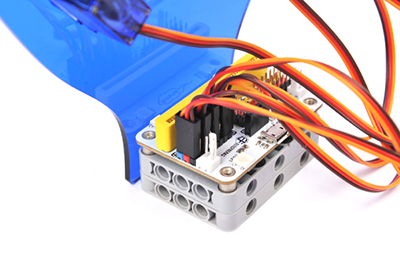

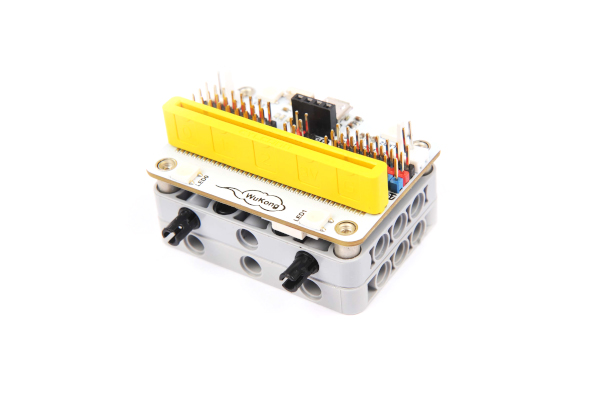

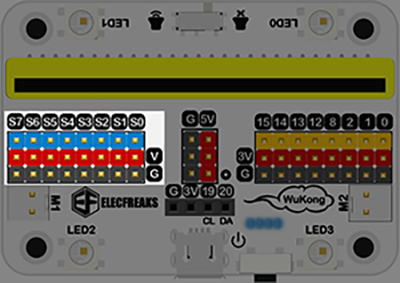

Fix Wukong breakout board with the acrylic board at the bottom with shafts as the picture indicates, connect the cables of the servos with the breakout board, note to connect in the correct way(Brown cable for black pin, red cable for red pin and the yellow cable for blue pin). You can also connect any five of the servos connections, only note to program them in the correct sequence(The corespondent sequece from S0 to S7 are counter to the fingers as the chart indicates below).

Connections Fingers
S0 Thumb
S1 Forefinger
S3 Middle finger
S5 Ring finger
S7 Little finger

../../_images/straw-manipulator-10-2.png

../../_images/straw-manipulator-10.png

../../_images/straw-manipulator-10-1.png

../../_images/straw-manipulator-11.png

Step 3#

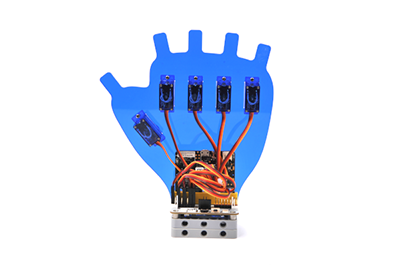

Connect the micro:bit with the breakout board

../../_images/straw-manipulator-12.png

Step 4#

Install the white plates on the servos and adjust the directions of them as the same with the fingers.

../../_images/straw-manipulator-14-1.png

../../_images/straw-manipulator-14-2.png

../../_images/straw-manipulator-14.png

Step 5#

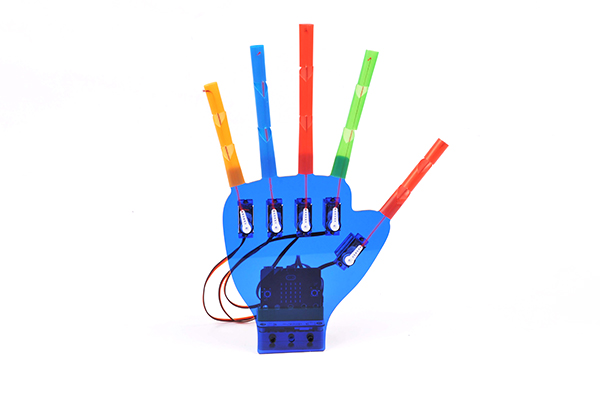

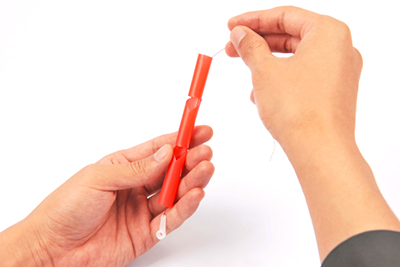

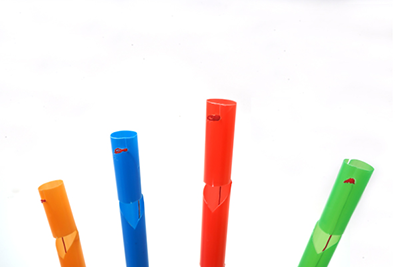

Fasten the thread with the top hole on the white plate and get it though the tube, then fasten ond of the ends of the straw with the equivalent “fingers” positions on the acrylic board. Fix the white plates with the servos and fasten the top end of the thread with the crack on the top part of the straws as the pictures describe below:

../../_images/straw-manipulator-14-3.png

../../_images/straw-manipulator-14-4.png

../../_images/straw-manipulator-15.png

../../_images/straw-manipulator-16.png

Notice: the end connecting to the plates are all tied with the fist hole on the plates and the other ends are all fastened as a knot to be fixed in the cracks*.

Step 6#

Connect the micro:bit with the computer.

1.6. Program#

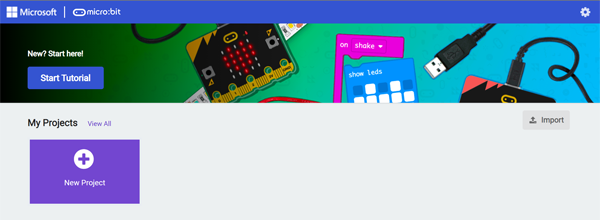

Program in Makecode and for more details about Wukong, please see them below:

../../_images/straw-manipulator-18.png

Step 1#

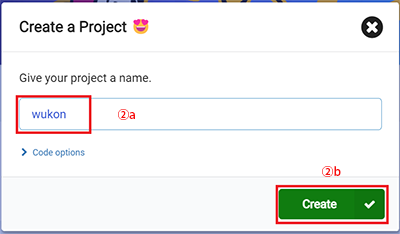

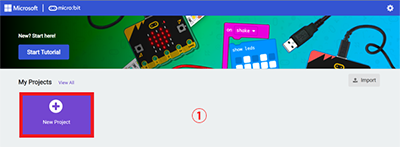

Create New Project and name it, click “Create” to enter the program page.

../../_images/straw-manipulator-21.png

../../_images/straw-manipulator-22.png

Step 2#

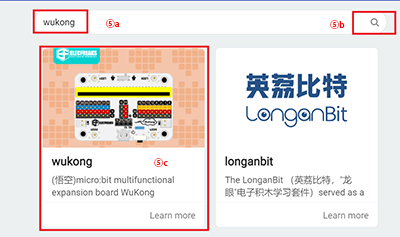

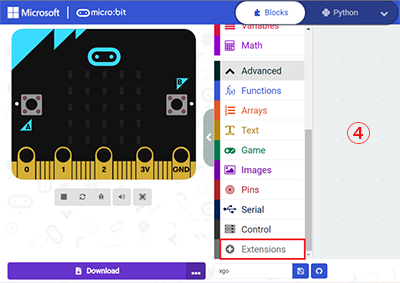

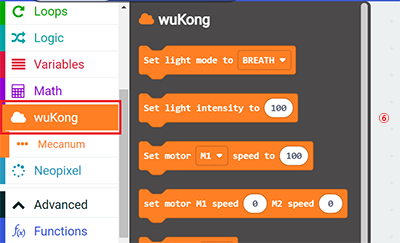

Click “Advanced” to see more choices, then click “Extensions” and seach with “wukong” to add it.

../../_images/straw-manipulator-19.png

../../_images/straw-manipulator-20.png

../../_images/straw-manipulator-23.png

../../_images/straw-manipulator-24.png

1.7. Initialization#

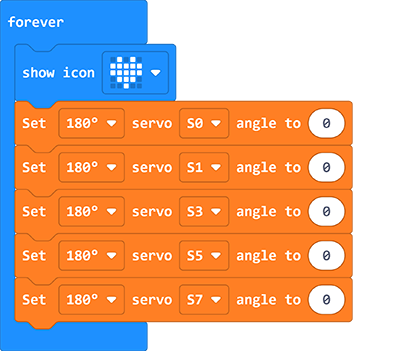

The intialization status applied in this blog is: 0 degree means the the full stretching straight of the fingers and 180 degrees means the flexing of the fingers. Thus, before programming, please set the angle of the servos to 0 degree. Take off the white plates and download the program after completing the code in MakeCode .

../../_images/straw-manipulator-17.png

Program

Fix the white plates after adjusting the servos and excute the programs, and of course, it is possible if you’d like to create your own projects!

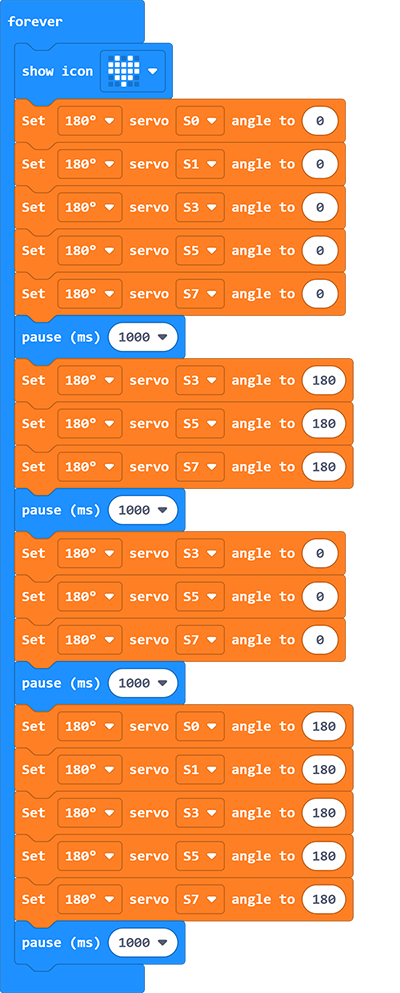

1.8. Sample#

../../_images/straw-manipulator-25.png

Link: wukong

You can also download it directly below:

1.9. FAQ#

As we are using 180 degrees servos, thus the scopes value given to the programming blocks is among 0~180, after downloading the program, turn on the wukong breakout board, for more info about it please visit: wukong breakout board
