1. Bitboard Kit#

1.1. Introduction#


Change everything into a “keyboard”! The Bitboard helps to learn the electric circuits, create music and games, and it makes everything to be your creating tools!

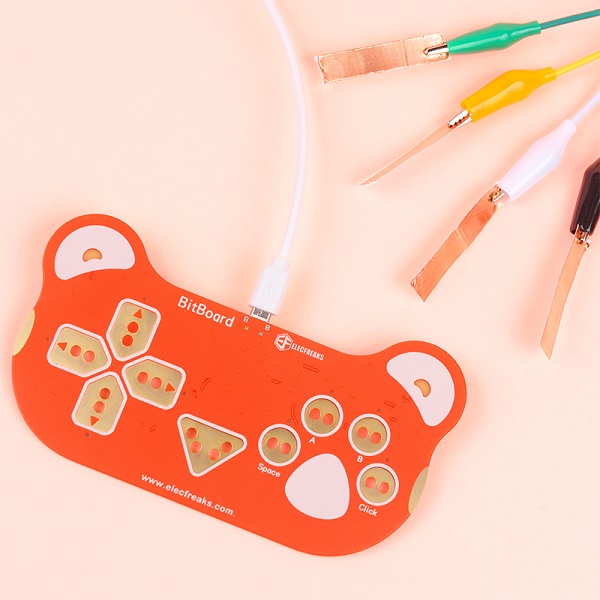

1.3. Picture#


../_images/Bitboard_Kit_01.png

1.4. Parameter#


Item Data
Product Name Bitboard
Rated voltage 5V
Rated current 15mA
Power supply interface Micro-USB
Number of contacts 8
Programming method ecode, Scratch
Size Approximately 140mm X 76mm
Net weight 31g

1.5. Components List#


Item Quantity
Bitboard 1
alligator clip cable 10
USB cable 1
Conductive stickers 1

../_images/Bitboard_Kit_02.png

1.6. Quick Start#


Programming#

1.Go to https://www.ecode.cn/creative/, and click “Events”.

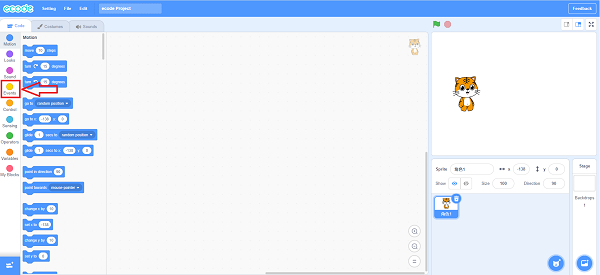

../_images/Bitboard_Kit_06.png

2.Choose when space key pressedblcok, then click right arrow

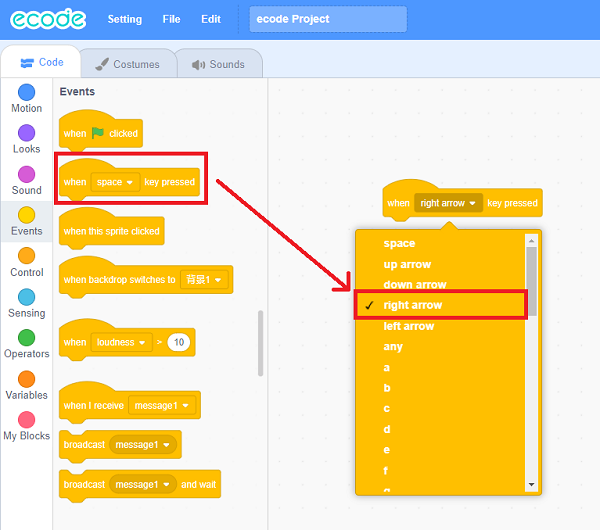

../_images/Bitboard_Kit_07.png

3.Click “Motion” and choose move 10 steps block.

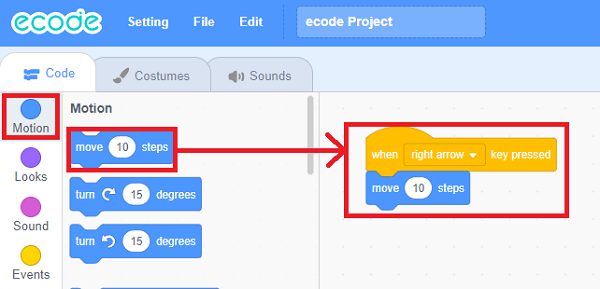

../_images/Bitboard_Kit_08.png

4.After programming, click the green flag to run it.

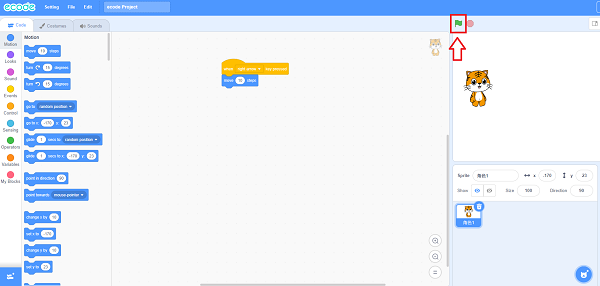

../_images/Bitboard_Kit_09.png

1.7. Operation steps#


1.Connect the Bitboard with the computer through the USB cable.

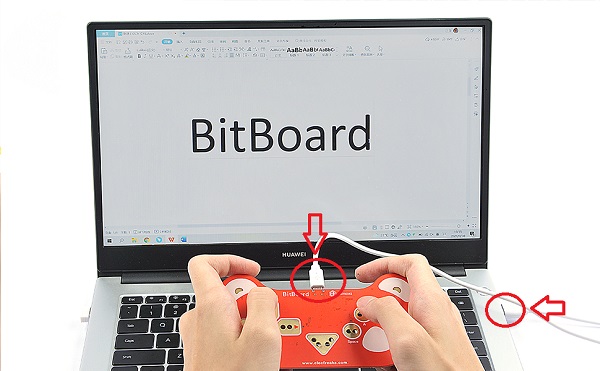

../_images/Bitboard_Kit_03.png

2.Connect the buttons and GND ports on the Bitboard with the conductots through the alligator clips.

../_images/Bitboard_Kit_04.png

4.Hold the conductors of the buttons and GND to complete the closed-loop circuit with your hands.

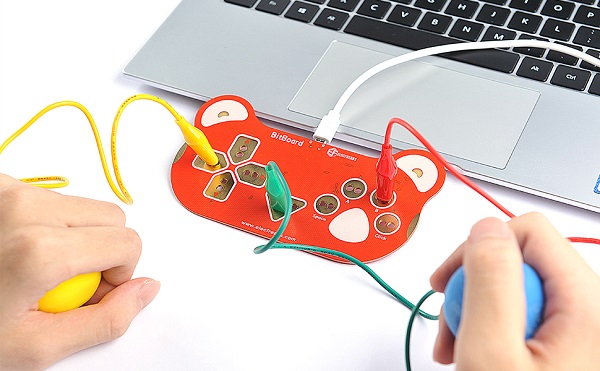

../_images/Bitboard_Kit_05.png

1.8. Result#


Hold the conductors of the buttons and GND to complete the closed-loop circuit with your hands, you can see the tiger on the stage(in ecode) moving to the right side.
