22. Octopus Magnetic Switch

22.1. Introduction

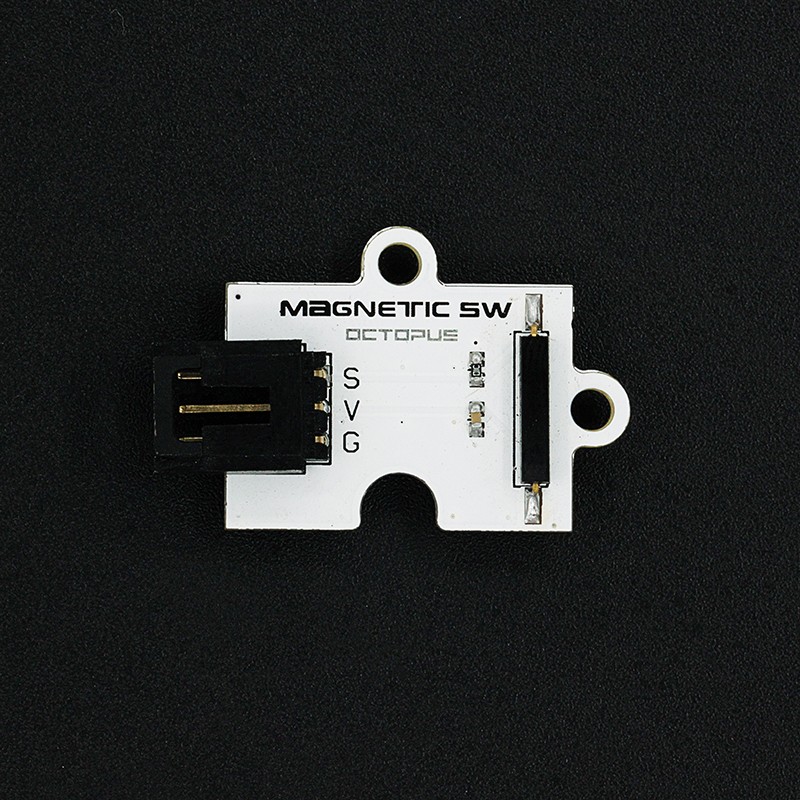

OCTOPUS Magnetic Switch is a simple electric brick module with magnetic control switch.It is normally combined with electromagnet or components with magnet.It can be used to security alarming system,door magnetic switch and so on.

../../_images/y2rEGSc.jpg

22.2. Characteristics


  • The 3-pins ports is easy to plug and play.

22.3. Specifications


Item | Parameter :-: | :-: SKU|EF04075 Working Voltage|3.3-5V Weight|5g Mode of Motion|Swift, small volume Touch Points|Strong corrosion and abrasion resistance Working Current|200mA Working Temperature|-55~125℃ Size|23.48mm×31.28mm

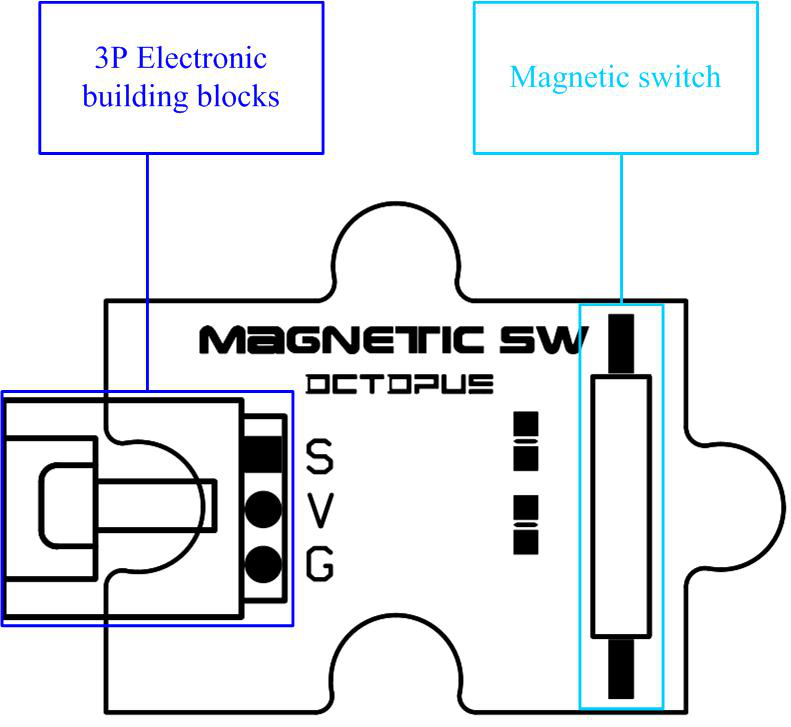

22.4. Outlook and Dimensions


../../_images/9AZBMTT.png

22.5. Quick to Start

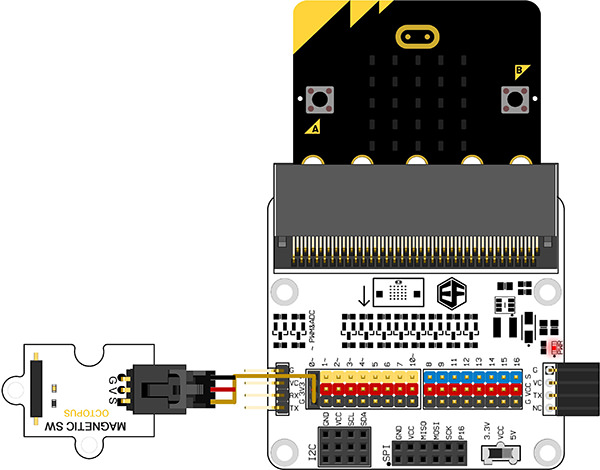

Materials used and connection diagram

  • Connect to the P0 port

    Take sensor:bit for example

../../_images/YdMbHja.jpg

Add Package

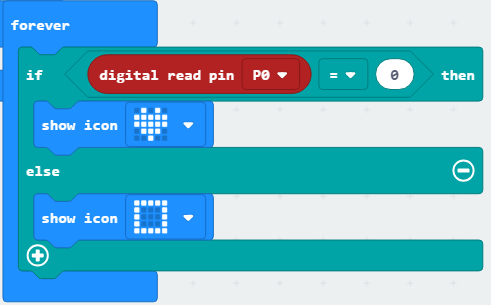

Program as the picture shows

../../_images/3k1UPiG.png

Reference

Links:https://makecode.microbit.org/_9qEAW758A6Cm

You can also download the links below:

---

Result

  • When there is magnet approaching, a rectangle is showing on the micro:bit; Or an icon is showing on the micro:bit.
