20. Octopus DS18B20 Digital Temperature Brick

20.1. Introduction


This brick uses the DS18B20 1-Wire digital temperature sensor from Maxim IC.

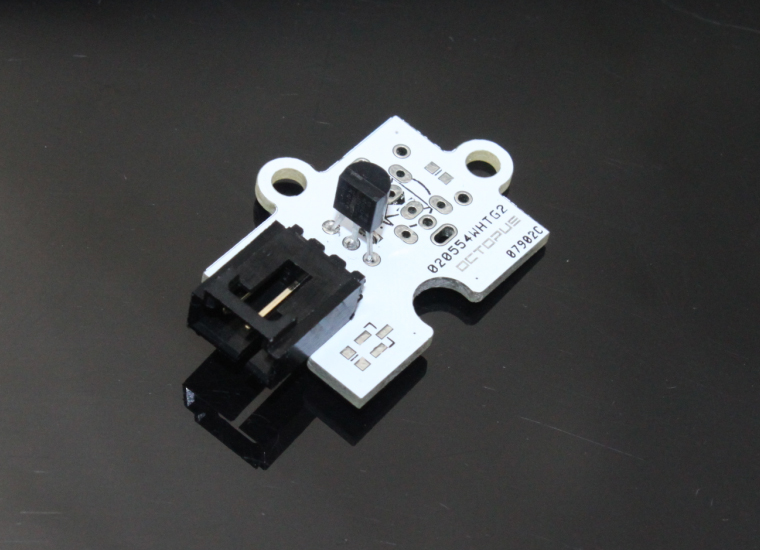

../../_images/c8DrDnH.jpg

20.2. Characteristics

  • It can report degrees C with 9 to 12-bit precision, -55C to 125C (+/-0.5C). Each sensor has a unique 64-Bit Serial number etched into it that can allow for a huge number of sensors to be used on one data bus.

20.3. Specifications


Item | Parameter :-: | :-: SKU|EF04042 Power Dissipation|ULP Working Temperature|-20-70℃ Working Voltage|3.3-5V

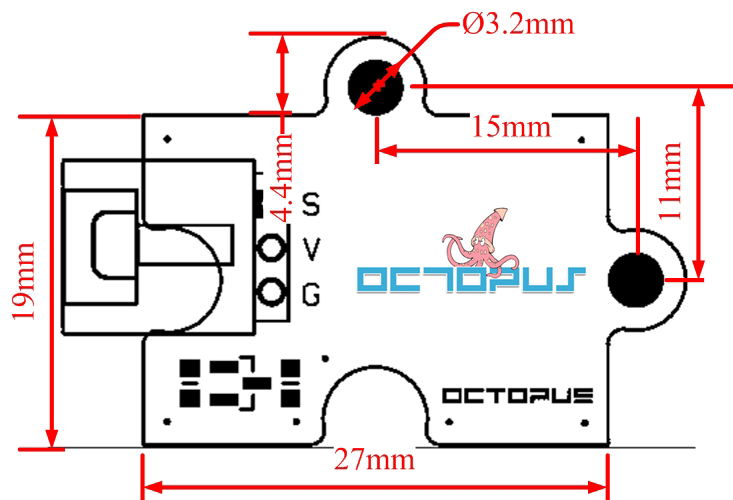

20.4. Outlook and Dimensions


../../_images/Bc8O78l.jpg

20.5. Quick to Start

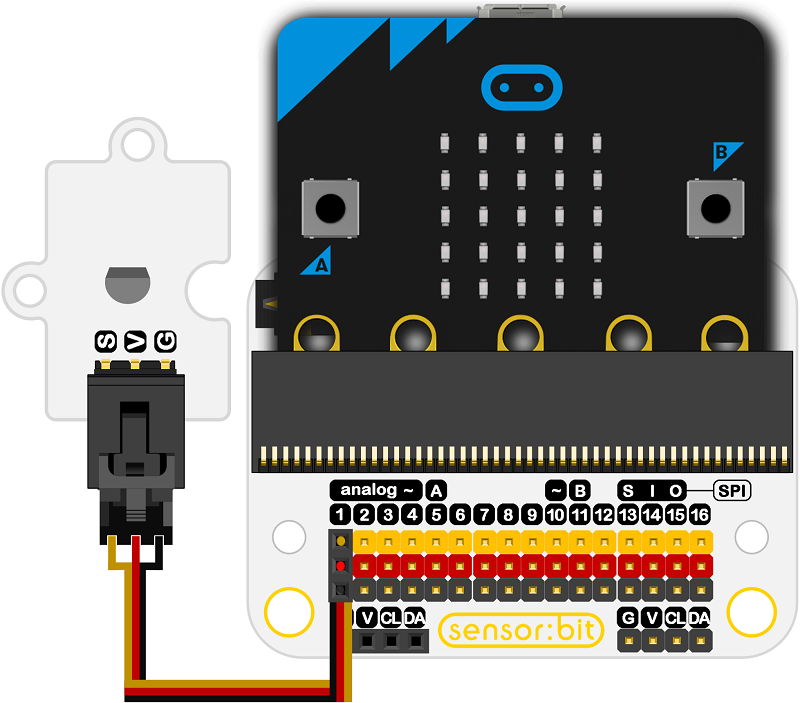

Materials used and connection diagram


Take sensor:bit for example

../../_images/Sc5JwUT.png

Add Package

  • Click “Advanced”in the choice of the MakeCode to find more choices.

../../_images/smtcNoB2.png

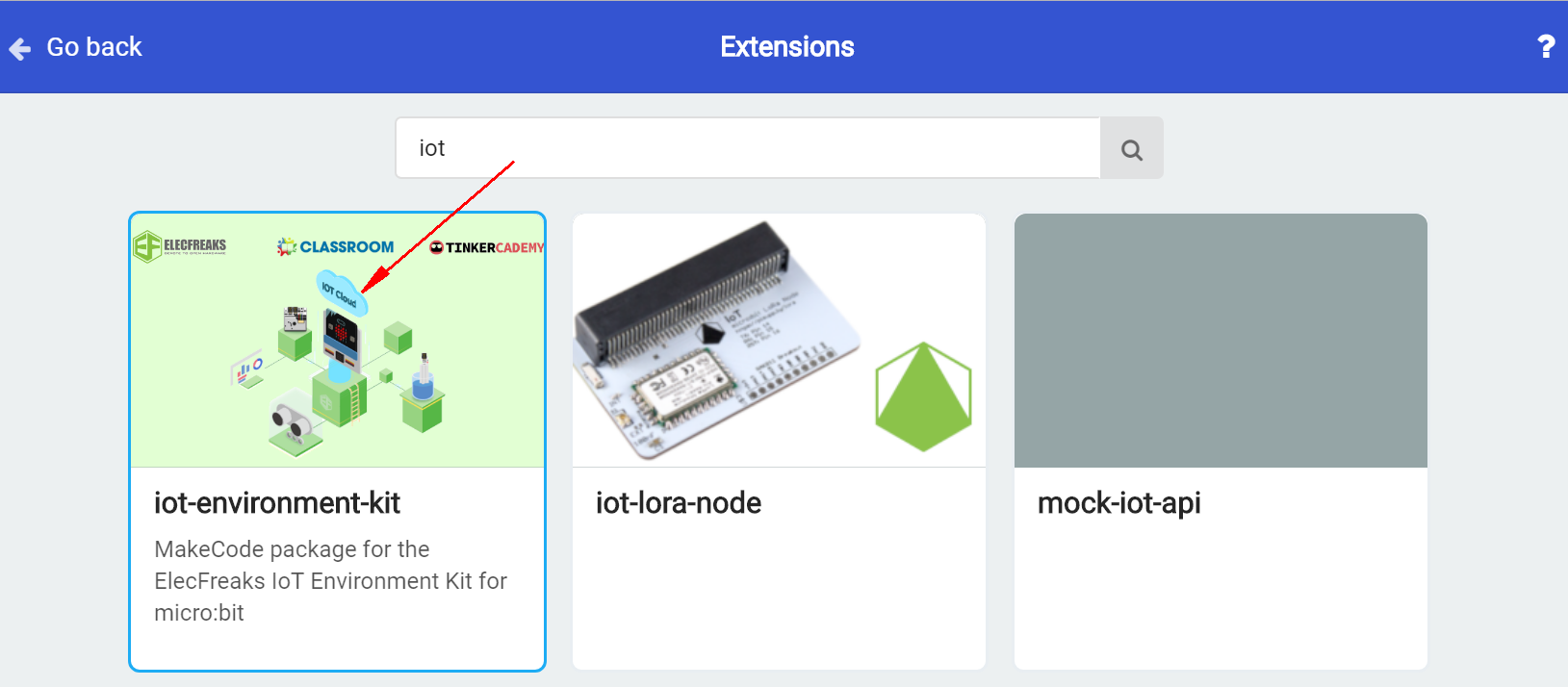

Click “Extensions”, search “iot”in the dialog box and then download it.

../../_images/qChMeYd.png

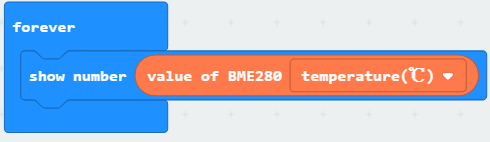

Program as the picture shows

../../_images/kO6z0oE.png

Reference

Links: https://makecode.microbit.org/_FEiCtaV235Xw

You can also download the links below:

---

Result

  • The current temperature is showing on the micro:bit.

20.6. Relevant Cases


20.7. Technique Files
