8. Octopus Real-time Clock(EF04005)#

8.1. Introduction#


  • OCTOPUS Real-time Clock is a clock module which can achieve counting for year, month, day, hour by using the DS1307 clock chip.

../../_images/gqYrhXw.jpg

8.2. Characteristics#


  • The chip works in a low voltage equipped with 56-byte non-volatile RAM clock calendar

  • It has a complete BCD code real-time clock chip, address and data are passed through two-wire bidirectional serial bus, providing information such as seconds, minutes, hours, etc., and can automatically adjust the number of days per month.

  • It can automatically set the time of the leap year.

  • The chip has built-in power checking circuit that can check the power lost condition and switch the battery.

8.3. Specifications#


Item Parameter
SKU EF04005
Connector Two-wire serial interface (IIC Communication)
Output Programmable SQW
Detection Automatic power failure detection and switching circuit
Power dissipation In the standby battery mode, the power consumption is less than 500nA
Working temperature -40℃ ~80℃
Power input 3v-5v
Connector type Digital
Pins Definition 1-GND 2-VCC 3-SCK 4-SDA 5-RST

8.4. Quick to Start#

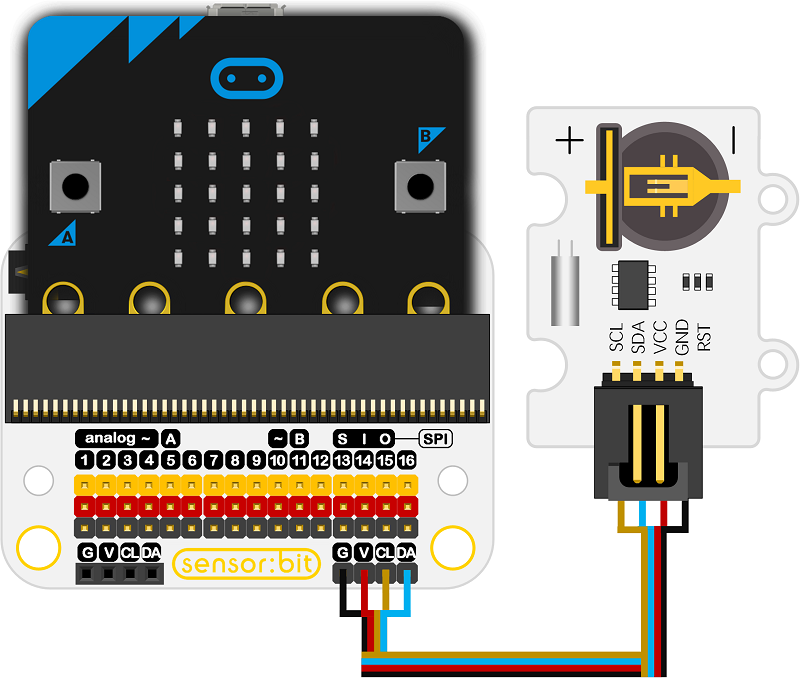

Materials used and the connection diagram#

  • Connect to IIC port as the picture shows

  • SCL pin needs to connect to SDA pin.

Take sensor:bit for example

../../_images/WrOpBWb.png

Add Package#

  • Click “Advanced”in the choice of the MakeCode to find more choices.

../../_images/smtcNoB2.png

  • Click “Extensions”, search “iot”in the dialog box and then download it.

../../_images/AaZxCEb1.jpg

../../_images/pVEXZaA.png

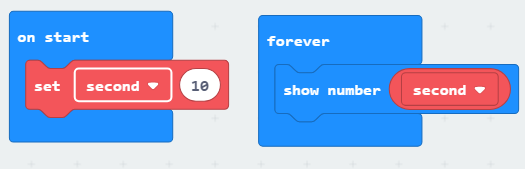

Program as the picture shows#

  • Set the number of second as “10” on start to show the second each minute.

../../_images/pOLA97P.png

Reference#

https://makecode.microbit.org/_4AgTERW0qXRt

You can also download the links below:

Result#

  • The current number of second is shown on the micro:bit each minute.
