16. OCTOPUS Vibration Motor

16.1. Introduction

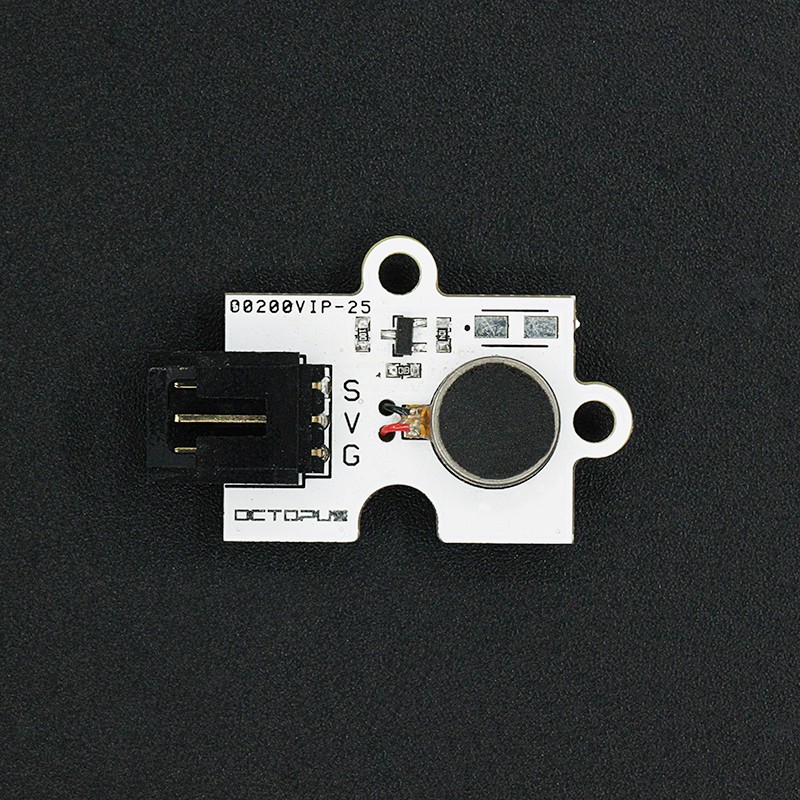

OCTOPUS Vibration Motor is a kind of electric brick module carrying with a small vibrator driven by high voltage. It can be used as vibrators for products like toys, mobiles and so on.

../../_images/d9jdEqa.jpg

16.2. Characteristics


The 3-pins ports is easy to plug and play.

16.3. Specifications


Item | Parameter :-: | :-: SKU|EF04074 Working Voltage|+ 3.3-5V Weight|5g Power Dissipation|ULP Working Current|80mA(MAX) Working Temperature|-20~70℃ Size|31.28mm×23.48mm

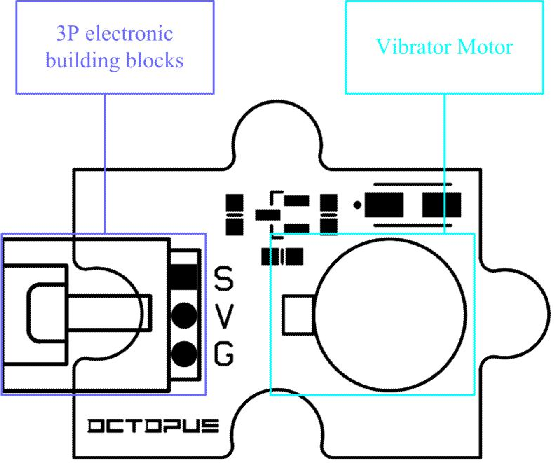

16.4. Outlook and Dimensions


../../_images/72WTbmL.png

16.5. Quick to Start

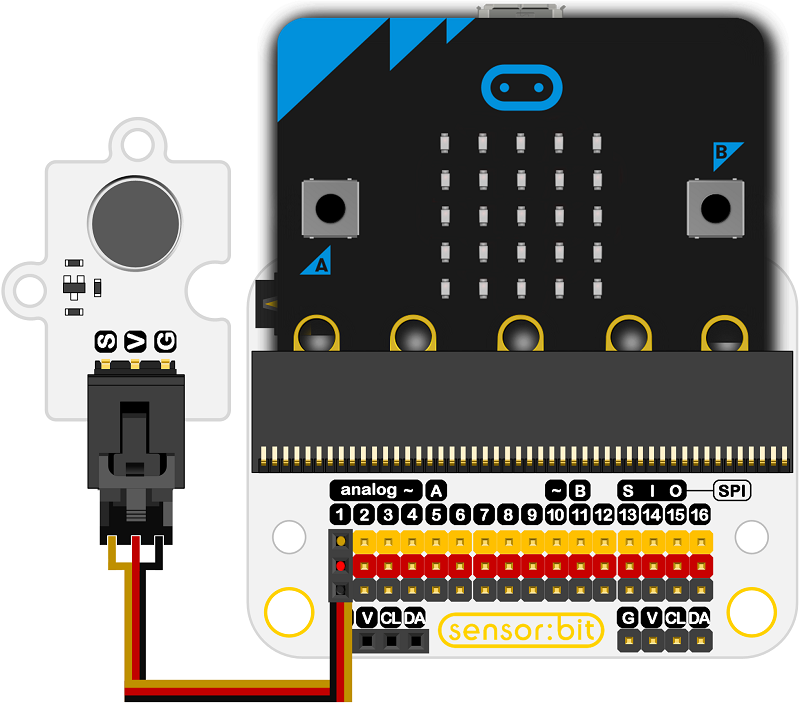

Materials used and connection diagram

  • Connect to the P1 port

    Take sensor:bit for example

../../_images/opsGYQb.png

Add Package

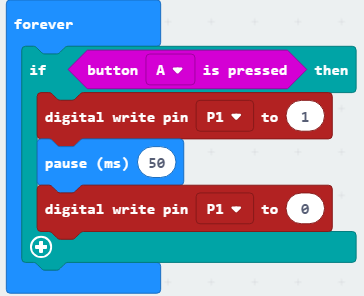

Program as the picture shows

../../_images/Ga95B0U.png

Reference

Links:https://makecode.microbit.org/_K3ydU0V389k2

You can also download the links below:

---

Result

  • The module starts vibrating after pressing button A.

16.6. Relevant Cases


16.7. Technique Files
