9. Octopus Sound Sensor

9.1. Introduction

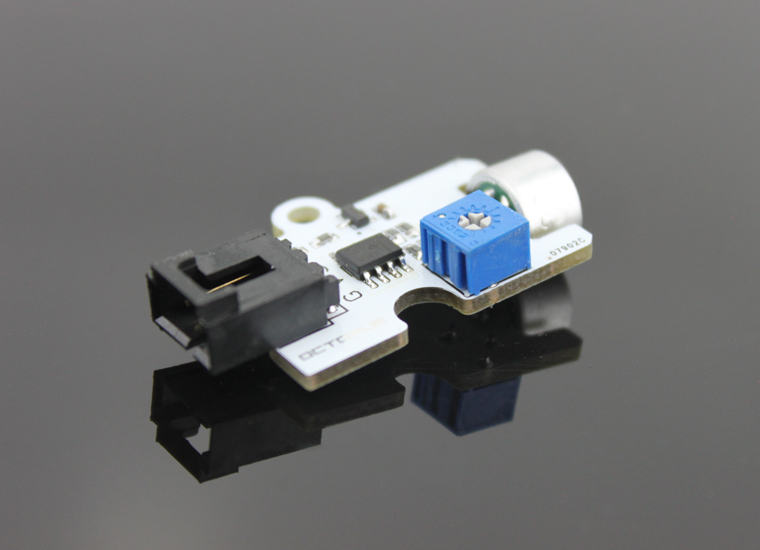

  • OCTOPUS Sound Sensor is a sensor module based on MIC sound sensing element. Sound Sensor is particularly sensitive to sound intensity,and it can be used to detect ambient sound level, but it can not identify the size of sound and the specific sound frequencies. It is available to make voice switches and other works.

../../_images/RYuGvVY.jpg

9.2. Characteristics


  • The 3-pins ports is easy to plug and play.

  • It can work with micro:bit in 3V.

9.3. Specifications


Item | Parameter :-: | :-: SKU|EF04008 Power Input|3V-5.5V Connector Type|Analog Pins Definition|1-Signal 2-VCC 3-GND Response|Quick response with high sensitivity Circuit|Simple Stability|Stable and durable

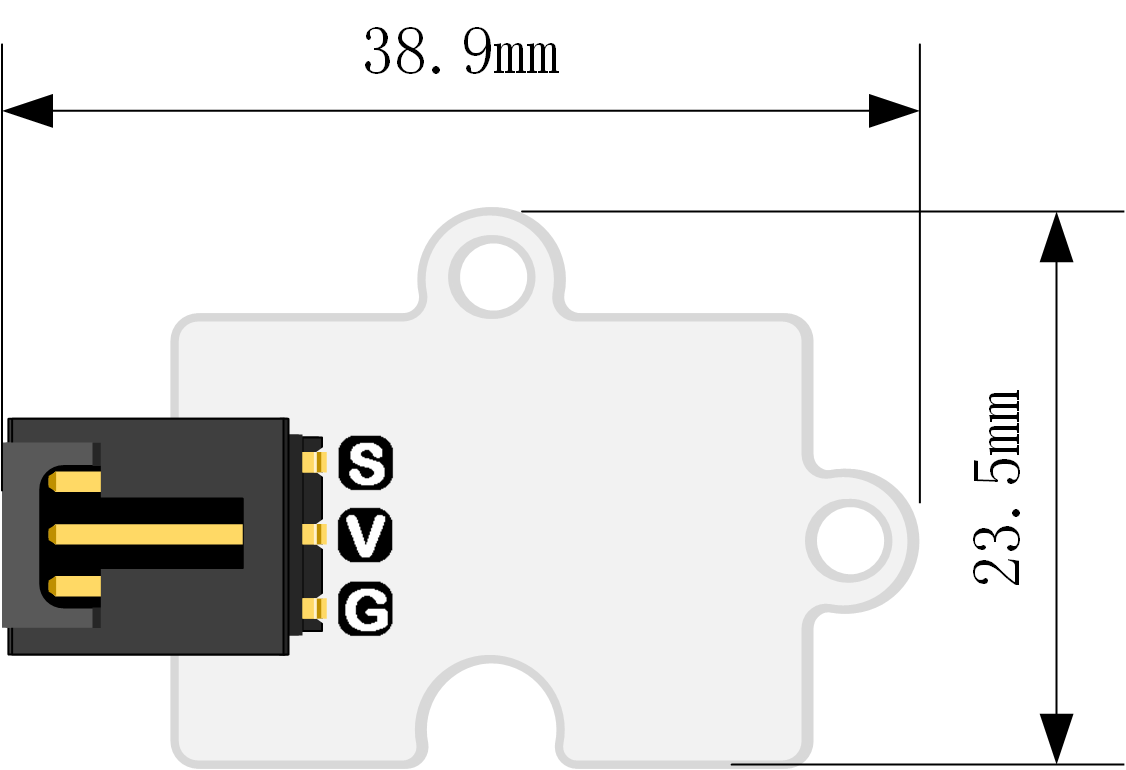

9.4. Outlook and Dimensions


../../_images/vSCVTwl.png

9.5. Quick to Start


Materials used and connection diagram

  • Connect to the P1 port as the picture shows

    Take sensor:bit for example

../../_images/ALobDLt.png

Add Package

  • Click “Advanced”in the choice of the MakeCode to find more choices.

../../_images/smtcNoB2.png

  • Click “Extensions”, search “iot”in the dialog box and then download it.

../../_images/AaZxCEb1.jpg

../../_images/KBD2b39.png

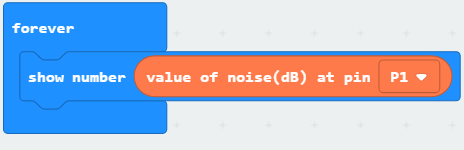

Program as the picture shows

  • Show the current noise(dB)

../../_images/eGW5JbX.png

Reference

Links:https://makecode.microbit.org/_TzgHwu4jUAdy

You can also download the links below:

---

Result

  • The value of the current noise(dB) is shown on the micro:bit.
