27. Dust Sensor Detector Module(EF05027)

27.1. Introduction

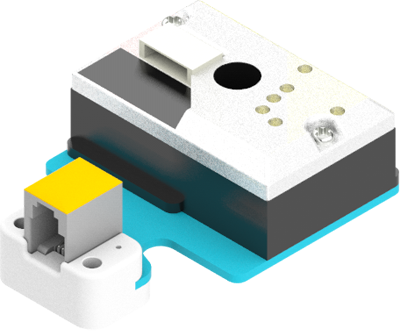

The Dust Sensor Detector Module with Sharp GP2Y1010AU0F adopts Sharp optical dust sensor(GP2Y1010AU0F). It is used to detect the density of dust particle with diameter beyond 0.8μm such as cigarette smoke.

../_images/05027_01.png

27.2. Characteristic


  • Designed in RJ11 connections, easy to plug.

27.3. Specification


Item Parameter
SKU EF05027
Connection RJ11
Type of Connection Digital output
Working Voltage 3.3V
Sensitivity 0.5V /(100μg/ m3)
Effective Scope 500μg/ m3

27.4. Outlook

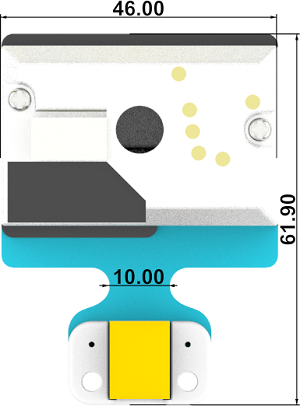

../_images/05027_02.png

27.5. Quick to Start


27.5.1. Materials Required and Diagram

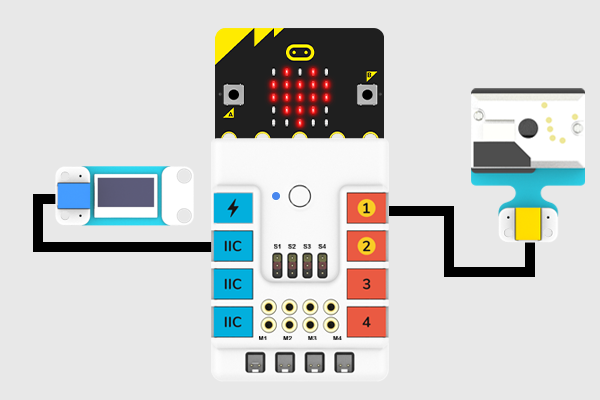

  • Connect the Dust sensor to J1 port and the OLED to the IIC port in the Nezha expansion board as the picture shows.

../_images/05027_03.png

27.6. MakeCode Programming


27.6.1. Step 1

Click “Advanced” in the MakeCode drawer to see more choices.

../_images/05001_04.png

We need to add a package for programming, . Click “Extensions” in the bottom of the drawer and search with “PlanetX” in the dialogue box to download it.

../_images/05001_05.png

Note: If you met a tip indicating that the codebase will be deleted due to incompatibility, you may continue as the tips say or build a new project in the menu.

27.6.2. Step 2

27.6.3. Code as below:

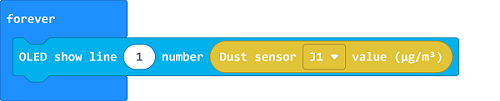

../_images/05027_06.png

27.6.5. Result

  • The value detected by the Dust Sensor displays on the OLED screen.

27.7. Python Programming


27.7.1. Step 1

Download the package and unzip it: PlanetX_MicroPython

Go to Python editor

../_images/05001_072.png

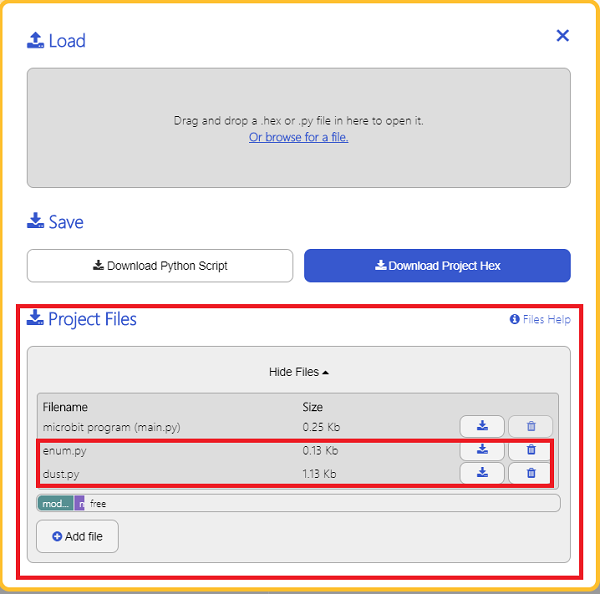

We need to add enum.py and dust.py for programming. Click “Load/Save” and then click “Show Files (1)” to see more choices, click “Add file” to add enum.py and dust.py from the unzipped package of PlanetX_MicroPython.

../_images/05001_081.png ../_images/05001_091.png ../_images/05027_10.png

27.7.2. Step 2

27.7.3. Reference

from microbit import *
from enum import *
from dust import *

dis = DUST(J1)
while True:
    display.scroll(dis.get_dust())
    sleep(500)

27.7.4. Result

  • The value detected by the Dust Sensor displays on the micro:bit.
