6. Case 04: Remote Control with Joystick:bit V2

6.1. Introduction


  • Control the drones with the Joystick:bit V2.

6.3. Picture


../../_images/Drone-bit-02.png

6.4. Software Programming


Click “Advanced” in the MakeCode drawer to see more choices.

../../_images/Drone-bit-case-01-01.png

For programming, we need to add a package: click “Extensions” at the bottom of the MakeCode drawer and search with “https://github.com/elecfreaks/pxt-Dronebit” in the dialogue box to download it.

../../_images/Drone-bit-case-01-02.png

Notice: If you met a tip indicating that some codebases would be deleted due to incompatibility, you may continue as the tips say or create a new project in the menu.

6.5. Program

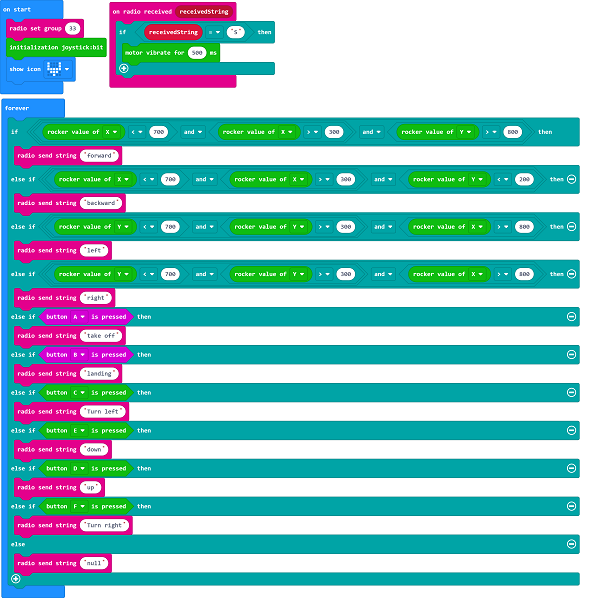

The Remote Control Part:

../../_images/Drone-bit-case-04-03.png

Link: https://makecode.microbit.org/_9WA7g9Rm5cyu

You can also download it directly:

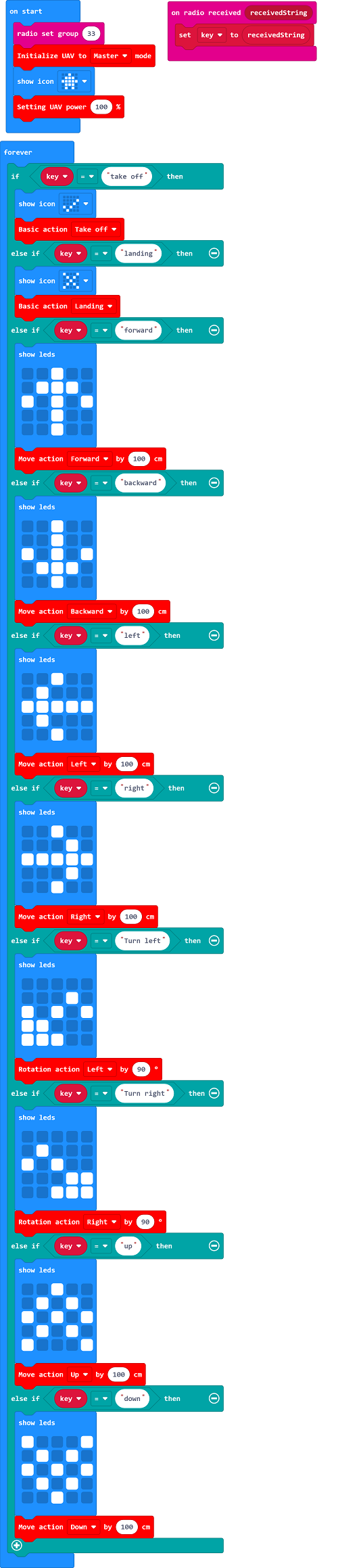

The Drones Part:

../../_images/Drone-bit-case-04-04.png

Link: https://makecode.microbit.org/_05Hc6fTUcRTr

You can also download it directly:

6.6. Result


  • Turn on the Joystick:bit V2 and the drone, you can send commands via Joystick:bit V2 after its vibration.

  • Each command is only working after the Joystick:bit V2 gets vibrated.

  • The flying directions could be controlled by the stick.

  • Press button to fly the drone and button B to give landing command.

  • Press button C to make the drone rotate left in 90 degrees and button F to rotate right in 90 degrees.

  • Press button D to add the altitude and E to lower it.
