15. case 07 Turns over Detection

15.1. Our Goal


  • Make the car to stop when it turns over.

15.2. Requiered Materials


  • 1 x Ring:bit Car

15.3. Hardware Connect


  • Connect the left wheel servo to P1 of the Ring:bit expansion board and the right wheel servo to P2.

../../_images/jBVHea8.png

15.4. Software


makecode

15.5. Coding


Step 1

  • Click on “Advanced” in the MakeCode Drawer to see more code sections.

../../_images/2qCyzQ71.png

  • Search for “ringbitcar” and click on the ring:bit car package to add it to your project. (As below picture)

../../_images/1Wq2Mov1.jpg

Note:If you get a warning telling you some packages will be removed because of incompatibility issues, either follow the prompts or create a new project in the Project file menu.

Step 2

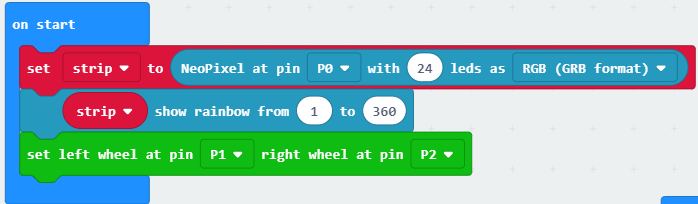

  • Snap the on start block from the Basic. Set Neopixel with 24 leds in RGB format for colorful light and show rainbow from 1 to 360. Then, initialize the P1 port to left wheel and the P2 port to right wheel.

!../../_images/tBTItKu.png

Step 3

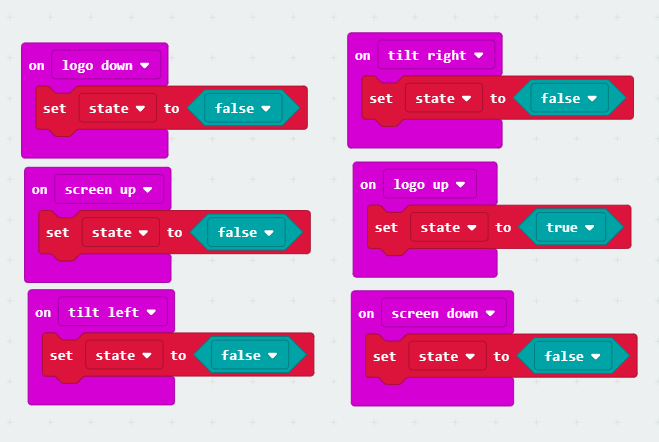

  • Set a variable to state for controlling car’s running. Then set state variable unber the logo up block to true and the other to false.

../../_images/wjmku1o1.png

Step 4

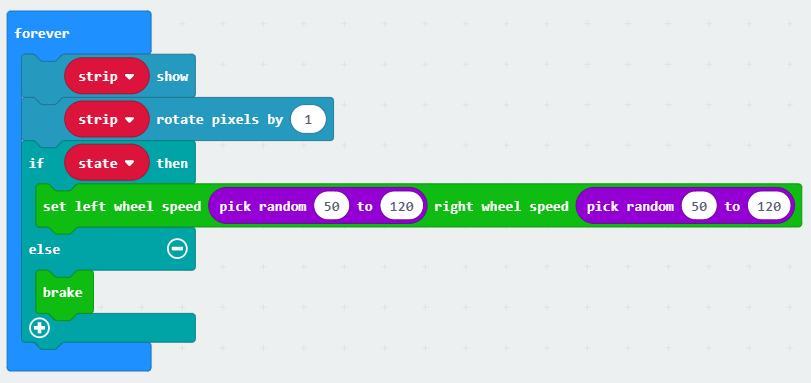

  • Set the rainblw led to colorful lights under the forever loop in gradual change. Use the variable state to control car’s running. ../../_images/w8SjwwY.png

Program

Program Link:https://makecode.microbit.org/_asoLxTRz4Dg2

If you don’t want to type these code by yourself, you can directly download the whole program from the link below:

---

15.6. Result


  • The car runs normally,when it turns over, it stops.

../../_images/buZmNej.gif

15.7. Think


  • How can you design more funny project using other kits?
