4. OCTOPUS 1Channel Relay - 5V

4.1. Introduction


OCTOPUS 1Channel Relay is a single relay electronic brick.

../../_images/1E9gHLP.jpg

4.2. Characteristics


  • The 3-pins ports is easy to plug and play.

  • It can work with micro:bit in 3V.

4.3. Specifications


Item | Parameter :-: | :-: SKU|EF04026 Relay Supply Voltage|3V-5.5V Contactor Control |Light separation circuit Drive Circuit|Transistor drives circuit, high resistance of the pins Heavy Relay|DC 24V 2A,AC 120V 2A PCB location hole|Standard 3mm

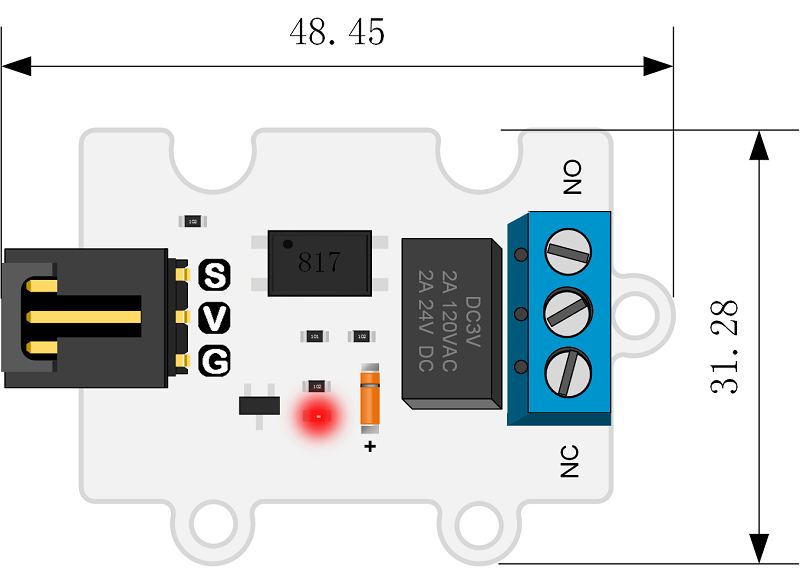

4.4. Outlook and Dimensions


../../_images/lgUM5rk.png

4.5. Quick to Start

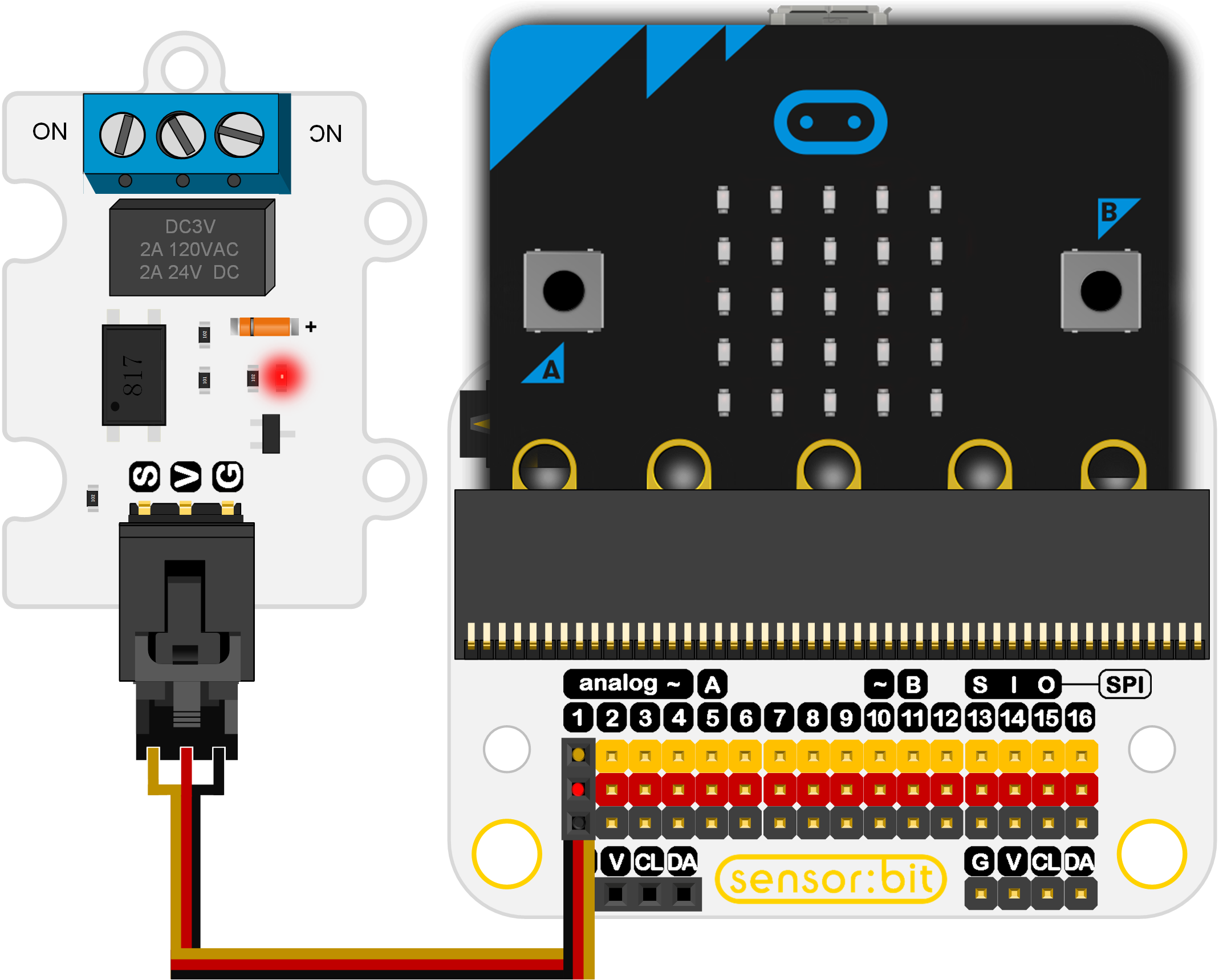

Materials used and connection diagram


  • Connect to the P1 port as the picture shows

    Take sensor:bit for example

../../_images/xcHn45y.png

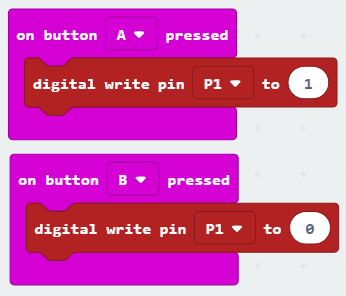

Program as the picture shows


../../_images/hXlcnvg.png

Reference


Links: https://makecode.microbit.org/_5fRVFCVFUJmE

You can also download the links below:

---

Result

  • Press the button A or B to control the on or off of the relay.

4.6. Relevant Cases


4.7. Technique Files
