15. Octopus Temperature And Humidity Sensor

15.1. Introduction

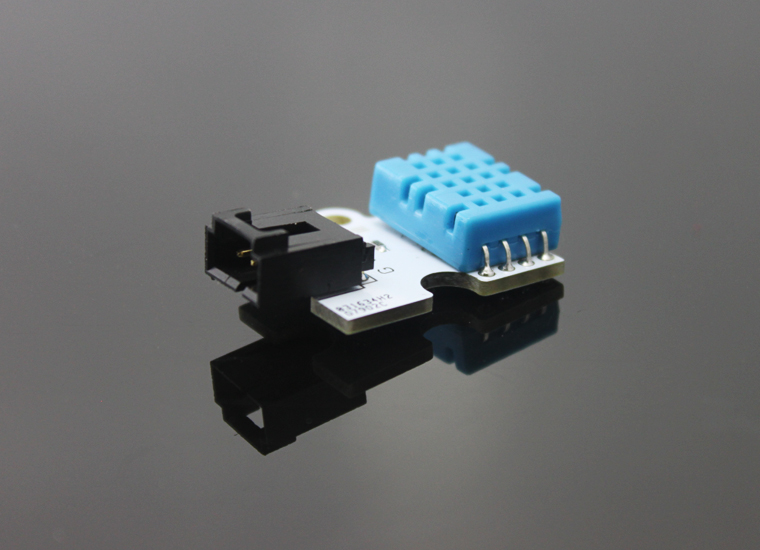

  • Temperature and humidity sensor is a module based on DHT11 digital temperature and humidity sensing element. It is sensitive to the ambient temperature and humidity changes and can be used for temperature alarm, humidity testing and other works.

../../_images/b4CeLwq.jpg

15.2. Characteristics

The 3-pins ports is easy to plug and play.

15.3. Specifications

  Item       | Parameter

:-: | :-: SKU|EF04019 Power Input|3v-5.5v Connector Type|Analog Pins Definition|1-Signal 2-VCC 3-GND Response|Quick response Sensitivity|High circuit|Simple Service Life|Long(Stable and durable)

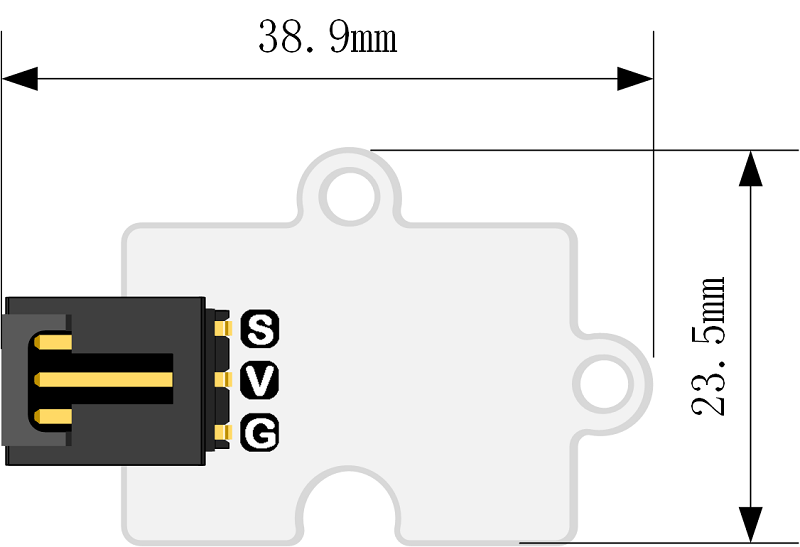

15.4. Outlook and Dimensions

../../_images/aQIDnpP.png

15.5. Quick to Start

Connection diagram

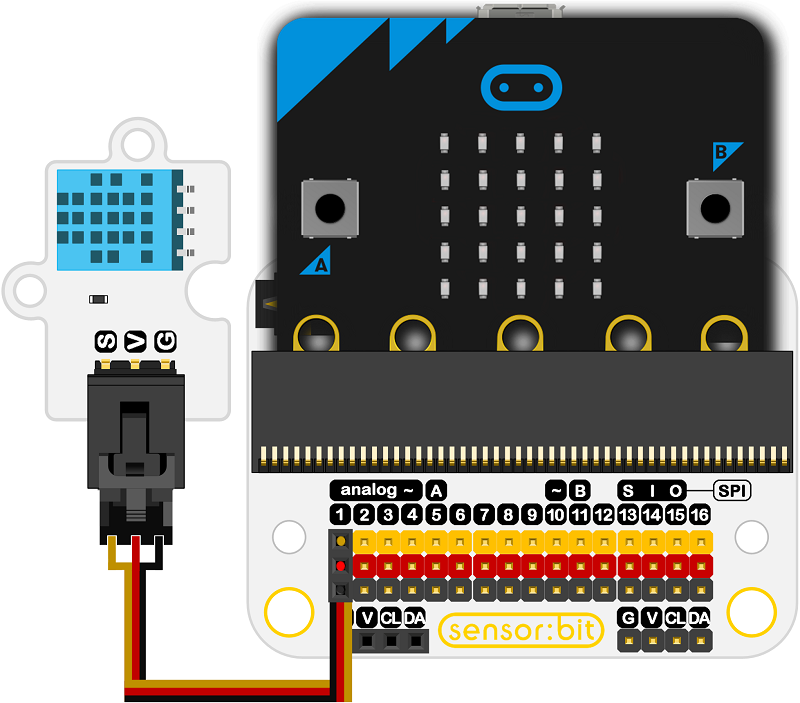

  • Connect to P1 port as the picture shows.

Take sensor:bit for example

../../_images/jxvVgcK.png

Add Package

  • Click “Advanced”in the choice of the MakeCode to find more choices.

../../_images/smtcNoB2.png

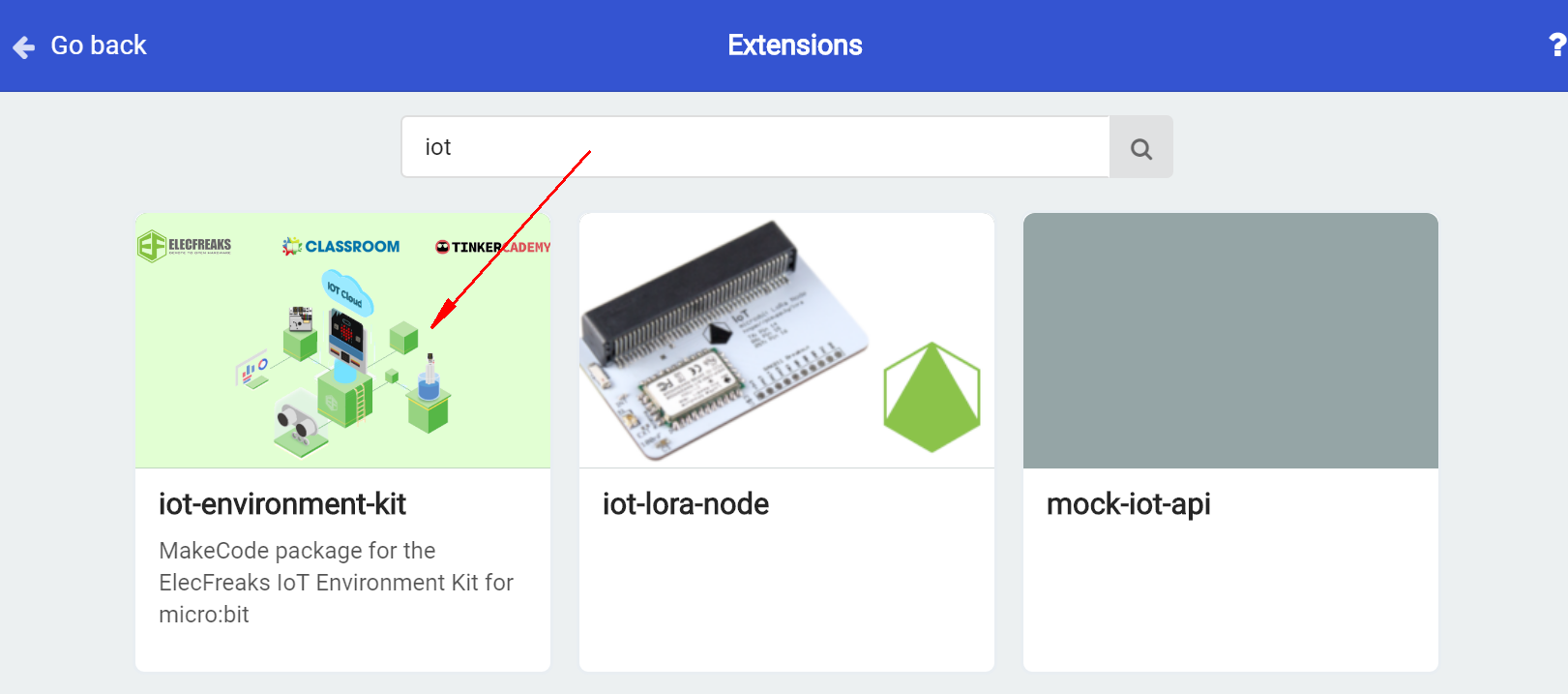

  • Click “Extensions”, search “iot”in the dialog box and then download the “iot-environment-kit”.

../../_images/IAZrNAy.png

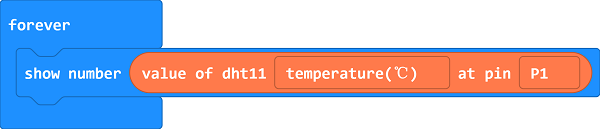

Program as the picture shows

  • The current temperature value is showing on the micro:bit.

../../_images/BOELw4G.png

Reference

Links: https://makecode.microbit.org/_E2kTxL2wp42J

You can also download the links below:

---

Result

  • The temperature value is scrolling on the micro:bit.
