6. Snowflake Buzzer for micro:bit

6.1. Introduction


The snowflake buzzer is a symbol of christmas day’s snow. The snowflake buzzer is just like snow, comes in this christmas night and play the christmas music.

6.2. Features


  • With crocodile clip lines, no need for a expansion board

  • In snow shape, adapt to the christmas scene

  • Play the christmas music with coding

6.3. Parameters


|Items|Parameters| |:-:|:-:| |Name|Snowflake Buzzer| |SKU| EF03419| |Size|45.72mm Standard Hexagon| |Net Weight|8.3g|

6.4. Quick Start


Preparation

  • 1 x Snowflake Buzzer

  • 1 x micro:bit(Please prepare by yourself)

  • 3 x crocodile clip lines(Please prepare by yourself)

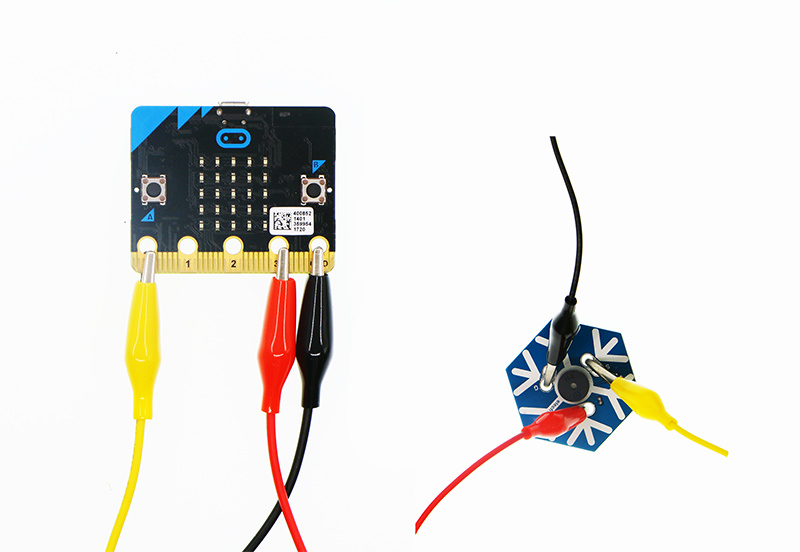

Hardware Connect

  • Connect the black crocodile clip line to the GND port of the micro:bit, the other side of the black crocodile clip line to the G port of the snowflake buzzer.

  • Connect the red crocodile clip line to the 3V port of the micro:bit, the other side of the red crocodile clip line to the V port of the snowflake buzzer.

  • Connect the yellow crocodile clip line to the 0 port of the micro:bit, the other side of the yellow crocodile clip line to the S port of the snowflake buzzer.

../../_images/h65KyxW.jpg

Software

Step 1

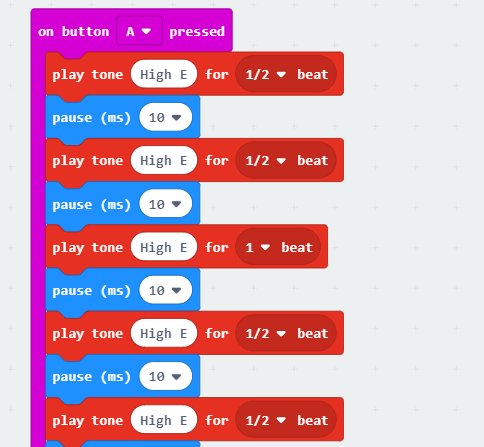

  • Set “on button A pressed” and write a little bit of music(as below picture).

../../_images/cPG4w9y1.png

Step 2

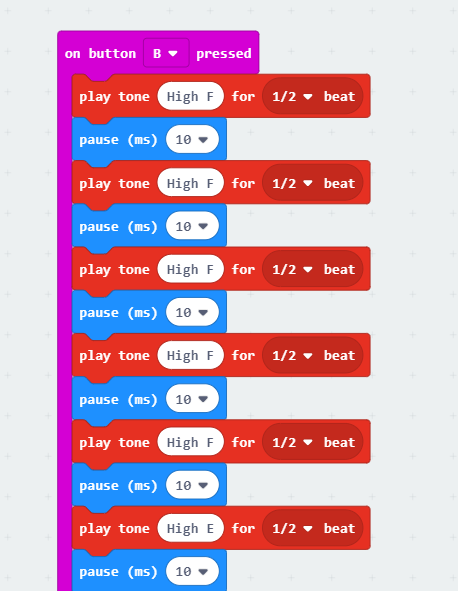

  • Set “on button B pressed” and write a little bit of music(as below picture).

../../_images/etnarAi.png

Program

Program link:https://makecode.microbit.org/_W27acib6j8D3

You also could directly download program by visiting website as below:

Result

  • When the button A pressed, a piece of “Jingle Bells” plays.

  • When the button B pressed, a piece of “Jingle Bells” plays.

6.5. FAQ
