3. case 01 Fixed Parking

3.1. Our Goal


  • Make motor:bit smart car realize fixed parking function.

3.2. Material


  • 1 x motor:bit smart car kit

3.3. Background Knowledge


Principle of Line Tracking

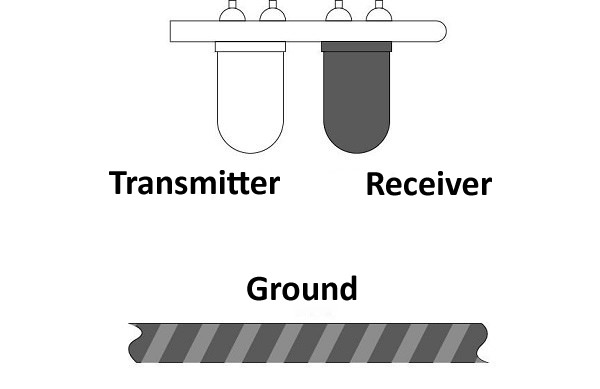

  • The line tracking module in this kit has adopted an infrared sensor. It consists of a transmitter and a receiver. The transmitter emits infrared light, while the receiver collects the infrared light reflected by the ground.

  • When contacting with black ground or other infrared light absorbing materials, the receiver can’t receive the infrared light, then the light tracking module returns to 1.

../../_images/uPsoeBB.jpg

3.4. Hardware Connection

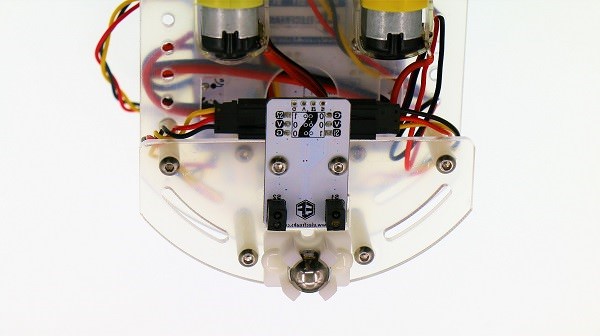

Connect the left sensor(S1) on line tracking module to the 4th pin on motor:bit. And connect the right sensor(S2) to 3rd pin. See picture below.

../../_images/BOpsVvF.jpg

../../_images/kzPngGo.jpg

3.5. Software


Microsoft MakeCode

3.6. Programming


Step 1

Click Advanced in the code drawer of MakeCode to see more options.

../../_images/LjMR5IU1.png

To program for motor:bit, we have to add a package. Find Add Package in the bottom of code drawer and click it. This will pop up a dialogue box. Search for “motorbit” and then click to download this package.

../../_images/XDlSfIS.png

Note: If you get a hint that some packages will be deleted due to the problem of incompatibility, you can either follow the prompts, or create a new project in the project menu.

Step 2

  • Insert a move forward with speed block below on start. Set the speed parameter to 80, which means the car will move forward at the speed of 80 when being powered on.

  • Create two variables: left and right. They are used to collect the return values of the left or right sensor. set their initial value to 1.

../../_images/tYJS1aY.png

Step 3

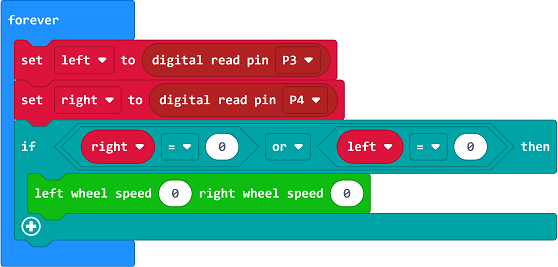

  • Within forever block, read digital pin P3 and P4, which are correspond to the left or right sensor on line tracking module separately.

  • Assign value toleftand right variable.

  • Judge if left or right is 0, which means one of the two sensors has detected black line.

  • If left or right is 0, set the motor speed to 0 and stop the car.

../../_images/p2WuniN.png

Program

Link of the whole program: https://makecode.microbit.org/_FyMAHeMuoeTJ

You can also download it from the page below.

---

Note: Due to the effect of inertia, the car will rush out a certain distance before stop when a black line is detected.

3.7. Result


  • Once powered on, the car moves forward at the speed of 80. When a black line is detected by the line tracking module, the car stops immediately.

3.8. Think


  • Create more black lines to allow the car complete fixed turning and slow down speed. How can we program?
