17. OLED Display(EF05016)

17.1. Introduction

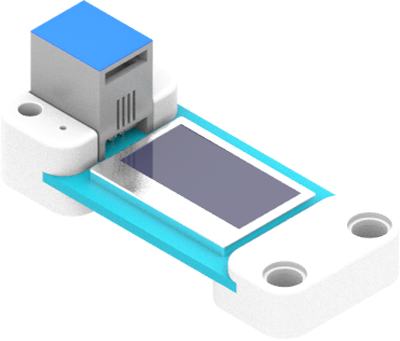

It is an OLED display to show the data that you want to print. (Chinese is not supported)

../_images/05016_01.png

17.2. Characteristic


  • Designed in RJ11 connections, easy to plug.

17.3. Specification


Item Parameter
SKU EF05016
Connection RJ11
Type of Connection IIC
Working Voltage 3.3V
Size 0.96
Resolution Ratio 128×64

17.4. Outlook


../_images/05016_02.png

17.5. Quick to Start


17.5.1. Materials Required and Diagram

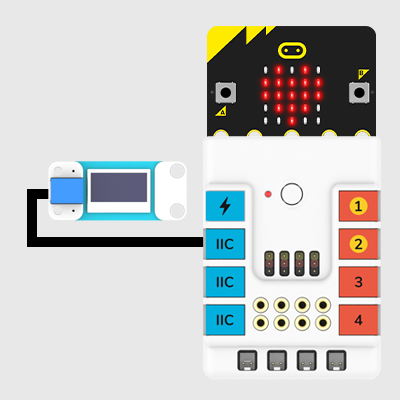

  • Connect the OLED module to IIC port in the Nezha expansion board as the picture shows.

../_images/05016_03.png

17.6. MakeCode Programming


17.6.1. Step 1

Click “Advanced” in the MakeCode drawer to see more choices.

../_images/05001_04.png

We need to add a package for programming, . Click “Extensions” in the bottom of the drawer and search with “PlanetX” in the dialogue box to download it.

../_images/05001_05.png

Note: If you met a tip indicating that the codebase will be deleted due to incompatibility, you may continue as the tips say or build a new project in the menu.

17.6.2. Step 2

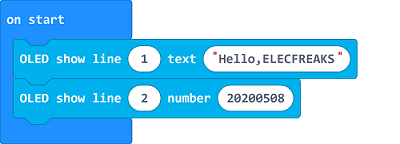

17.6.3. Code as below:

../_images/05016_06.png

17.6.5. Result

  • The numbers set display on the OLED screen.

17.7. Python Programming


17.7.1. Step 1

Download the package and unzip it: PlanetX_MicroPython

Go to Python editor

../_images/05001_072.png

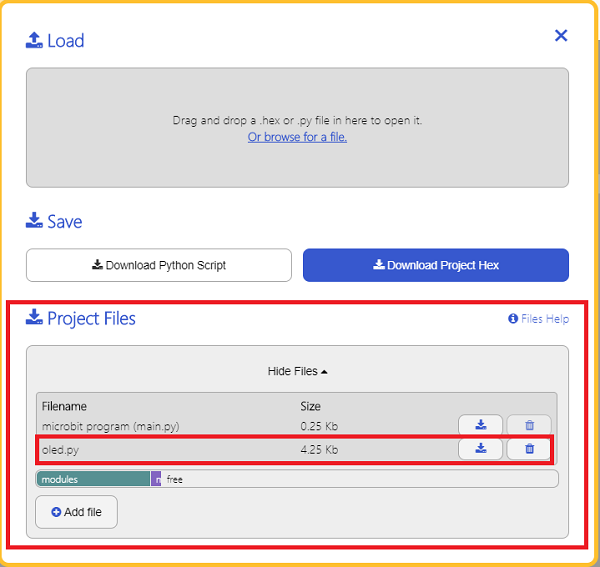

We need to add oled.py for programming. Click “Load/Save” and then click “Show Files (1)” to see more choices, click “Add file” to add oled.py from the unzipped package of PlanetX_MicroPython.

../_images/05001_081.png ../_images/05001_091.png ../_images/05016_10.png

17.7.2. Step 2

17.7.3. Reference

from microbit import *
from oled import *

display = OLED1306()
display.set_text(0, 0, "hello")

17.7.4. Result

  • The OLED screen displays “Hello” after powering on.

17.8. Relevant File


17.9. Technique File
