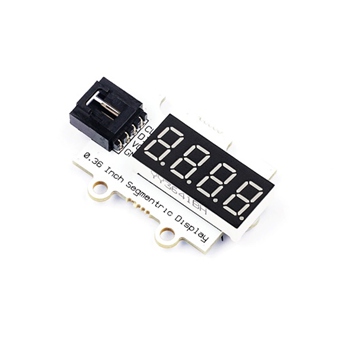

36. Octopus 0.36’’ Segment LED Brick

36.1. Introduction


../../_images/04056_1.jpg

36.2. Characteristics


  • Support driving micro:bit in 3V.

36.3. Specifications


Item Parameter
SKU EF04056
Power Supply 3V-5.5V
Pins Definition 1-CLK 2-DIO 3-VCC 4-GND
Response Quick response with high sensitivity
Circuit Simple
Stability Stable and durable

36.4. Outlook and Dimensions


36.5. Quick to Start


Materials Required and Connection Diagram

Add Package


Click “Advanced” to see more choices in the MakeCode drawer.

../../_images/smtcNoB2.png

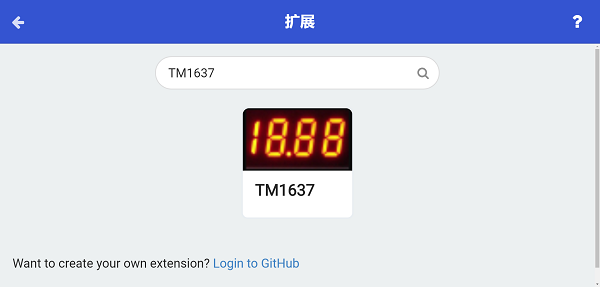

Click “Extensions” to search “TM1637” in the dialogue box and then download it.

../../_images/04056_3.png

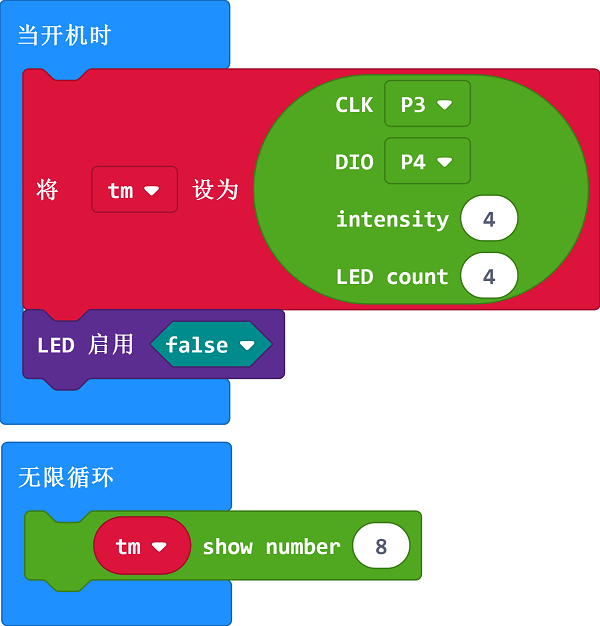

Programme as the picture shows

  • The numbers display on the led screen.

../../_images/04056_5.png

Reference

Link:https://makecode.microbit.org/_P5HfWFAvHe8J You can also download it below directly:

---

Result

  • The setting numbers display on the led screen.

36.6. Relevant Cases


36.7. Technique Files
