37. MQ2 Analog Gas Sensor Brick

37.1. Introduction

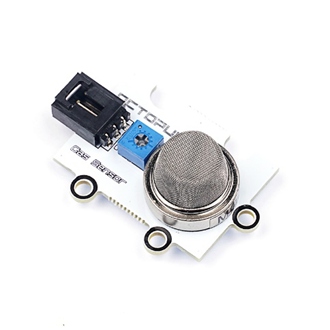

The analog gas sensor - MQ2 is used in gas leakage detecting equipments in consumer and industry markets, this sensor is suitable for detecting LPG, i-butane, propane, methane ,alcohol, hydrogen, smoke. It is of high sensitivity and fast response, the sensitivity can be adjusted by the potentiometer.

../../_images/04028_01.png

37.2. Characteristics


  • Standard 3-pin GVS port is easy to plug.

37.3. Specification


Item Parameter
SKU EF04028
Connections Type Analog
Pins Definition S-Sigal V-VCC G-GND
Working Voltage 5V
Size 38x27mm

Size:

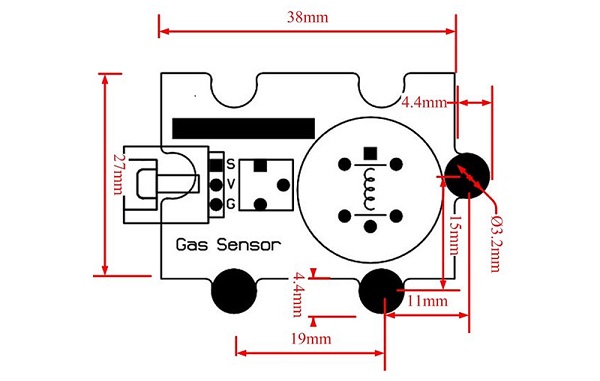

37.4. Outlook and Dimension


../../_images/04028_02.png

37.5. Quick to Start

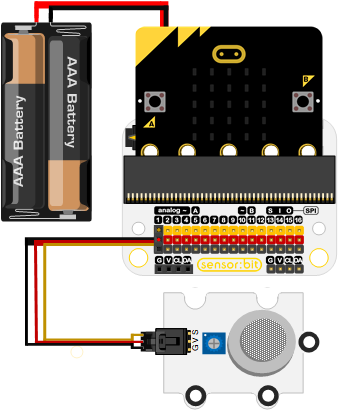

Materials required and connections diagram


  • Connect to P1 port as the picture shows.

Take sensor:bit for example

../../_images/04028_03.png

Program as the picture shows

../../_images/04028_04.png

Reference

Link:https://makecode.microbit.org/_KJVXj9Co2UXU

You can also download it directly below:

---

Result

  • Preheat it for 10 minutes after connections, detect the smoke by approaching the probes to the smoke while the returned value is almost stable.

  • With the change of the smoke, the returned value gets bigger with the growing of the smoke concentration.

37.6. Relevant Cases


37.7. Technical File
