5. Ring:bit Introduction#

5.1. Expansion Board of Ring:bit car 2#

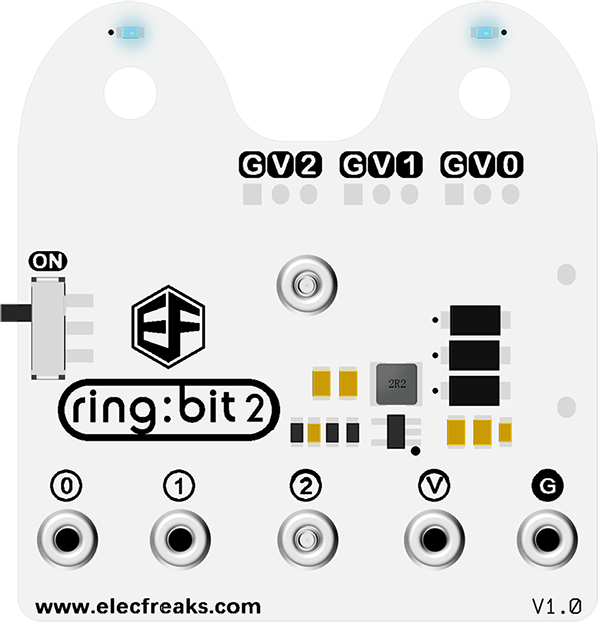

  • The Ring:bit expansion board is a simple PCB for the micro:bit. The Ring:bit extends the micro:bit’s 3 GPIO ports. We will use this module to convert the P0/P1/P2 port to the common GVS port. It can be loaded 3 AAA batteries to drive the car or other components.

../../_images/9hlUnYx.png

5.2. The Special Expansion Board of Ring:bit car 2#

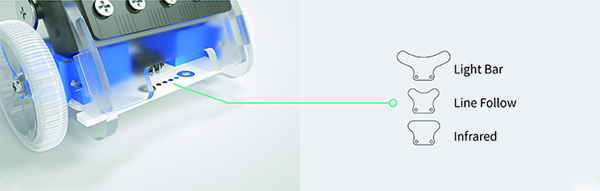

  • The Special Expansion Board of Ring:bit car 2 is for adding extendibility of Ring:bit car. With two Rainbow LEDs and a special expanded port for special expansion module connection.

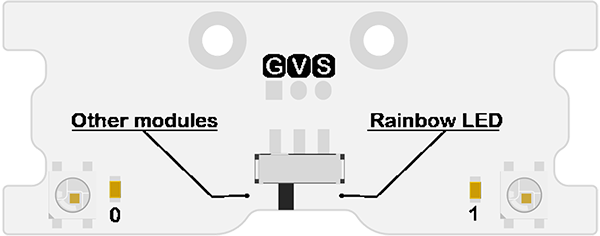

  • There is a slide switch on the board, slide it to “Rainbow LED” for using of two Rainbow LEDs; slide the switch to the “Other modules” for using other modules. Please note that these can not be operated at the same time.

../../_images/74l1cY4.png

../../_images/MVoGDx1.jpg
