24. Octopus Temperature Sensor Brick TMP36

24.1. Introduction

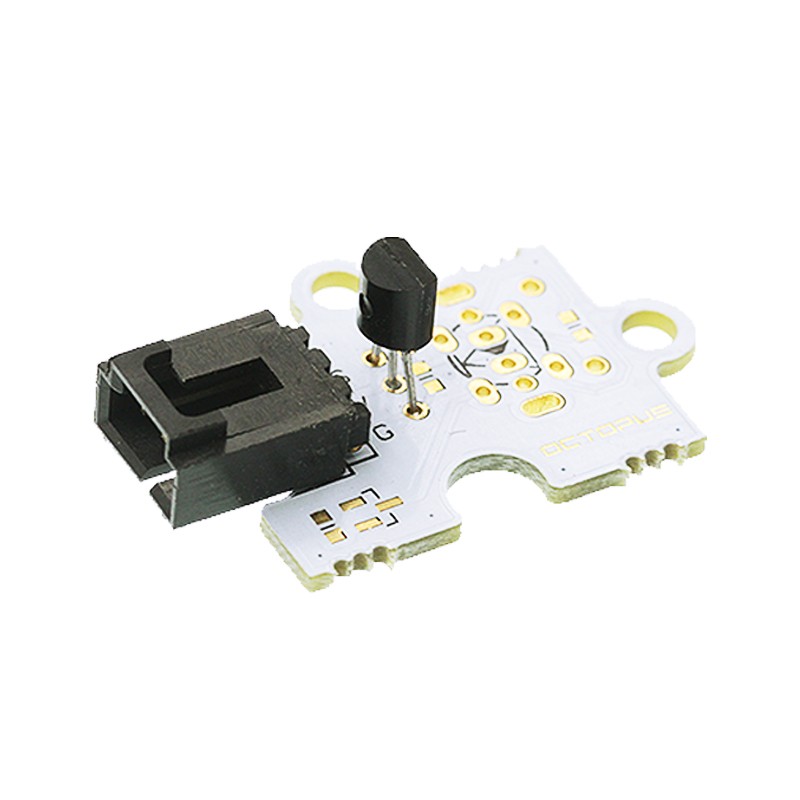

Octopus TMP36 Temperature Sensor Brick is a temperature sensor with low voltage and accurate Celsius read. It can provide voltage output,which forms a linear relationship with Celsius temperature.

../../_images/zqYYROQ.jpg

24.2. Characteristics


The 3-pins ports is easy to plug and play.

24.3. Specifications

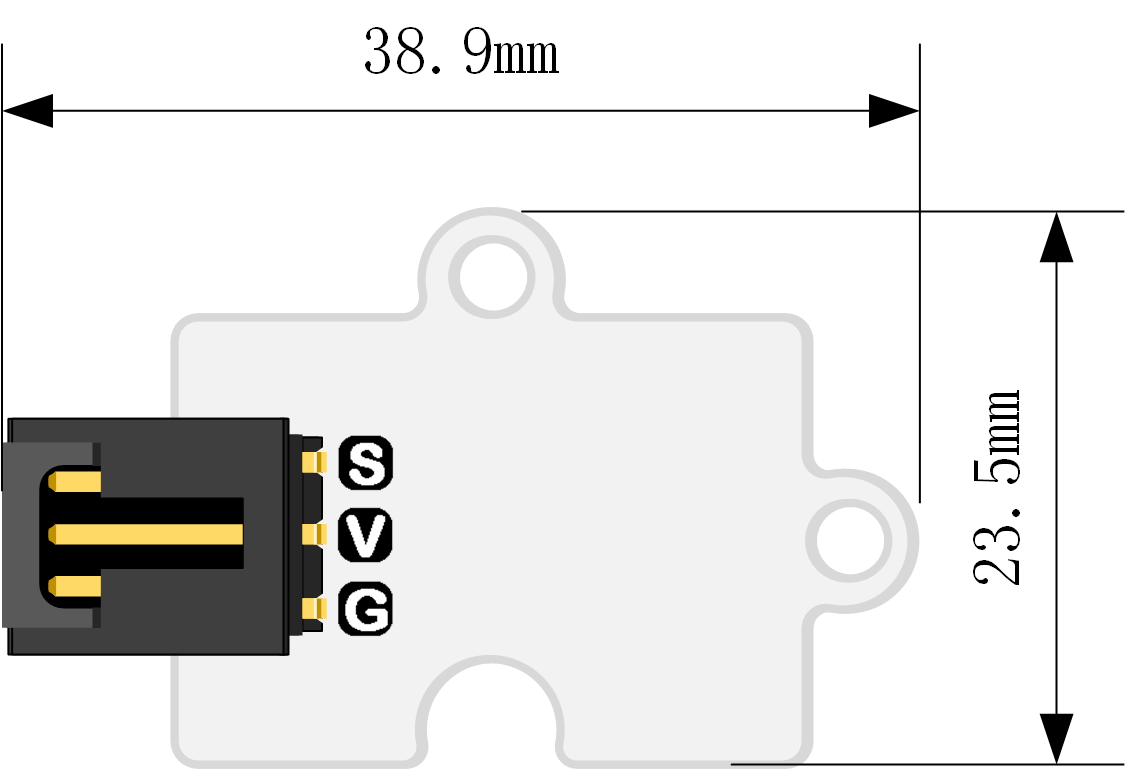

24.4. Outlook and Dimensions


../../_images/e5NlyhB.png

24.5. Quick to Start

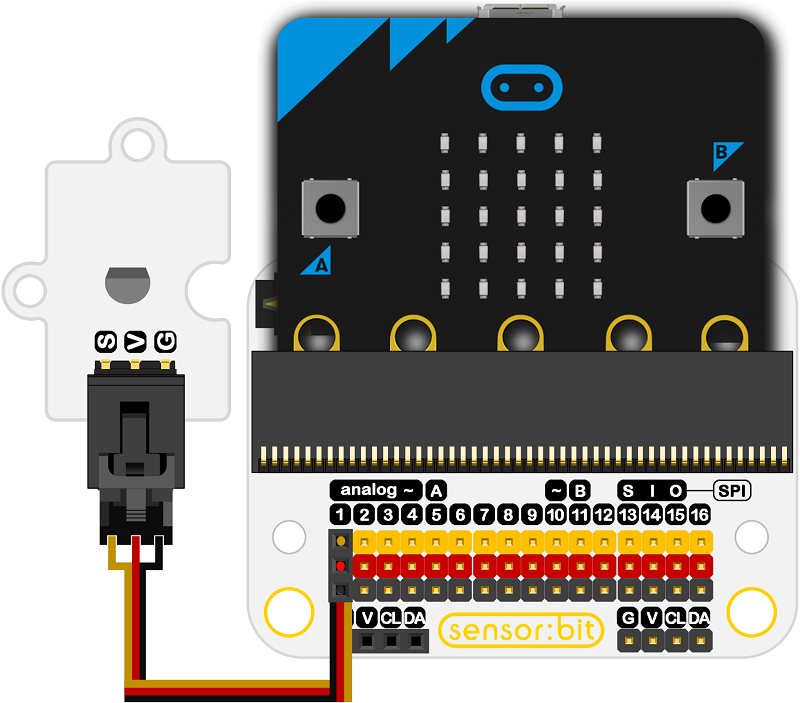

Materials used and connection diagram

Connect to the P1 port

Take sensor:bit for example

../../_images/bLgrtiX.png

Add Package

Click “Advanced”in the choice of the MakeCode to find more choices.

../../_images/smtcNoB2.png

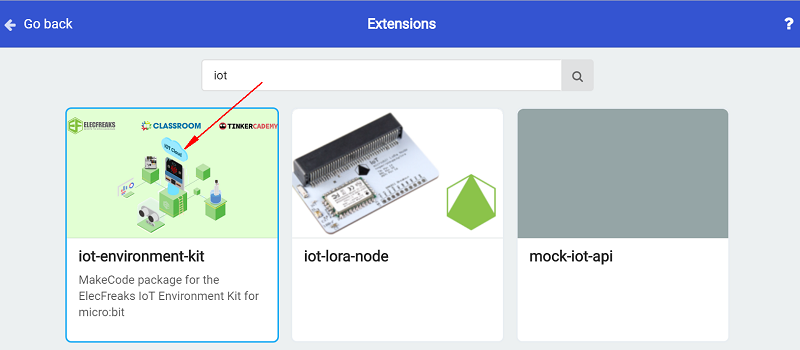

Click “Extensions”, search “iot”in the dialog box and then download it.

../../_images/dsPDNvD.png

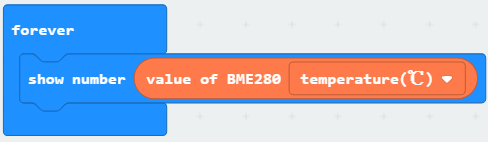

Program as the picture shows

  1. Choose the display brick for the micro:bit.

  2. Choose the function of showing the temperature from the IoT package.

  3. The temperature is showing on the micro:bit.

../../_images/PvPxhtr.png

Reference


Links:https://makecode.microbit.org/_URRdVrPFX68R

You can also download the links below:

---

Result

  • The current temperature is showing on the micro:bit.

24.6. Relevant Cases


24.7. Technique Files


Item | Parameter :-: | :-: SKU|EF04079 Accuracy|±2°C(Typical value) Linearity|±0.5°C(Typical value) Working Voltage |2.7V~5.5V Thermal Effect Index |When power currency lower than 50 μA Nominated Temperature Measuring Range|-40 °C to +125 °C, working temperature can be up to +150 °C. Ratio Coefficient|+ 10 mV /°C Static Current|Below 50μA Turn Off Current|Max 0.5μA
