16. Octopus Rain/Steam Sensor

16.1. Introduction

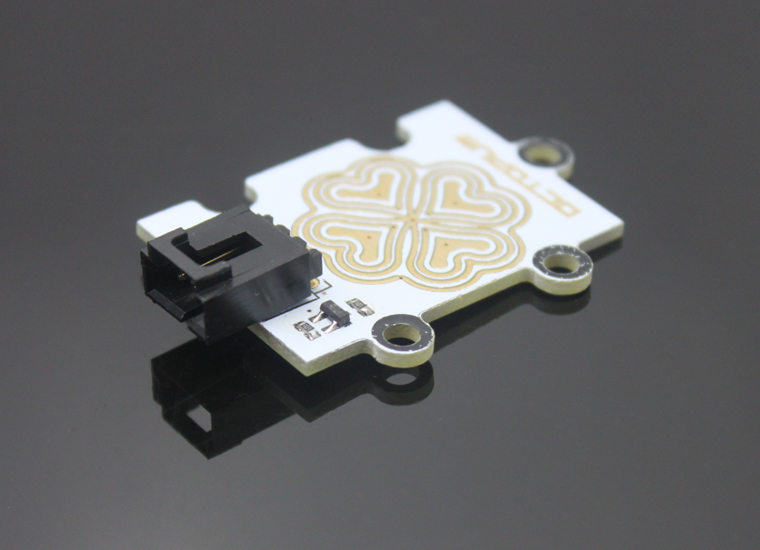

This is a Rain/steam sensor from ElecFreaks, the output voltage will increase when the humidity of the sensor surface goes up, thus to detect the change of the humidity.

../../_images/4tWL14e.jpg

16.2. Characteristics


  • The 3-pins ports is easy to plug and play.

  • It can work with micro:bit in 3V.

16.3. Specifications


Item Parameter
SKU EF04024
Power Input 3V-5.5V
Connector Type Analog
Pins Definition 1-Signal 2-VCC 3-GND
Response Quick response with high sensitivity
Circuit Simple
Stablity Stable and durable

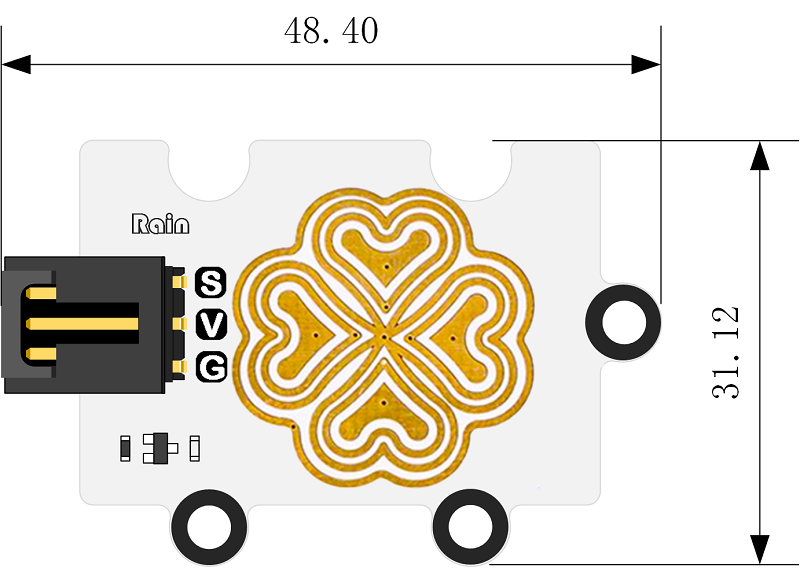

16.4. Outlook and Dimensions


../../_images/xpNQNBG.png

16.5. Quick to Start

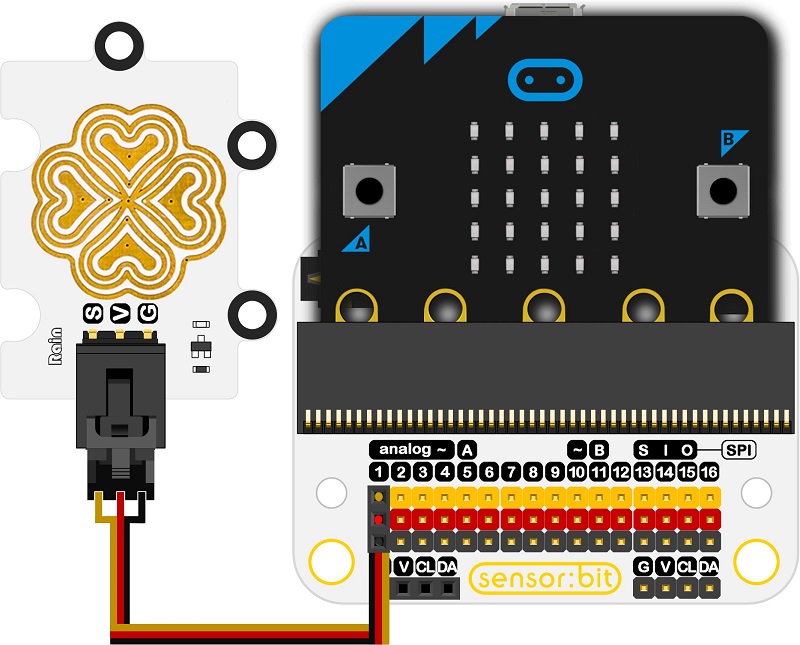

Materials used and connection diagram

  • Connect to the P1 port as the picture shows

Take sensor:bit for example

../../_images/ai3lZZE.jpg

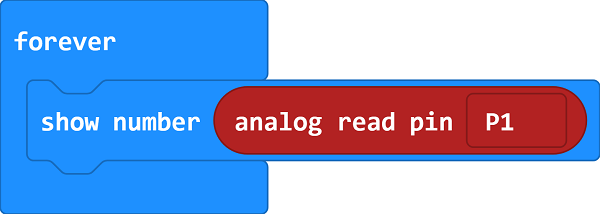

Program as the picture shows:

  • Analog read to P1 port and show the value on the micro:bit.

../../_images/JQBCxSv.png

Reference

Links: https://makecode.microbit.org/_7cm75DbwJEaY You can also download the links below:

Result

  • The current amount of precipitation is scrolling on the micro:bit.
