52. Case 51: Lifting Dry Rack#

52.1. Introduction#

When we do our daily chores, washing clothes should be considered a task that we often have to do, especially after washing clothes in the washing machine, drying clothes on top of a high drying rack is particularly laborious. Well, in order to solve this trouble, we do a lifting drying rack here, which not only can help us save physical strength, but also give us the experience of the way that is getting changed from the technology.

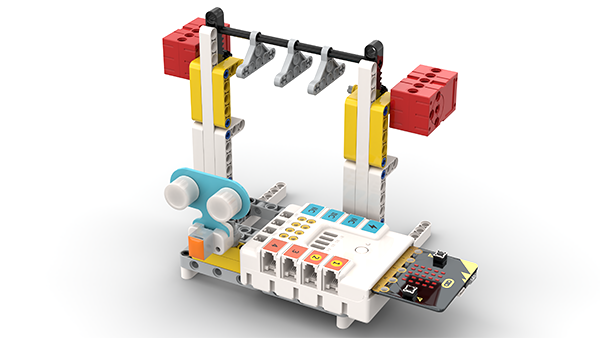

../../_images/51_1.png

Materials Required#

Nezha expansion board × 1

micro:bit V2 × 1

Ultrasonic sensor × 1

RJ11 cable × 1

Bricks × n

Note: If you want all of the above components, you may purchase the Nezha 48 IN 1 Inventor’s Kit.

Assembly Steps#

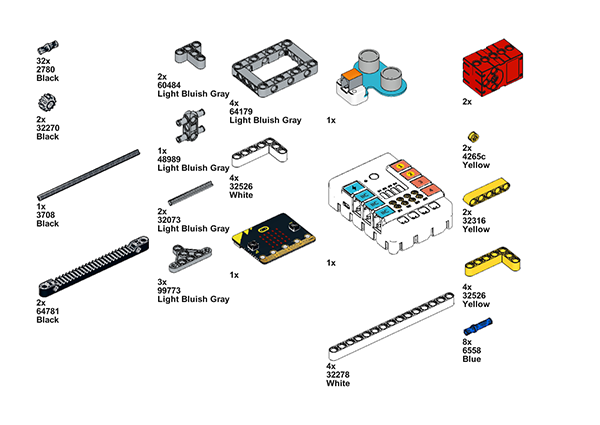

Component Details

../../_images/51_2.png

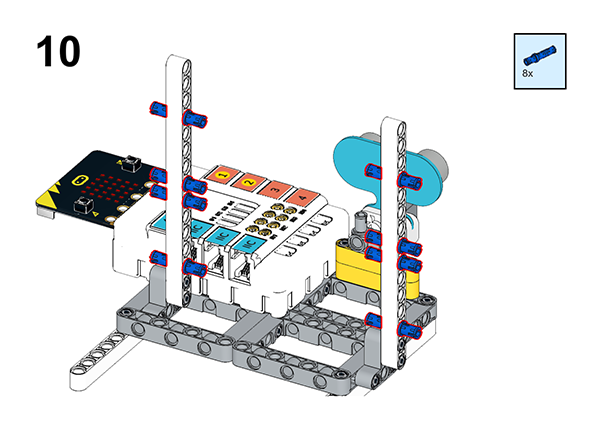

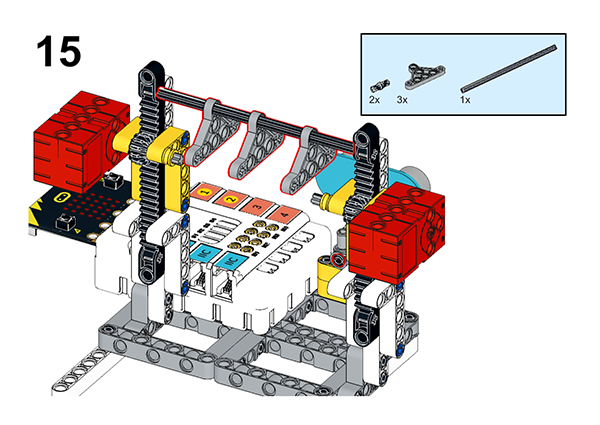

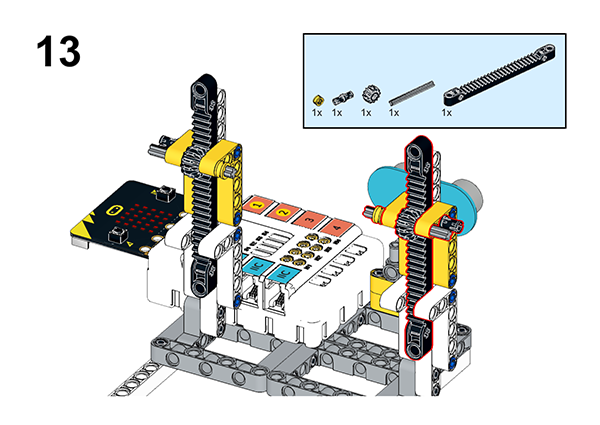

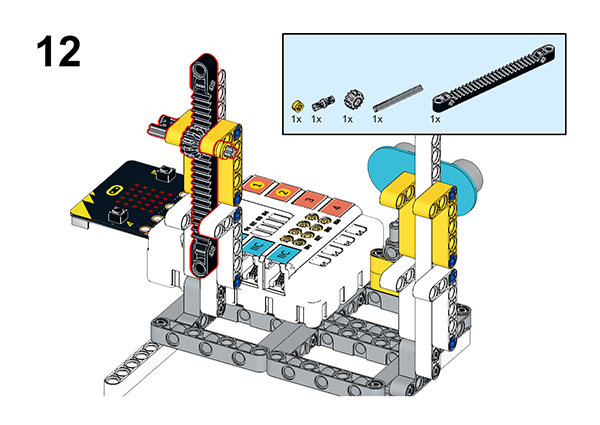

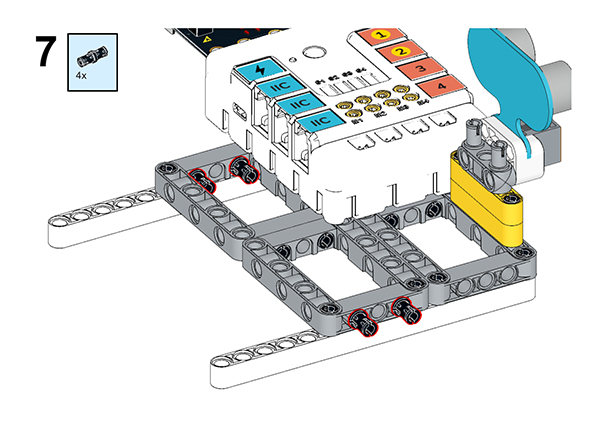

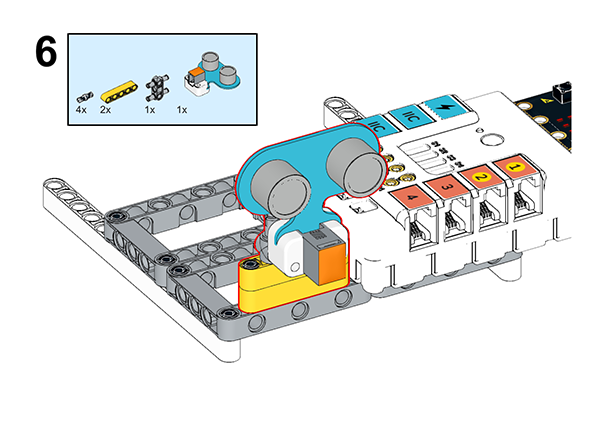

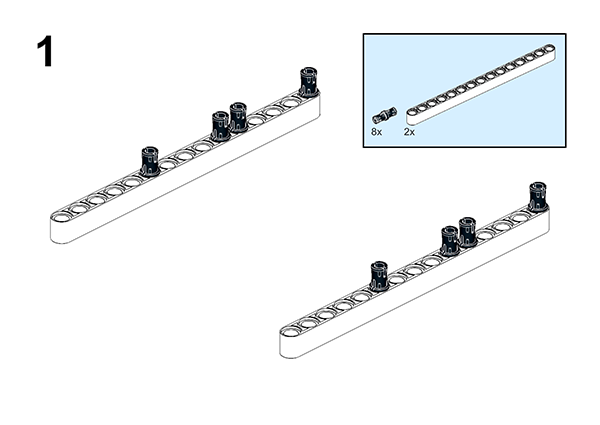

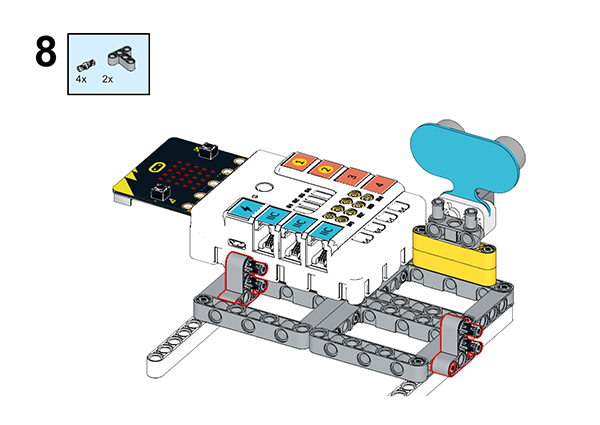

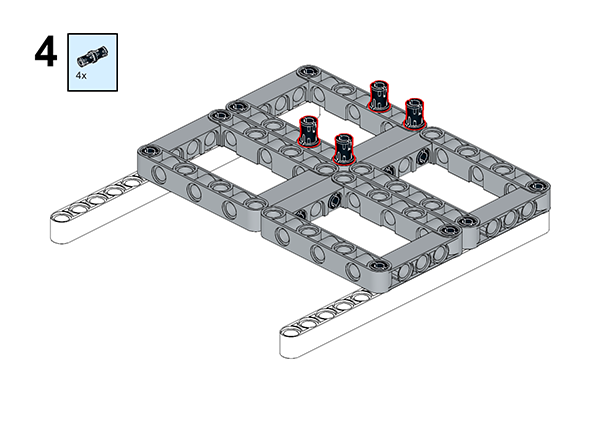

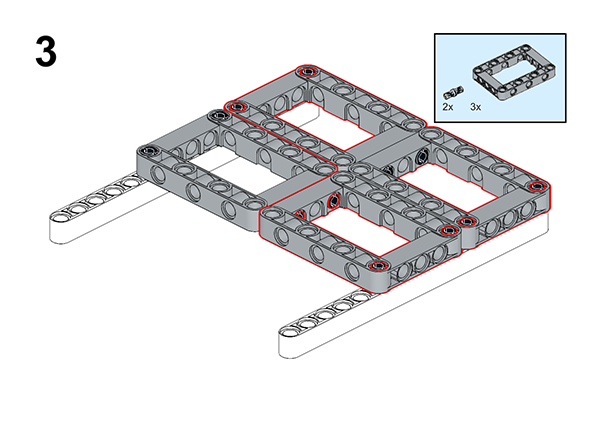

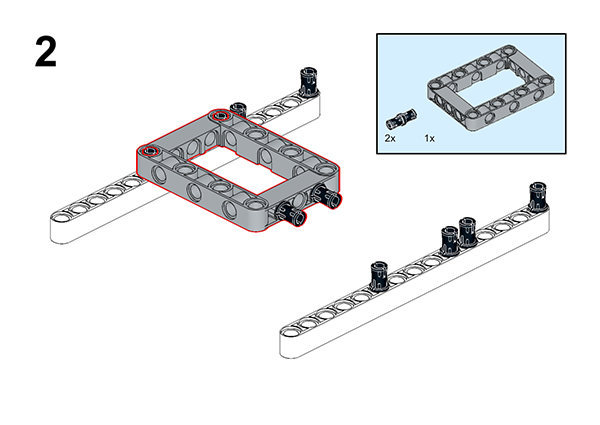

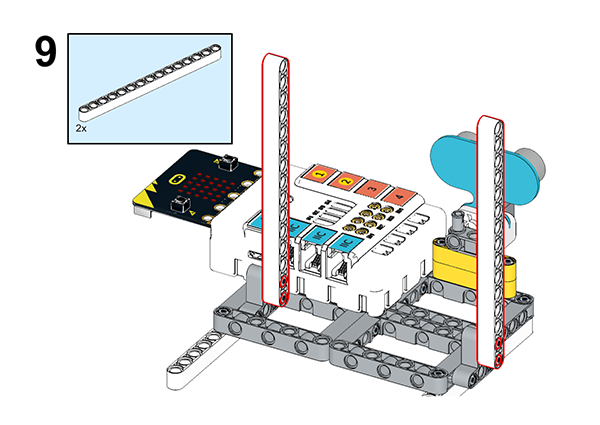

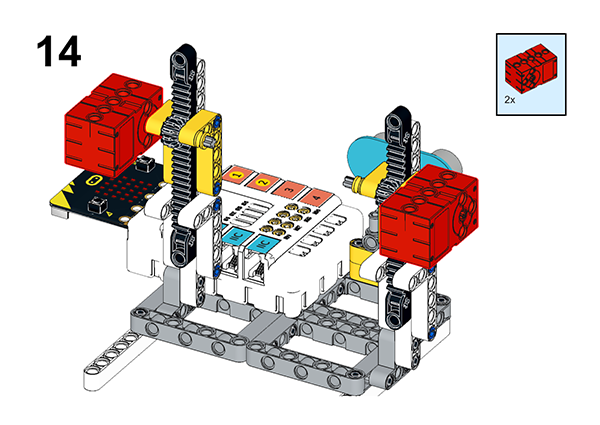

Build it as the assembly steps suggest:

../../_images/51_3.png

../../_images/51_4.png

../../_images/51_5.png

../../_images/51_6.png

../../_images/51_7.png

../../_images/51_8.png

../../_images/51_9.png

../../_images/51_10.png

../../_images/51_11.png

../../_images/51_12.png

../../_images/51_13.png

../../_images/51_14.png

../../_images/51_15.png

../../_images/51_16.png

../../_images/51_17.png

52.2. Connection Diagram#

Connect the two motors to the M1 and M4 , and the ultrasonic sensor to the J1, as the diagram suggests.

../../_images/51_18.png

52.3. MakeCode Programming#

Step 1#

Click “Advanced” in the MakeCode drawer to see more choices.

../../_images/49_10.png

For programming the servo, we need to add a package. Click “Extensions” at the bottom of the drawer and search with “nezha” to download it.

../../_images/49_11.png

For programming the PIR sensor, we need to add a package. Search with “PlanetX” in the dialogue box and click to download it.

../../_images/49_12.png

Notice: If you met a tip indicating that some codebases would be deleted due to incompatibility, you may continue as the tips say or create a new project in the menu.

Reference#

../../_images/51_19.png

Link: https://makecode.microbit.org/_h9DHW1dEa6rT

You may also download it directly:

Result#

When we want to dry the clothes, press the A button, the drying rack will drop, and when the clothes rack is placed on the drying rod, the drying rack will automatically rise.
