17. Octopus Soil Moisture Sensor Brick

17.1. Introduction


  • Octopus Soil Moisture Sensor Brick can read the amount of moisture present in the soil surrounding it.

../../_images/6eULTGI.jpg

17.2. Characteristics


  • The 3-pins ports is easy to plug and play.

  • It can work with micro:bit in 3V.

17.3. Specifications


Item | Parameter
:-: | :-: SKU|EF04027 Power Input|3V-5.5V Connector Type |Analog Pins Definition|1-Signal 2-VCC 3-GND Response|Quick response with high sensitivity Circuit|Simple Stability|Stable and durable

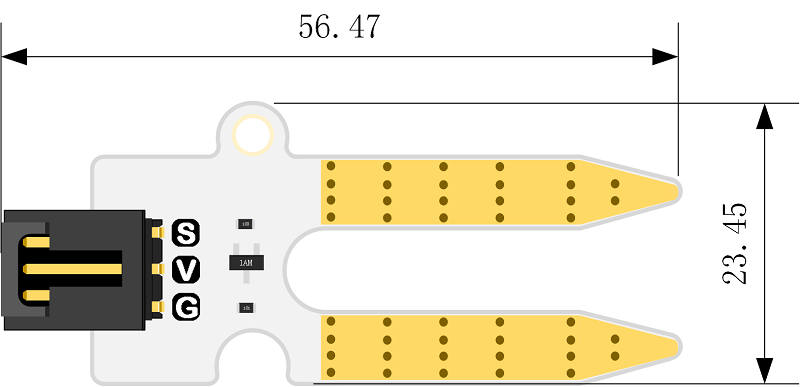

17.4. Outlook and Dimensions


../../_images/fNkBc5w.png

17.5. Quick to Start


Materials used and connection diagram

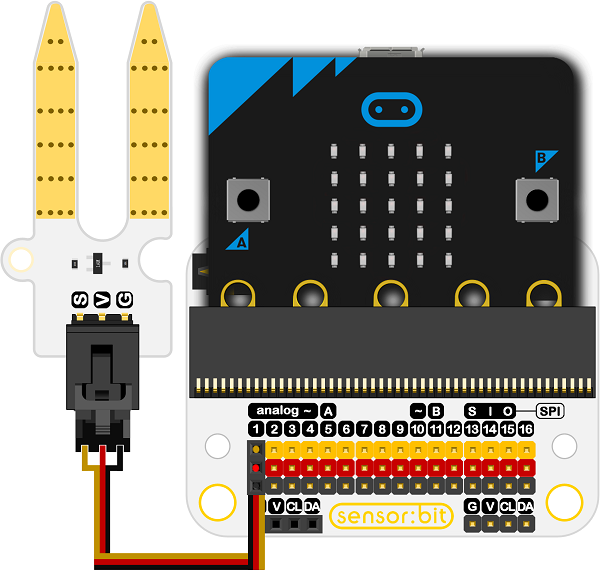

  • Connect to the P1 port as the picture shows

    Take sensor:bit for example

../../_images/gcLtAb7.png

Add Package

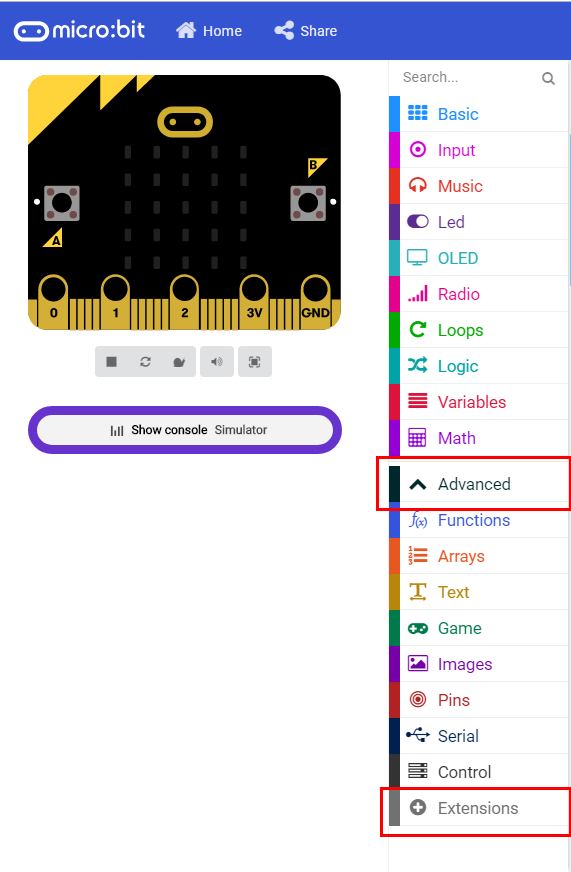

Click “Advanced”in the choice of the MakeCode to find more choices.

Program as the picture shows

  • The soil moisture is showing on the micro:bit circularly.

../../_images/RH35ccB.png

Reference

Links: https://makecode.microbit.org/_X3xXFcTkMUex You can also download the links below:

---

Result

  • The soil moisture is showing on the micro:bit after inserting the module into the soil.

../../_images/smtcNoB2.png

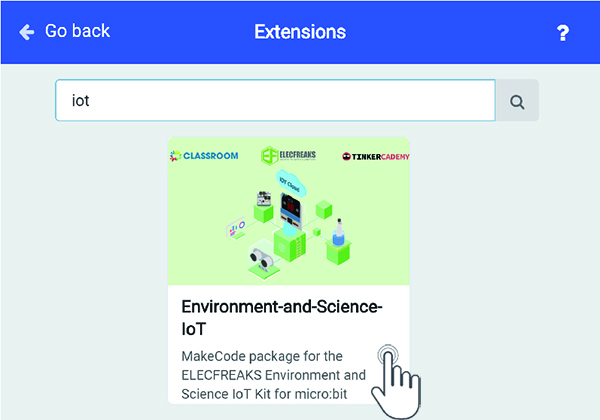

  • Click “Extensions”, search “iot”in the dialog box and then download it.

../../_images/AaZxCEb1.jpg

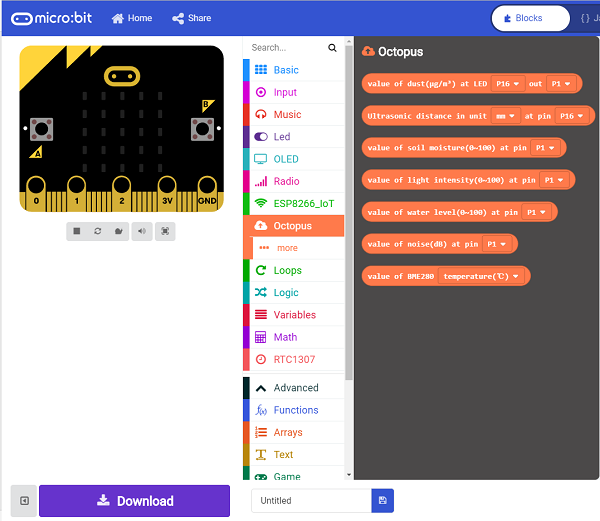

../../_images/KBD2b39.png
