8. case 08 Bluetooth remote control#


  • On the basic of Mbot car car, with Robit car board and use mobile devices to driving the car move by bluetooth.

8.1. Requiered Materials#


  • 1 x Robit

  • 1 x Mbot Car

  • 1 x bitty controller

8.2. Background#


  • Bluetooth® is a wireless technology standard for exchanging data over short distances (using short-wavelength UHF radio waves in the ISM band from 2.4 to 2.485 GHz[3]) from fixed and mobile devices, and building personal area networks (PANs). We can use Bluettoth to connect multiple devices which resolves the difficulty of simultanuous data transmission.

  • Bittysoftware provides mobile apps and tools for devices like BBC micro:bit.

Bluetooth event#

An event be triggered ever since received a message from bluetooth. And the further dealing is based on the event.

The event is divided into source and event value. To judge the event by the source.

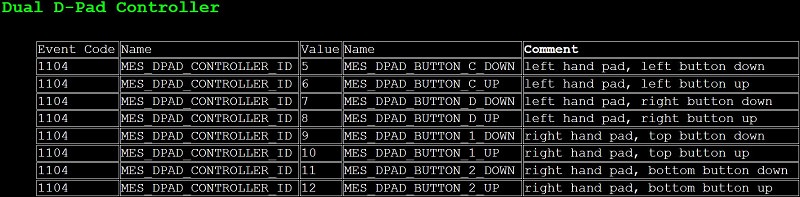

The D-Pad control handle table as below:

../../_images/hrxqpWo1.jpg

8.3. Software#


  • Enter intoMakecode for online block coding.

8.4. Operation#


Step 1:APP preparation#

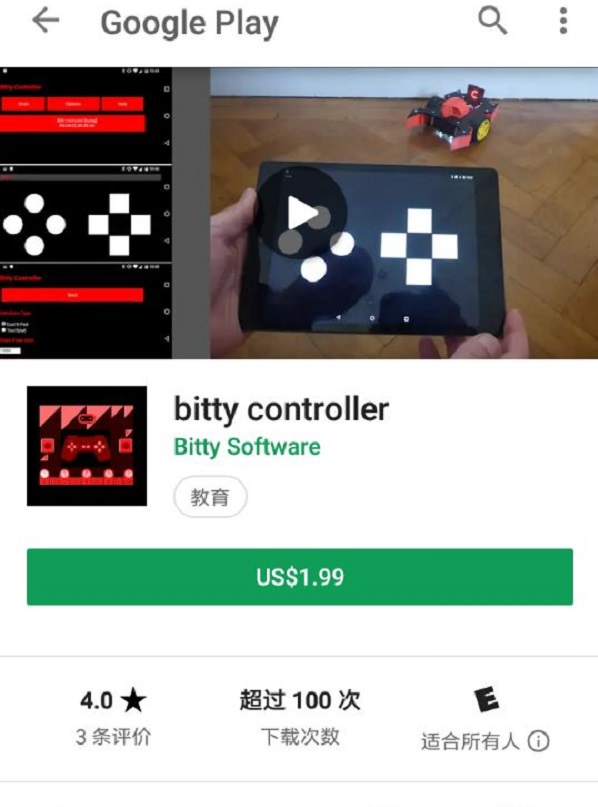

  1. Android:Download bitty controller in Google play;

../../_images/G5QfQbn.jpg

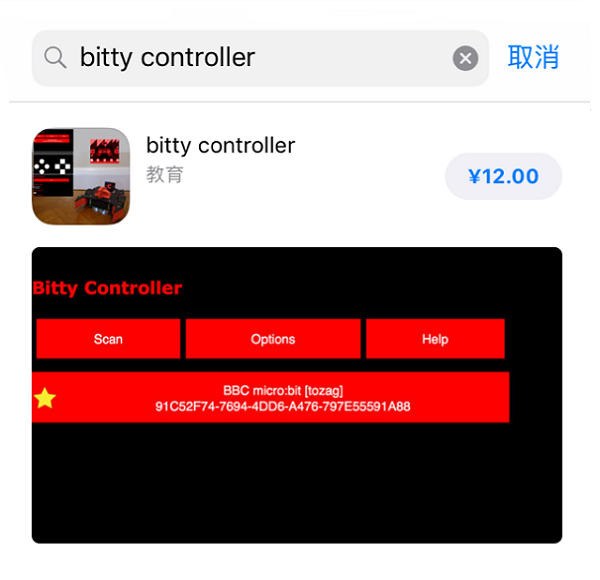

  1. IOS:Download bitty controller in APP store.

../../_images/TMzv3zK.png

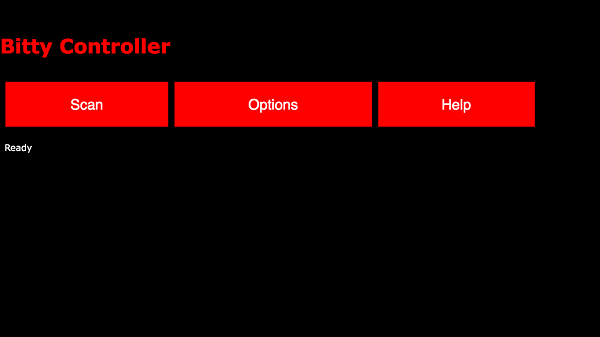

  • App Interface as below pictures:

../../_images/ZvHqv7T1.png

Note: It is need other software to connect bluetooth because limit in IOS.

Please refer to 《How to Use Bluetooth IOS system》

Step 2:Set bluetooth#

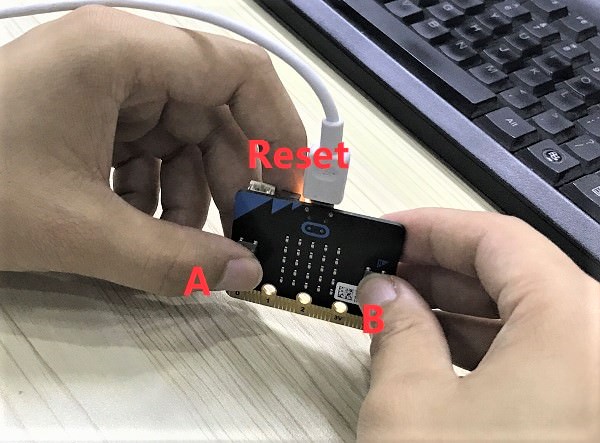

You need to press A and B at the same time and then press the reset to start bluetooth mode of micro:bit. PAIRING MODE! and a special symbol will show in the 5X5 allay. The special symbol is for bluetooth which is different from every micro:bit

../../_images/ceES90z1.jpg

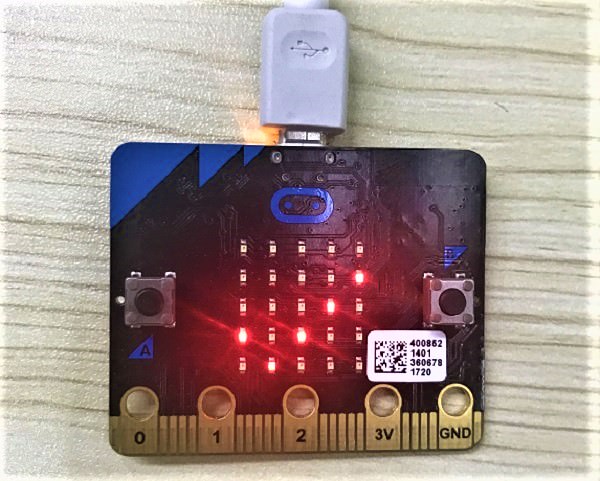

A “√” will show in the 5X5 allay when the IOS devices & Android devices is connecting to bluetooth.

../../_images/5luUYc71.jpg

Step 3:Add Package#

Click on “Advanced” in the MakeCode Drawer to see more code sections.

../../_images/LjMR5IU2.png

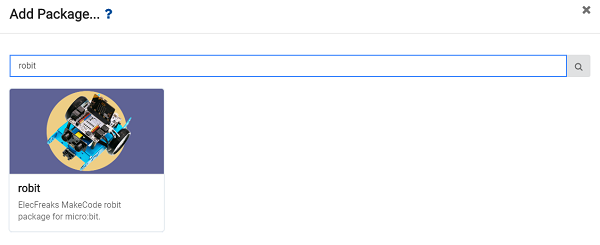

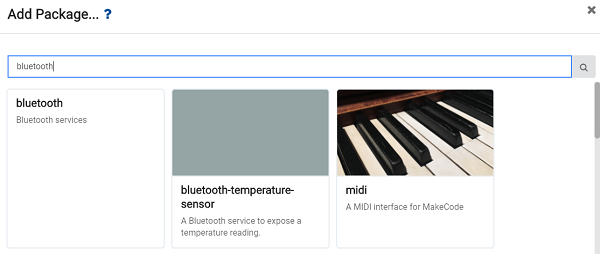

We need a new package for coding to bluetooth and Robit. Click on “Add Package” at the bottom of the code block and search for “bluetooth” and “Robit” to add them to your project.

../../_images/ZNxv964.png

../../_images/1lMfnn4.png

Note: If you get a warning telling you some packages will be removed because of incompatibility issues, either follow the prompts or create a new project in the Project file menu.

Step 4:Coding block#

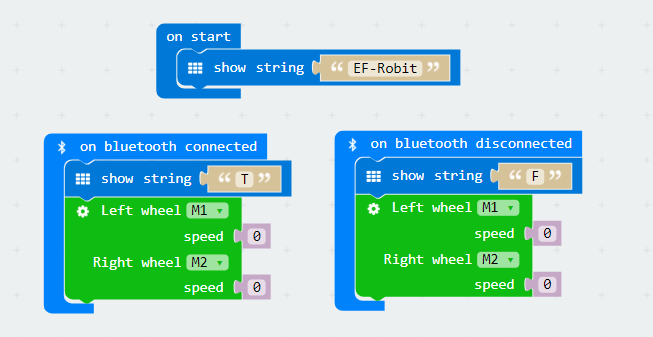

The EF-Robot title is displayed during initialization. When the Bluetooth connection is connected, the 5X5 allay LED displays T, and the Bluetooth connection is disconnected, the 5X5 allay displays F.

To avoiding negtive effects by wrong operation, set the rotation speed to 0.

../../_images/ptJPPo7.png

Set start block and the event source to MES_DPAD_CONTROLLER_ID, it is also a handle panel of APP.

Event information is MICROBIT_EVT_ANY to receive all informations.

If the event information is MES_DPAD_BUTTON_A_DOWN, refer to bluetooth event information table,known that the information is pressed by the left arrow key, so the running state is set to 1 (move forward state), and the left and right wheel motors are set to advance at full speed.

If the event information is MES_DPAD_BUTTON_A_UP,refer to bluetooth event information table,known that the information is up by the left arrow key, so the running state is set to 0(stop state),and the left and right wheel motors are set to stop.

../../_images/u5xSL6S.png

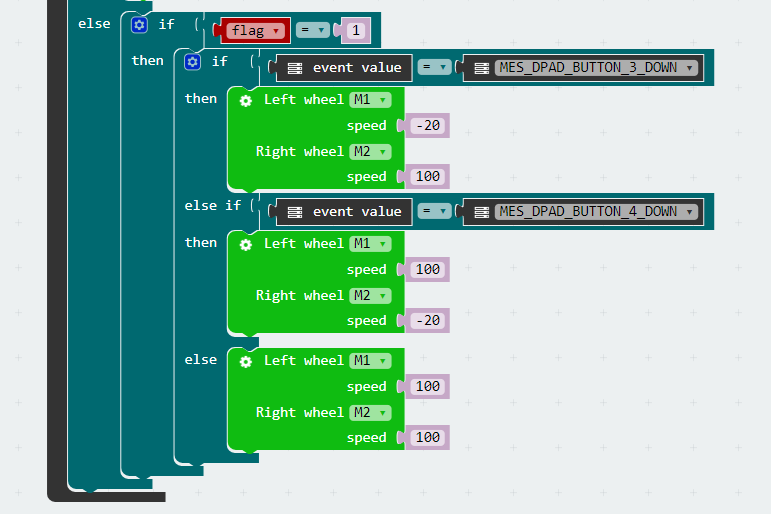

If the event information isMES_DPAD_BUTTON_3_DOWN when the flag is at the state of 1 forward. Take reference to bluetooth event information table, known that the information is pressed by the right arrow key, the left wheel are set to reverse and the right wheel set to turn left.

If the event information is MES_DPAD_BUTTON_4_DOWN when the flag is at the state of 1 forward. Take reference to bluetooth event information table, known that the information is pressed by the right arrow key, the right wheel set to reverse and the left wheel set to turn left.

If the received event information is neither as above when the flag is at the state of 1 forward. Then set the left wheel and right wheel move forward at 100 speed.

../../_images/wBJglqA.png

Step 5:Bluetooth connection#

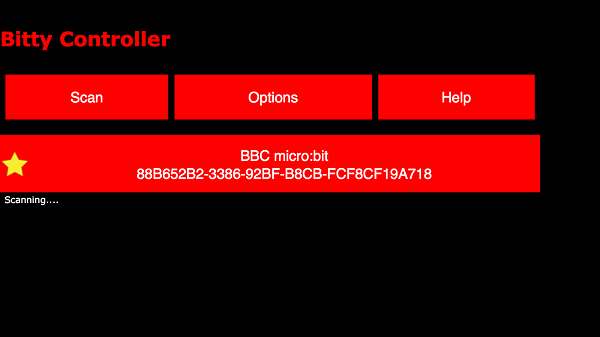

After the micro:bit was set to bluetooth mode and connect to bluetooth. Click on scan of APP to get micro:bit.

../../_images/rLS50GM1.png

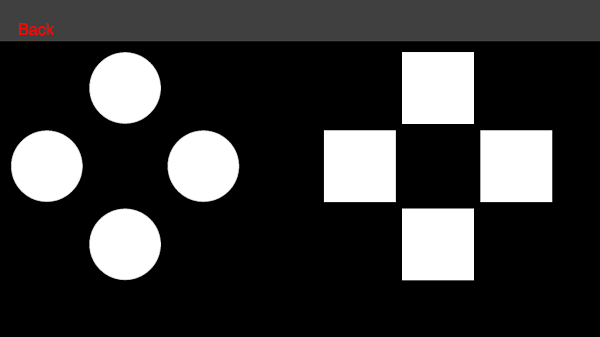

As below picture, enter in handle mode.

../../_images/gHhTTr9.png

Have fun!!!

Note: bitty controller operationmicro:bit foundation

Program#

Program link: https://makecode.microbit.org/_csTEMLE3vgmr

Note:If you get a warning telling you some packages will be removed because of incompatibility issues, either follow the prompts or create a new project in the Project file menu.

Note: When the speed design is too low, it may affect the motor rotation.

8.5. Result#


T is showing on bluetooth connecting, F is showing on bluetooth disconnecting.

The left button of the control panel controls the car to move forward, and the right and left buttons control the steering.

8.6. Think#


How do we code for car reverse ?
