12. Octopus 5mm LED Brick - Red

12.1. Introduction

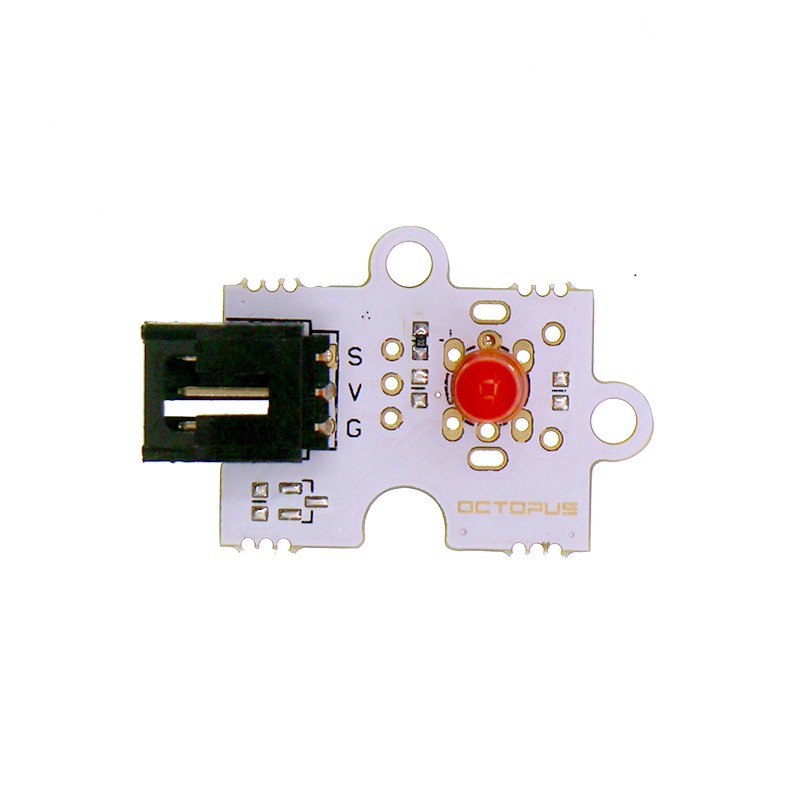

Octopus 5mmLED light Brick can be used in the interaction with the light works with micro:bit/Arduino.

../../_images/wFy2h7R.jpg

12.2. Characteristics


  • The 3-pins ports is easy to plug and play.

12.3. Specifications


Item | Parameter :-: | :-: SKU|EF04063 Working Voltage|3.3V-5V Weight|5g

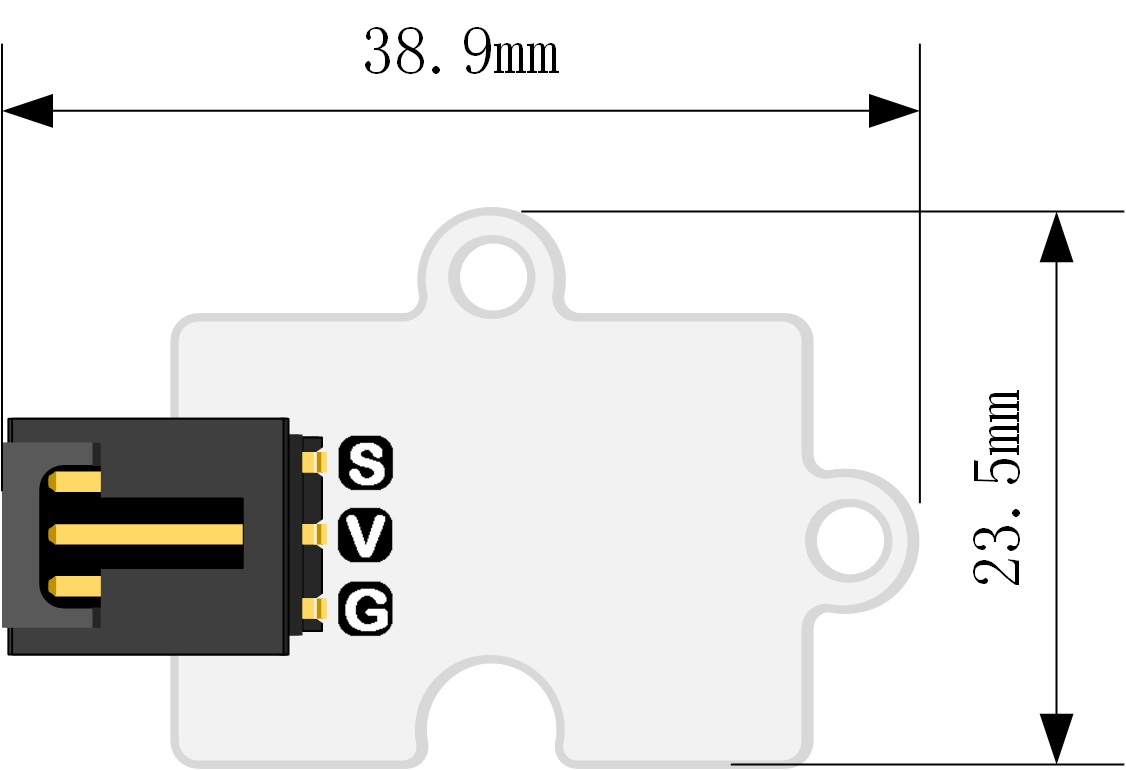

12.4. Outlook and Dimensions


../../_images/XjX2TBL.png

12.5. Quick to Start

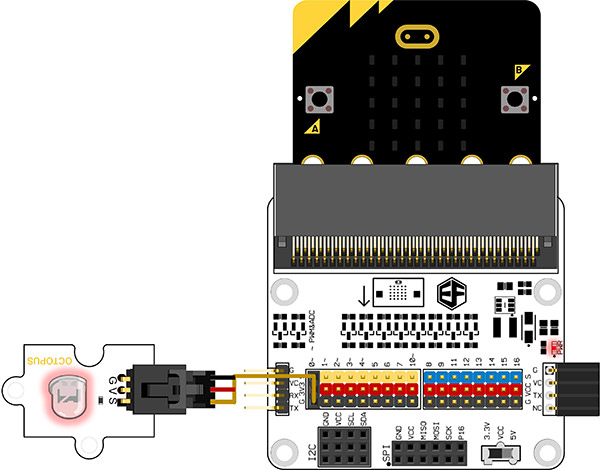

Materials used and connection diagram

  • Connect to the P0 port

    Take octupus:bit for example

../../_images/iXIOMNJ.jpg

Add Package

Program as the picture shows

  • Digital write pin P0 to 1 and 0 one second later.

../../_images/AAzv9pn.png

Reference

Links:https://makecode.microbit.org/_J82V5PgzghKR

You can also download the links below:

---

Result

  • LED flashes each second.

12.6. Relevant Cases


12.7. Technique Files
