2. Wear:bit

2.1. Introduction


Wear:bit button panel Pro is a mini extension board in small size.

It can give power to the micro:bit and is loaded with buzzer which can be used with our watch strap and the micro:bit. The breakthroughs are:

Simplify the installation without using the acrylic back shroud.

Maintain a simple style with 3-pin ports canceled.

Upgrade the function by adding a switch for the buzzer.

2.2. Characteristic


  • Powered by two 3V CR2025 lithium batteries.

  • Loaded with a buzzer that is controlled through P0 port.

  • Loaded with a buzzer switch.

  • It can be used with the watch strap and the micro:bit.

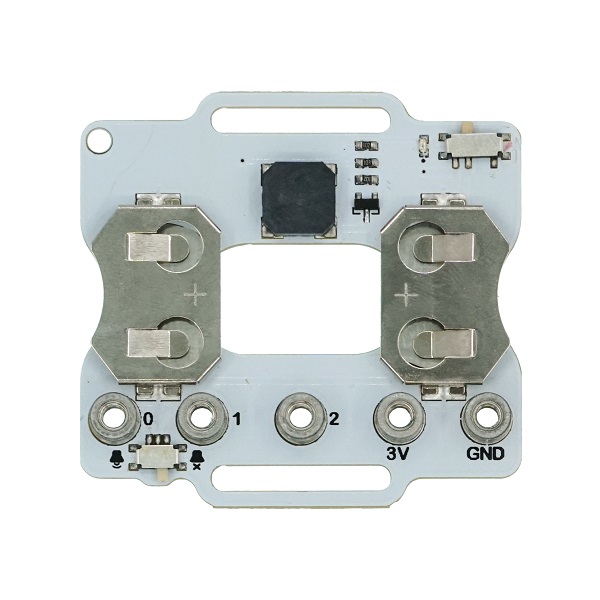

2.3. Outlook and Dimension


https://raw.githubusercontent.com/elecfreaks/learn-en/master/microbitKit/smart_coding_kit/images/wear_bit_00.jpg

2.4. Parameter


  • Name: Wear:bit

  • Version: V1.0

  • Working Voltage: 2.7~3.3V

  • Buzzer: Support

  • Size: 49.1x51.6mm

  • Net Weight:12.7g

2.5. Introduction to Main Modules

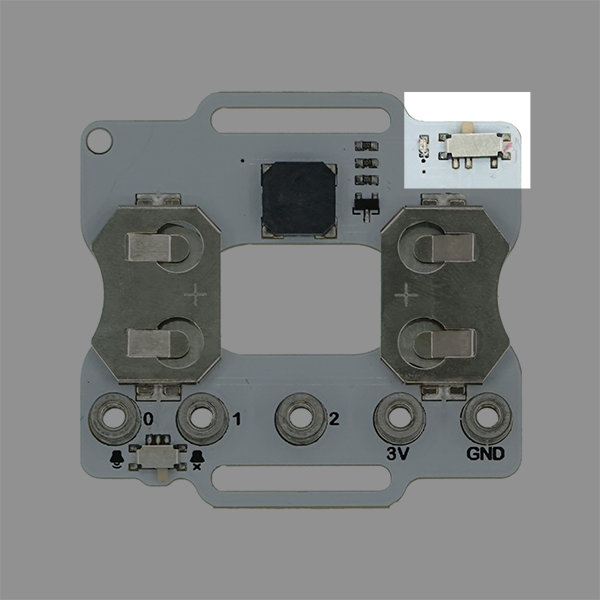

Power Switch

“I” to switch on, “O” to switch off.

https://raw.githubusercontent.com/elecfreaks/learn-en/master/microbitKit/smart_coding_kit/images/wear_bit_01.png

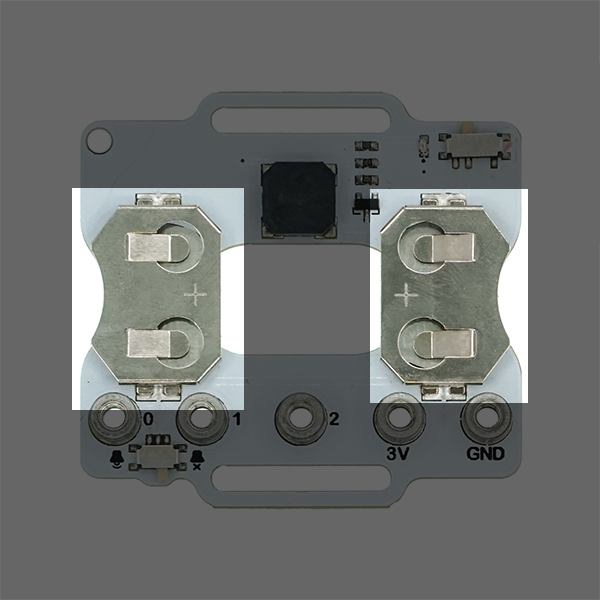

Two CR2025 Battery Holders

It is powered by 2025 button cells(3V Li-Mn button cells) with a simple installation method.

https://raw.githubusercontent.com/elecfreaks/learn-en/master/microbitKit/smart_coding_kit/images/wear_bit_02.png

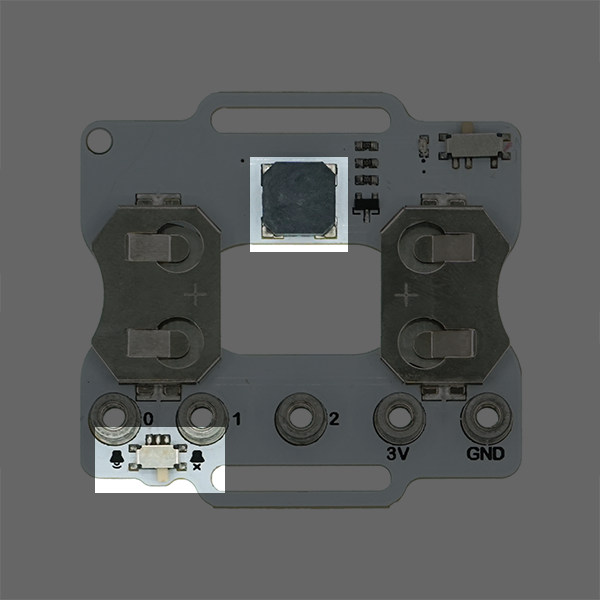

Buzzer and Switch

The buzzer is controlled through P0 port that can play music. The switch powers the buzzer on or off.

https://raw.githubusercontent.com/elecfreaks/learn-en/master/microbitKit/smart_coding_kit/images/wear_bit_03.png

2.6. Quick to Start


Hardware Connection

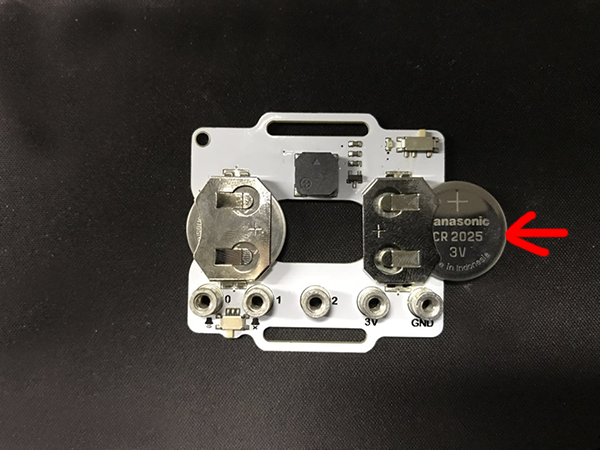

Install two 3V 2025 button cells to the battery holder of the Wear:bit extension board.

https://raw.githubusercontent.com/elecfreaks/learn-en/master/microbitKit/smart_coding_kit/images/smart_coding_kit_01.png

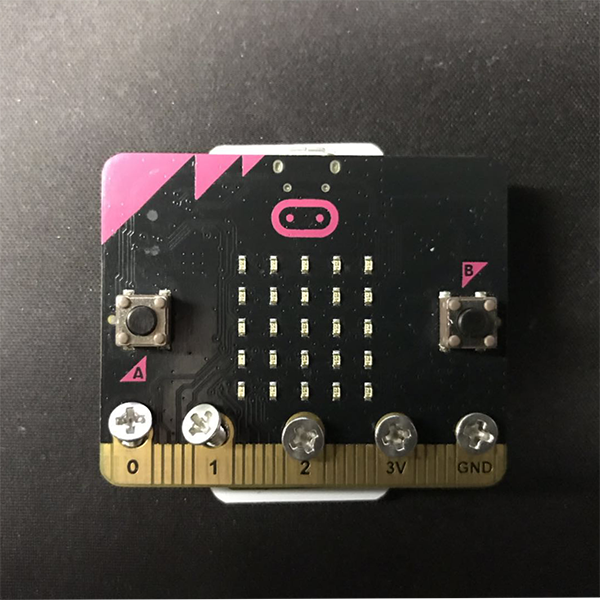

Fix the micro:bit to the button cell extension board Pro with screws.

https://raw.githubusercontent.com/elecfreaks/learn-en/master/microbitKit/smart_coding_kit/images/smart_coding_kit_02.png

When switching on, the cells give power to the micro:bit and the Wear:bit, or the cells do not give power.

https://raw.githubusercontent.com/elecfreaks/learn-en/master/microbitKit/smart_coding_kit/images/wear_bit_06.png

If slide the buzzer switch to the left side, the buzzer begins working; while to the right side, the buzzer stops working.

https://raw.githubusercontent.com/elecfreaks/learn-en/master/microbitKit/smart_coding_kit/images/wear_bit_07.png

Software Programming

Open Makecode, programme to make micro:bit show heart in a flash way.

Link: https://makecode.microbit.org/_MP28fbDmUMfz

You can also download it below:

Result

A flash heart pattern is showing on the micro:bit.
