28. Octopus Light Sensor

28.1. Introduction

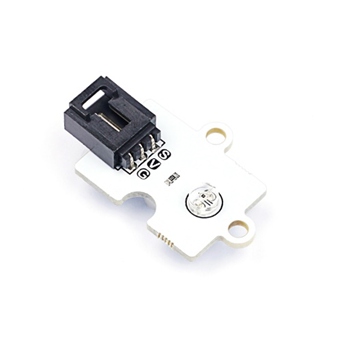

  • Octopus Light Sensor Brick can detect the light value of the current environment. It is in a small volume with a low power consumption and it is very easy to operate with good performance.

../../_images/04092_01.jpg

28.2. Characteristics


28.3. Specification


Item Parameter
SKU EF04092
Power Supply 3V-5.5V
Connection Type Analog
Pins Definition 1-Signal 2-VCC 3-GND
Response Quick response
Circuit Simple drive circuit
Stability Stable and durable

28.4. Outlook and Dimension


../../_images/cdNd1Kw.png

28.5. Quick to Start

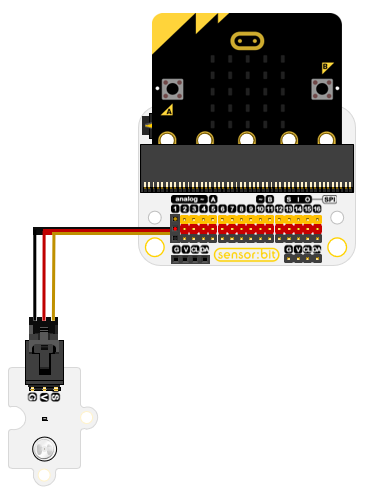

Materials required and connections diagram

  • Connect to P1 port as the picture shows.

../../_images/04092_02.png

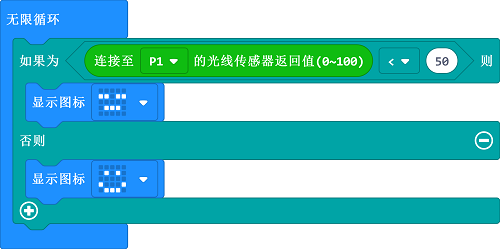

Program as the picture shows

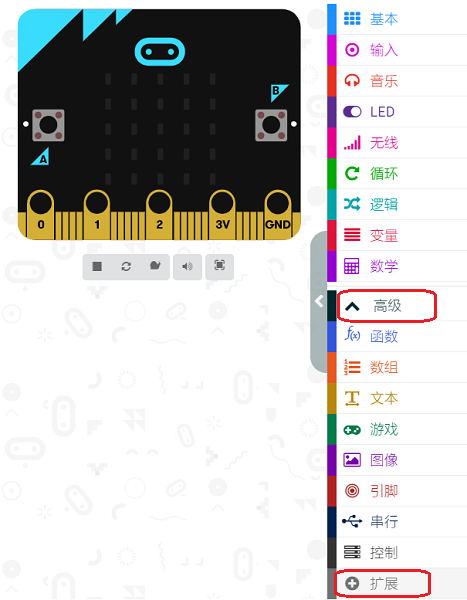

Click “Advanced” in the drawer of the MakeCode to see more choices.

../../_images/04092_03.png

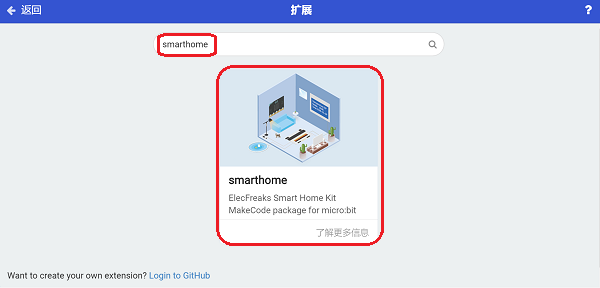

We need to add a package for programming, click “Extensions” on the bottom of the drawer and search with “smarthomer“ in the dialogue box to download it.

../../_images/04092_04.png

Note: If you met a tip indicating codebase will be deleted due to incompatibility, you may continue as the tips tell or build a new project.

../../_images/04092_05.png

Reference

Link:https://makecode.microbit.org/_iMH0jK6quc2j

You can also download it directly:

---

Result

  • If the light intensity is below 50, it shows the specified icons or it shows a “smile” face.

28.6. Relevant Cases


28.7. Technical Files
