14. Octopus 5mm LED Brick - Yellow(EF04066)#

14.1. Introduction#

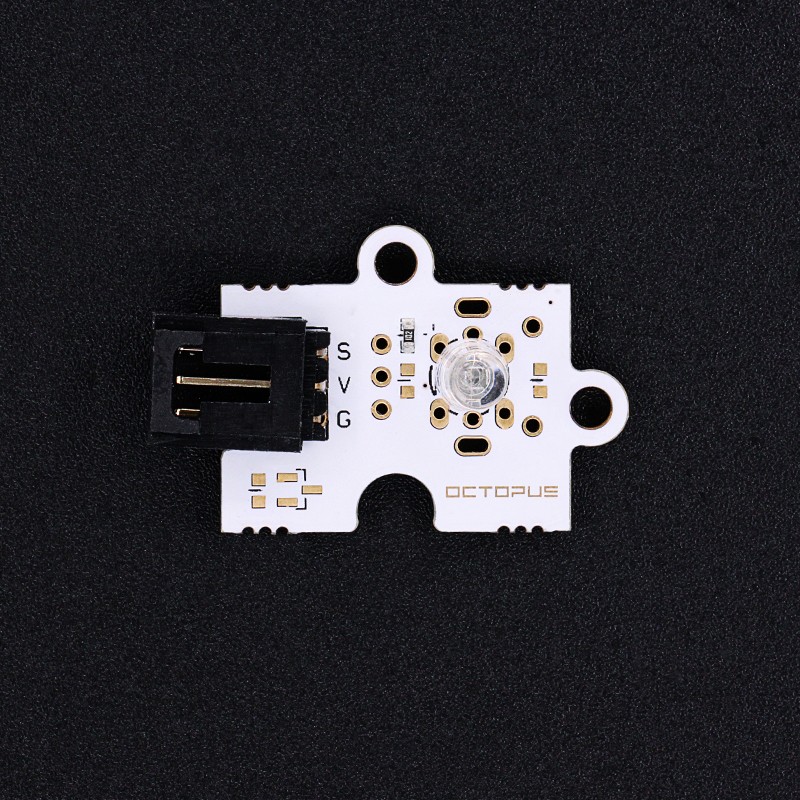

Octopus 5mmLED light Brick can be used in the interaction with the light works with micro:bit/Arduino.

../../_images/FJgPKrD.jpg

14.2. Characteristics#


  • The 3-pins ports is easy to plug and play.

14.3. Specifications#


Item Parameter
SKU EF04066
Power Supply 3.3V~5V
weight 5g

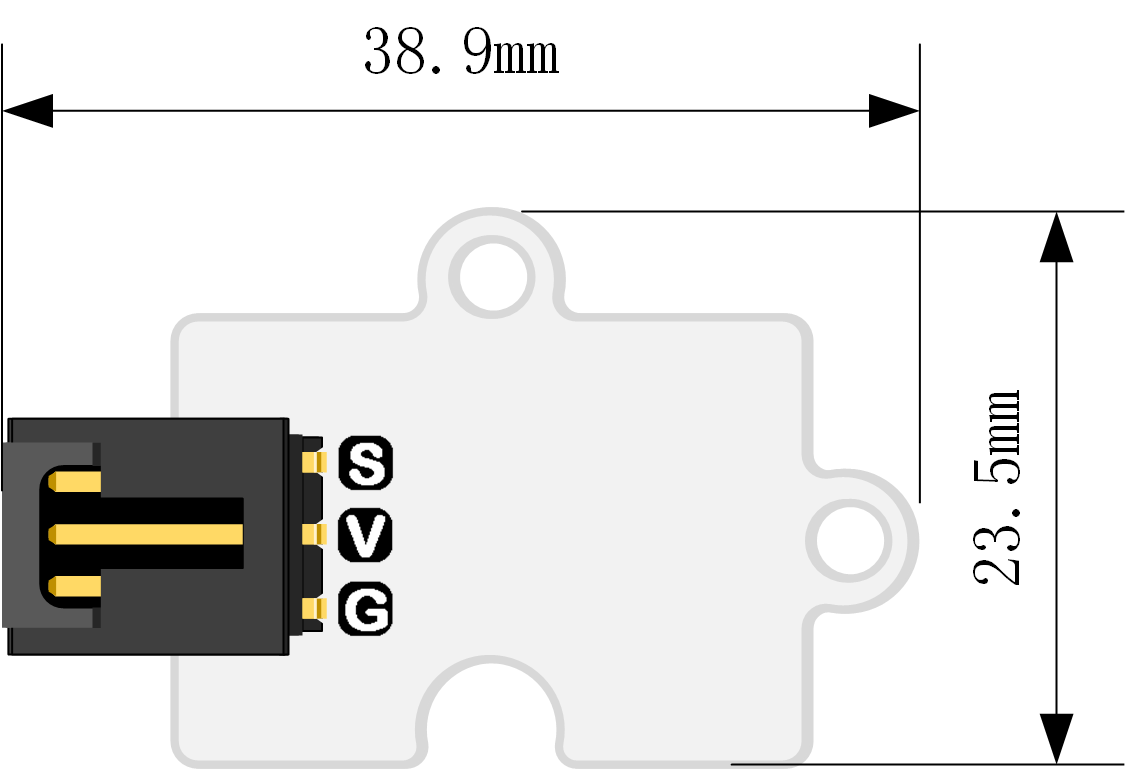

14.4. Outlook and Dimensions#


../../_images/D93Zvpm.png

14.5. Quick to Start#

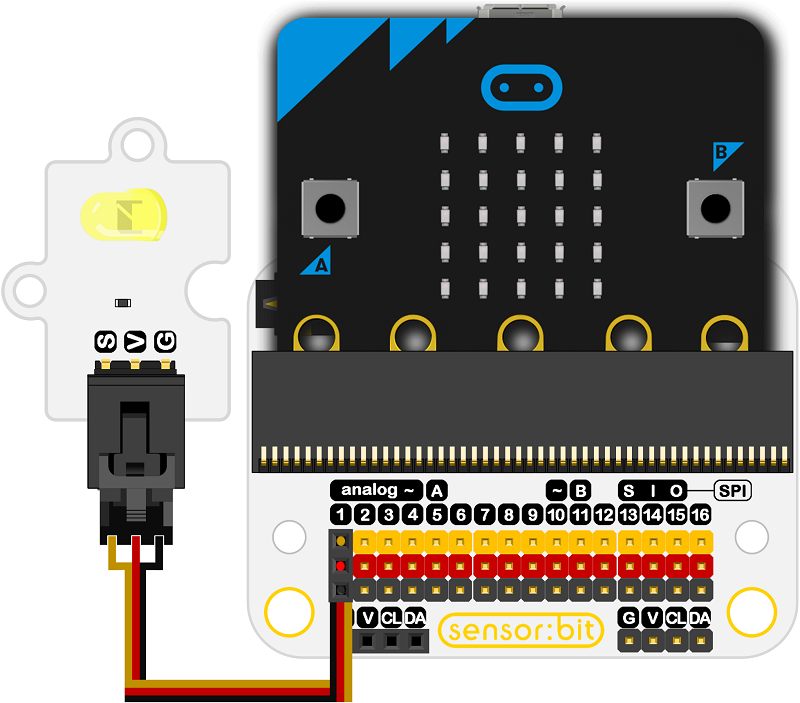

Materials used and connection diagram#

Connect to the P1 port as the picture shows

Take sensor:bit for example

../../_images/fDm8yzB.png

Add Package#

Click “Advanced”in the choice of the MakeCode to find more choices.

../../_images/smtcNoB1.png

Click “Extensions”, search “oled”in the dialog box and then download the “oled-ssd1306”. ../../_images/VGSLRXB.png

Program as the picture shows#

Digital write pin P0 to 1 and 0 one second later.

../../_images/AAzv9pn.png

Reference#

Links:https://makecode.microbit.org/_J82V5PgzghKR

You can also download the links below:

Result#

  • LED flashes each second.

14.6. Relevant Cases#


14.7. Technique Files#
