41. MP3 Module

41.1. Introduction

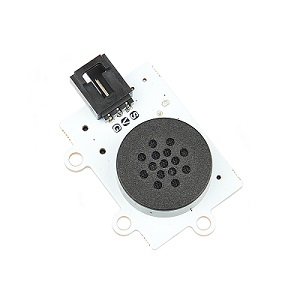

It is able to play the music.

../../_images/04104_01.png

41.2. Characteristic


  • Designed with RJ11 ports and easy to plug.

41.3. Specification


Item Parameter
SKU EF04104
Connection 3P wire
Connection Type Digital input
Working Voltage 3.3V
Core IC YX6300

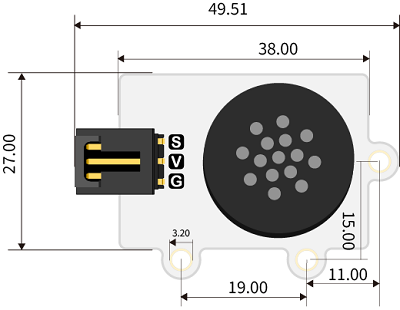

41.4. Outlook and Dimension


../../_images/04104_02.png

41.5. Quick to Start

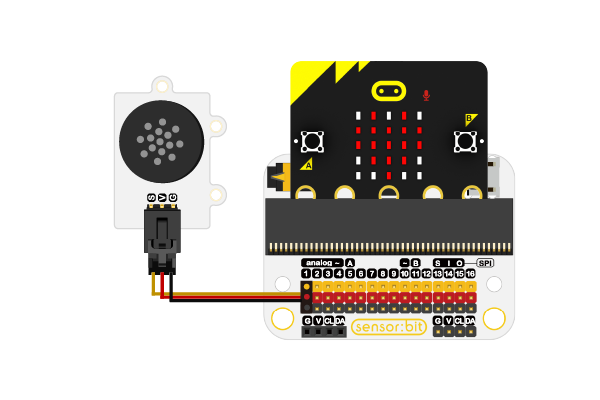

Materials required and connection diagram


  • Connect the MP3 module to P1 port on sensor:bit.

../../_images/04104_03.png

41.6. MakeCode Program


Step 1

Click “Advanced” in the drawer of the MakeCode to see more choices.

../../_images/smtcNoB2.png

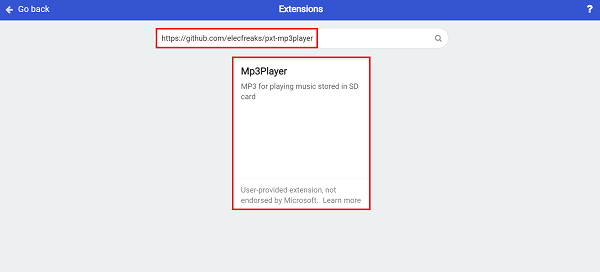

We need to add a package for programming. Click “Extensions” in the bottom of the drawer and search with “PlanetX” in the dialogue box to download it.

../../_images/04104_05.png

Note: If you met a tip indicating that the codebase will be deleted due to incompatibility, you may continue as the tips say or build a new project in the menu.

Step 2

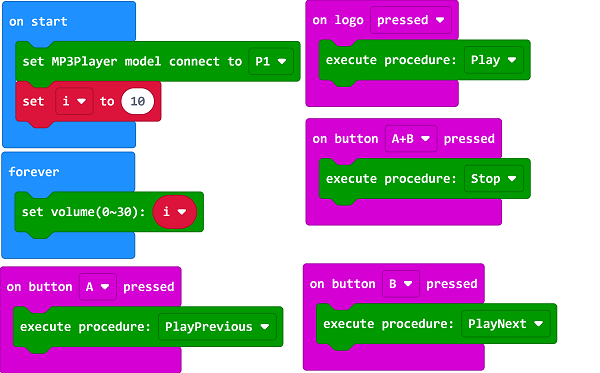

Code as below

../../_images/04104_06.png

Result

  • The MP3 module is controlled by the microbit.

Attention

Physical copy sequence, the first copy is 1. The name of the file can be left unchanged, and the file name cannot be specified separately.

The name of the file folder must be 2 digits(01~99), such as: 01.

The name of the MP3 file must include 3 digits(001~999), such as: 002~Palace.MP3.
