6. Octopus Tilt Sensor

6.1. Introduction

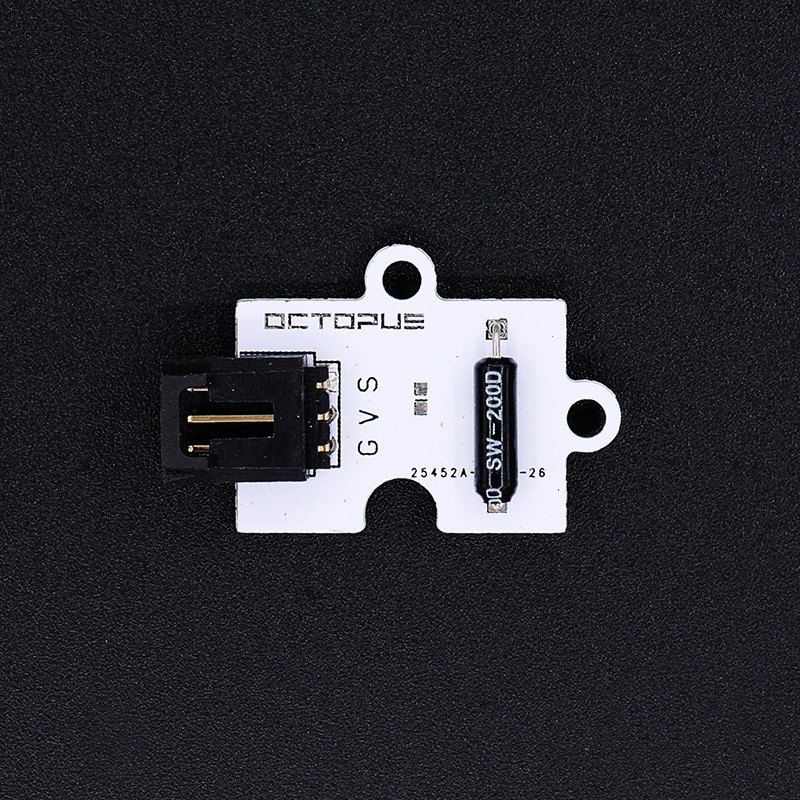

  • The Tilt sensor is to measure the levelness of the object based on the tilt switch.

  • ../../_images/PkfGPNo.jpg

6.2. Characteristics


  • The 3-pins ports is easy to plug and play.

  • It can work with micro:bit in 3V.

6.3. Specifications


Item | Parameter :-: | :-: SKU|EF04001 Working Voltage|DC 3.0V Power Input|3v-5v Connector Type|Digital Pins Definition|1-Signal 2-VCC 3-GND Response|Quick to response with high sensitivity Circuit|Simple Stability|Stable and durable

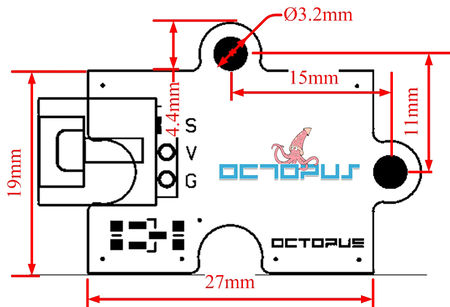

6.4. Outlook and Dimensions


../../_images/MOM6IH7.jpg

6.5. Quick to Start

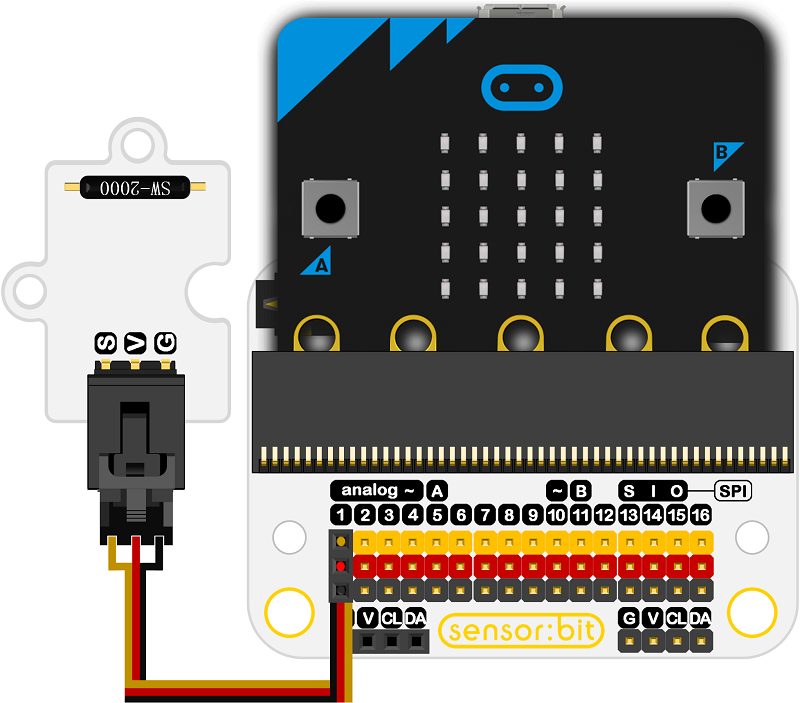

Connection diagram

  • Connect to P1 port as the picture shows.

Take sensor:bit for example

../../_images/z0jNU2D.png

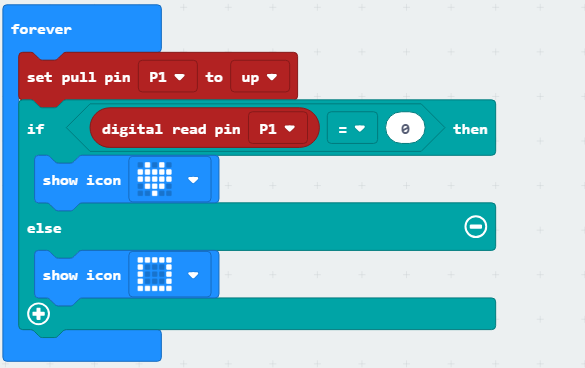

Program as the picture shows

  • Set the P1 port to a higher level to initialize the module.

  • If the detected value is 0 and the the digital read pins is 0, the icon is shown on the screen.

  • Or it shows a box.

../../_images/tVmLSAJ.png

Reference

Links:https://makecode.microbit.org/_WMwRtRXFe2tw

You can also download it directly below:

---

Result

  • When the tilt angel is changed, the icon or rectangle is shown on the micro:bit.

6.6. Relevant Cases


6.7. Technique Files
