8. Octopus Active Buzzer Brick OBAB02

8.1. Introduction

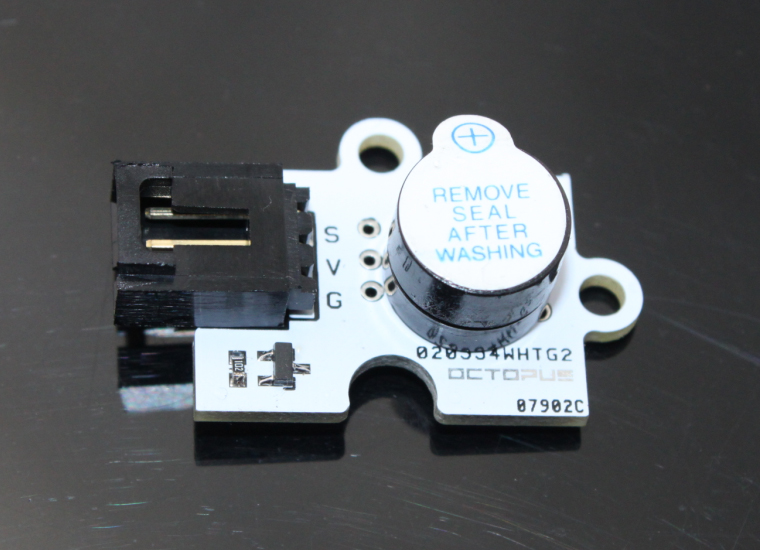

Octopus Active Buzzer Brick is based on an active buzzer with a constant volume but can not be controlled by PWM.

../../_images/Gs5XBx1.jpg

8.2. Characteristics


  • The 3-pins ports is easy to plug and play.

8.3. Specifications


Item | Parameter :-: | :-: SKU|EF04030 Power Supply|3V-5V Connector Type |Analog Pins Definition |S-Sigal V-VCC G-GND Detection Scope|Large Response|Quick Sensitivity|High Circuit|Simple Service Life|Long(Stable and durable) Size|19x27mm

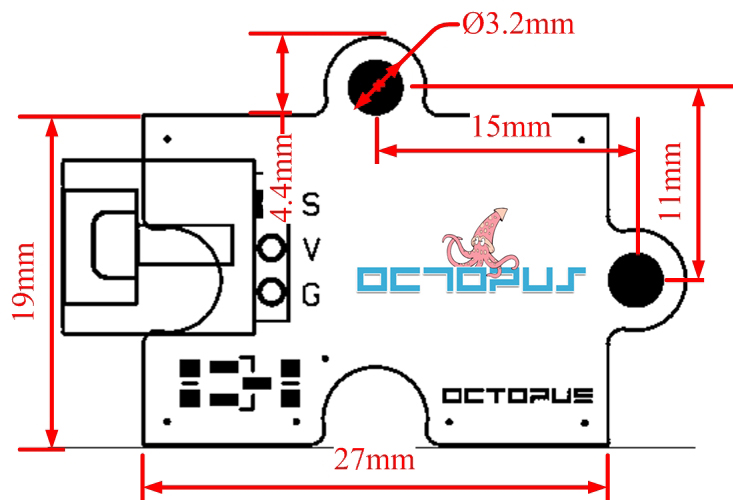

8.4. Outlook and Dimensions


../../_images/GV8xv7y.jpg

8.5. Quick to Start

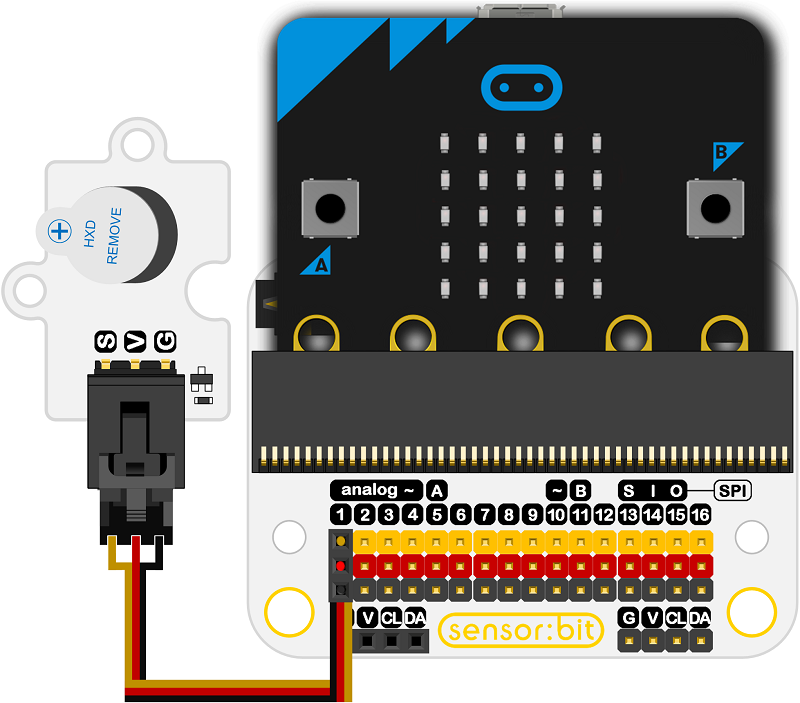

Materials used and connection diagram

  • Connect to the P1 port as the picture shows

    Take sensor:bit for example

../../_images/r3NAMg8.png

Add Package

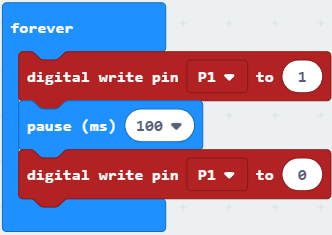

Program as the picture shows

../../_images/CjlZhvP.png

Reference

Links: https://makecode.microbit.org/_3KMCFREjmbYx

You can also download the links below:

---

Result

  • The buzzer gives off a continuous beeping sound.

8.6. Relevant Cases


8.7. Technique Files
