3. BME280 Air Pressure Sensor

3.1. Introduction


Octopus BME280 Pressure Sensor is an electric brick integrating temperature sensor, air pressure sensor and humidity sensor onboard. We can use it to calculate the altitude according to the measured air pressure.

3.2. Characteristics


  • Low power consumption and small size.

  • 3mm standard positioning hole.

  • 3.3v power supply

  • Support I2C and SPI protocol.

3.3. Parameter


Item | Parameter :-: | :-: Name|Octopus BME280 Pressure Sensor Version|V1.0 SKU| EF04087 Working Voltage|DC 1.2V-3.6V Connector Type|IIC(mode 3.4MHz)or SPI(3-wire or 4-wire mode10MHz) Relative Humidity Range|0%~100% , response time:over 1s Humidity Tolerance|±2%;Humidity Hysteresis:±1%;Resolution: 0.8% Air Pressure Measure Range|300~1100hPa Air Pressure Tolerance|±1hPa 分辨率0.18Pa Temperature Measure Range|0℃~65℃ Temperature Tolerqance|±0.5℃ Max:±1℃;Resolution: 0.1℃ Size|31 x 23 mm

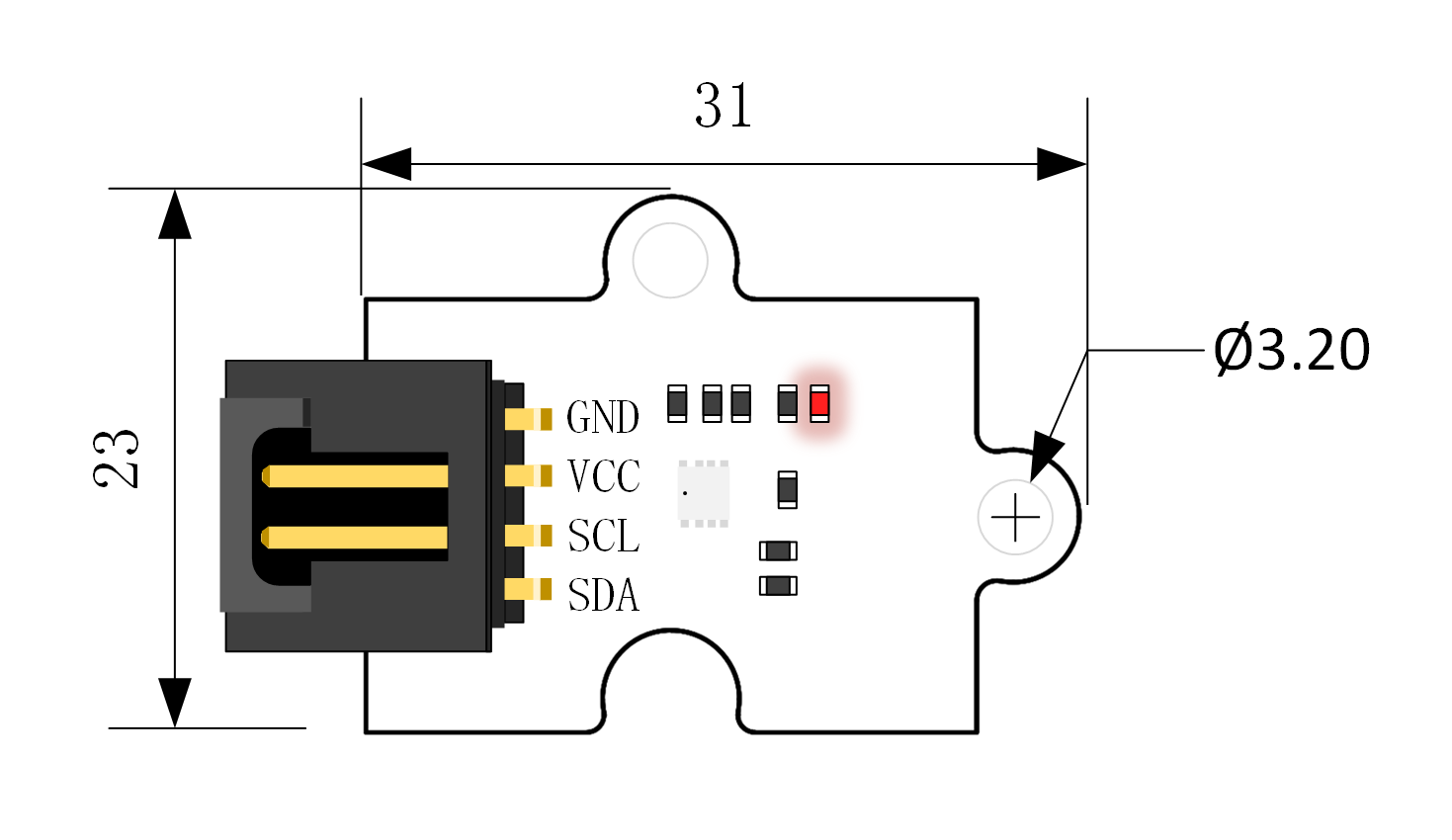

Outlook and Dimensions

../../_images/ZCHyqrg.png

3.4. Quick to Start


Hardware Connection

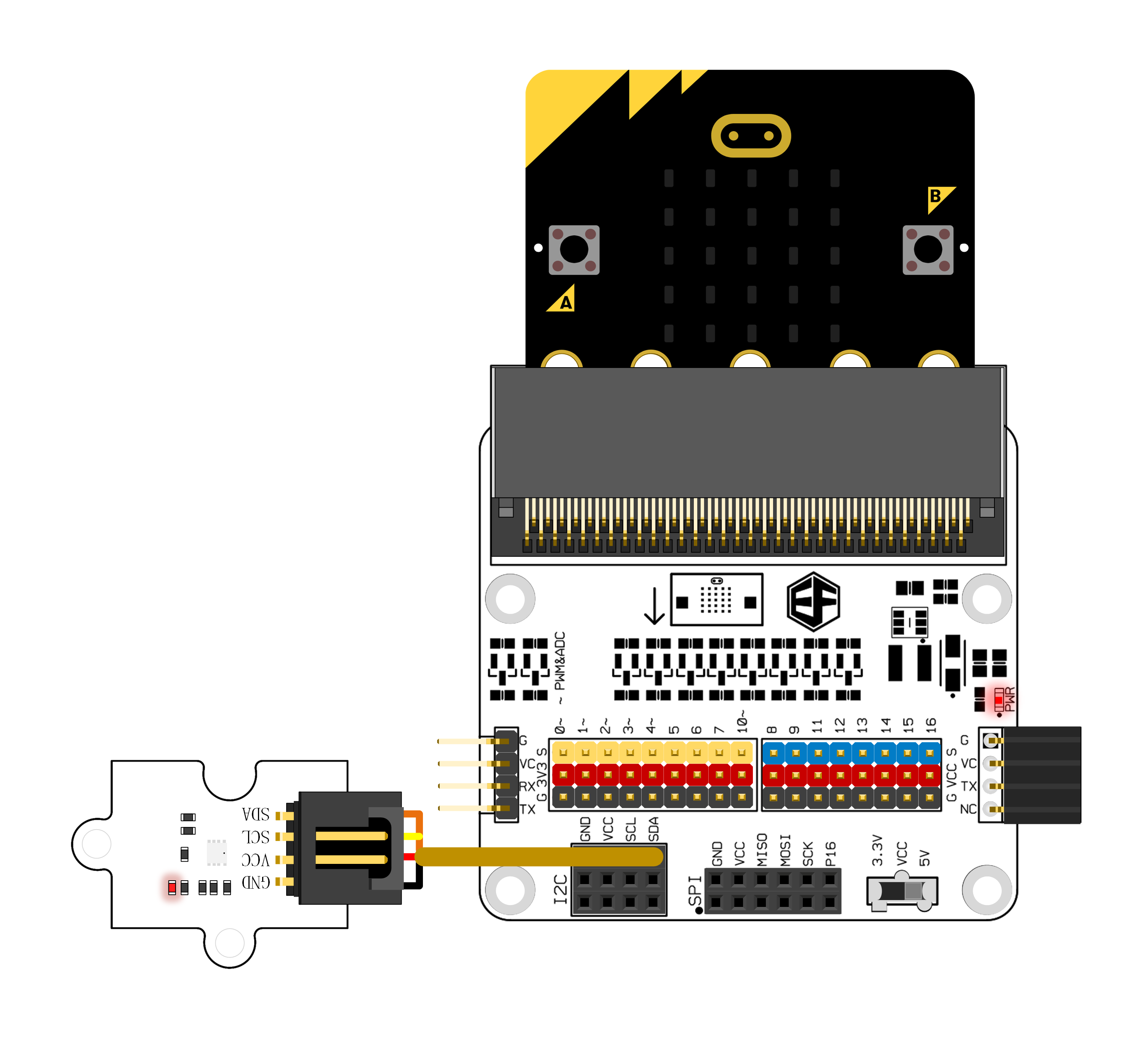

Connect the sensor to I2C connector on octopus:bit using a jumper cable. Insert micro:bit into the octopus:bit.

../../_images/TGFmmNb.png

Software Programming

Purpose

Test the air pressure value and show it on the micro:bit.

Add Package

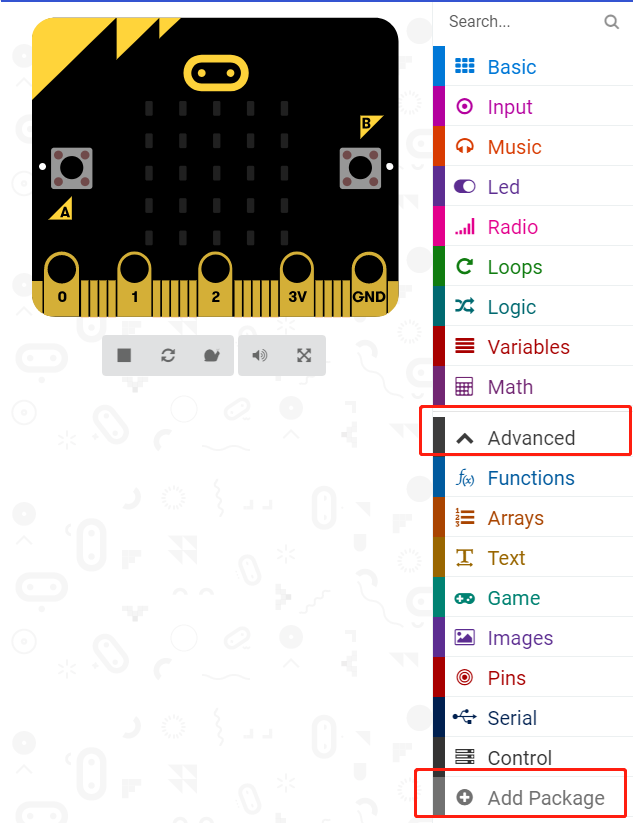

Click “Advanced”in the choice of the MakeCode to find more choices.

../../_images/LjMR5IU5.png

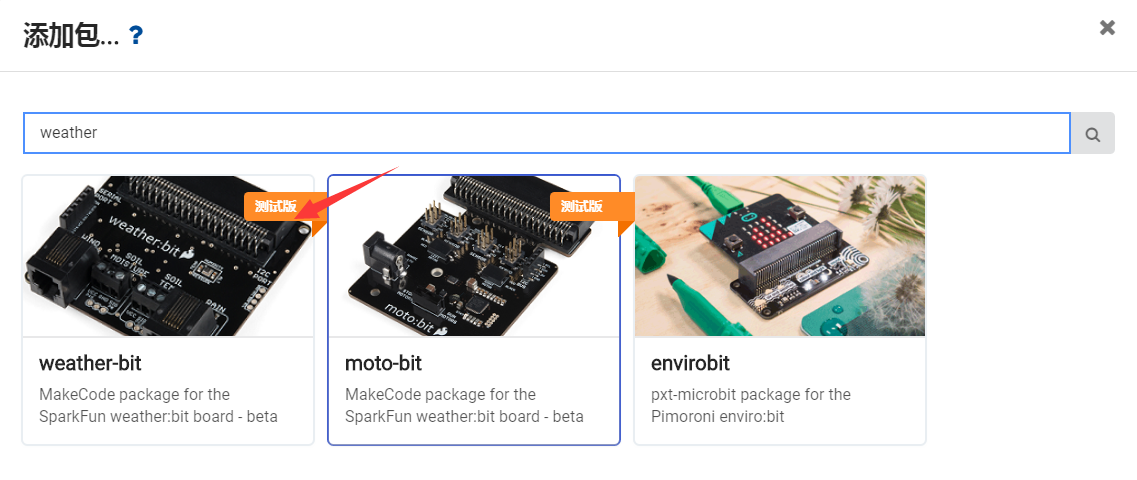

Click “Add Package”, search “weather”in the dialog box and then download weather-bit. ../../_images/2pzeQRn.png

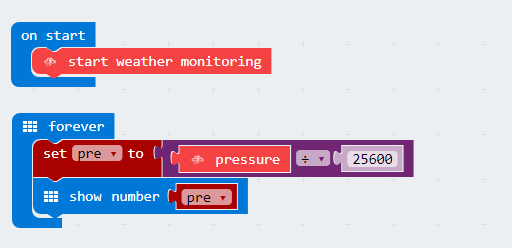

Program as the picture shows and read the air pressure value:
../../_images/uzGqxBD.png

Result

The air pressure value is scrolling on the micro:bit, the unit is MPa.
