2. Case 21: Color Recognition with TPBot#

2.1. Purpose#


  • Using Smart AI Lens to recognize the color and display it on the head lights of TPBot.

2.2. Materials required#


../../../_images/TPBot_tianpeng_case_20_01.png

../../../_images/TPBot_tianpeng_case_20_02.png

2.3. Hardware Connections#


Connect the AI Lens to the IIC port on TPBot.

../../../_images/TPBot_tianpeng_case_20_03.png

2.4. Software#


MicroSoft MakeCode

2.5. MakeCode Programming#


  • Click “Advanced” to see more choices in the MakeCode drawer.

../../../_images/TPBot_tianpeng_case_20_04.png

  • We need to add a package for programming. Click “Extensions” in the bottom of the drawer and seach with “tpbot” in the dialogue box to download it.

../../../_images/TPBot_tianpeng_case_20_05.png

  • We need to add a package for programming the AI Lens kit. Click “Extensions” in the bottom of the drawer and seach with https://github.com/elecfreaks/pxt-PlanetX-AI in the dialogue box to download it.

../../../_images/TPBot_tianpeng_case_20_06.png

Sample Code#

  • Initialize the AI lens kit in the On start brick and switch its function to color recognition, then show an icon.

../../../_images/TPBot_tianpeng_case_21_07.png

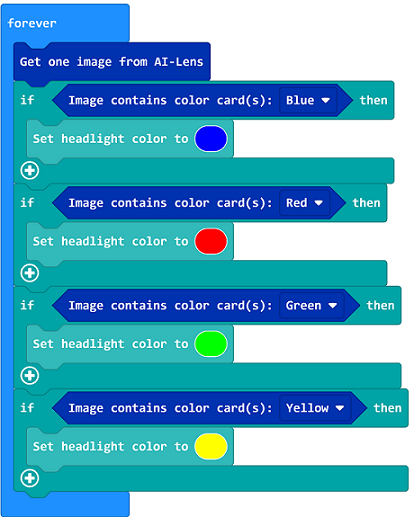

  • In forever brick, get an image from the AI lens and adjust TPBot’s headlights’ color by the color recognized in the lens.

../../../_images/TPBot_tianpeng_case_21_08.png

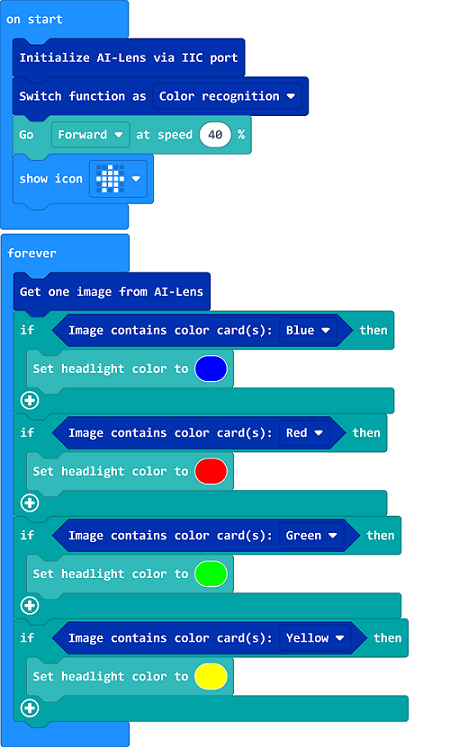

  • Complete Code:

../../../_images/TPBot_tianpeng_case_21_09.png

Reference#

2.6. Python Programming#


Add TPBot extension: https://www.elecfreaks.com/learn-cn/microbitKit/TPbot_tianpeng/TPbot-python.html

Add AI Lens extension: https://www.elecfreaks.com/learn-cn/microbitplanetX/ai/Plant-X-EF05035-python.html

Code#

from microbit import *
from AILens import *
from TPBot import *

tp = TPBOT()
ai = AILENS()
# Set the function of AI Lens in color recognition
ai.switch_function(Color)
tp.set_motors_speed(40,40)
while True:
    #  Get an image
    ai.get_image()
    if (ai.get_color_type() == "Blue"):
        tp.set_car_light(0, 0, 255)
        tp.set_car_light(0, 0, 255)
    if (ai.get_color_type() == "Red"):
        tp.set_car_light(255, 0, 0)
        tp.set_car_light(255, 0, 0)
    if (ai.get_color_type() == "Green"):
        tp.set_car_light(0, 255, 0)
        tp.set_car_light(0, 255, 0)
    if (ai.get_color_type() == "Yellow"):
        tp.set_car_light(255, 255, 0)
        tp.set_car_light(255, 255, 0)

Result#

The TPBot drives forward, If the blue card is recognized, the TPBot lights on in blue; If the red card is recognized, the TPBot lights on in red; If the green card is recognized, the TPBot lights on in green; If the yellow card is recognized, the TPBot lights on in yellow.

2.7. Exploration#


2.8. FAQ#


Q: TPBot doesn’t work with the sample code.
A: It is probably due to the lack of battery power, please try adding the speed of the TPBot or replacing with new batteries.
Q: The AI Lens is not working, and it does not go to the function page with the sample code.
A: Please try replacing with new batteries.
